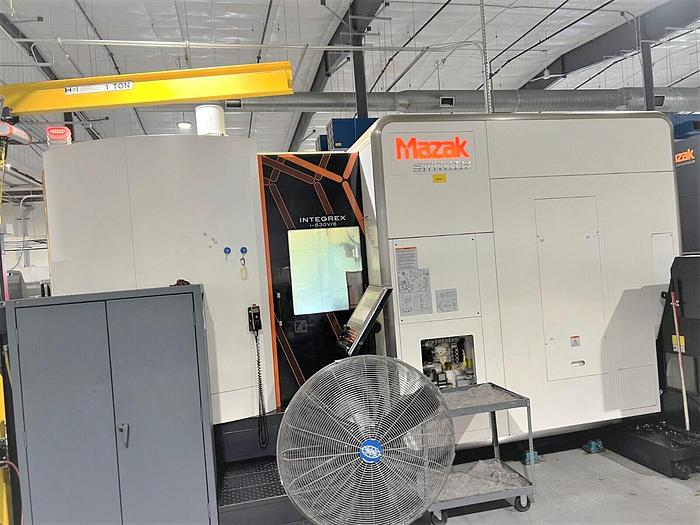

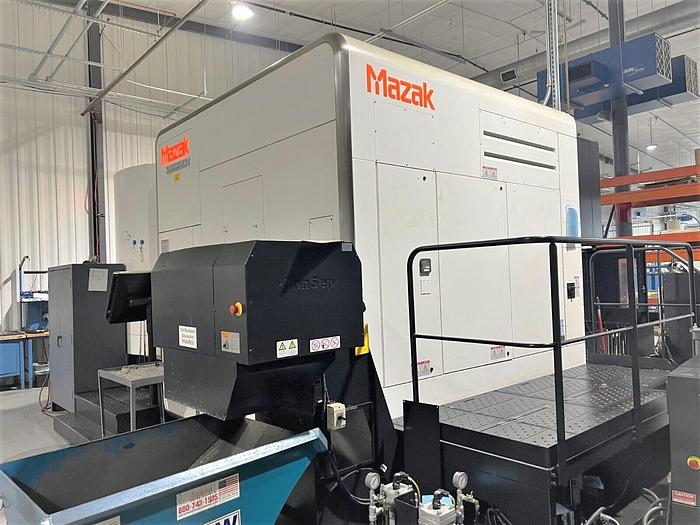

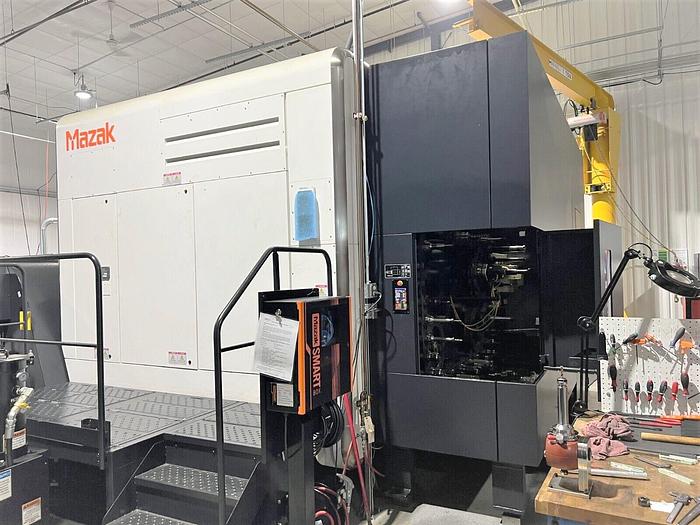

2014 Mazak Integrex i-630V/6

2014 Mazak Integrex i-630V/6
$699,500 (USD)
Wisconsin
Description
2 Pallet Changer System

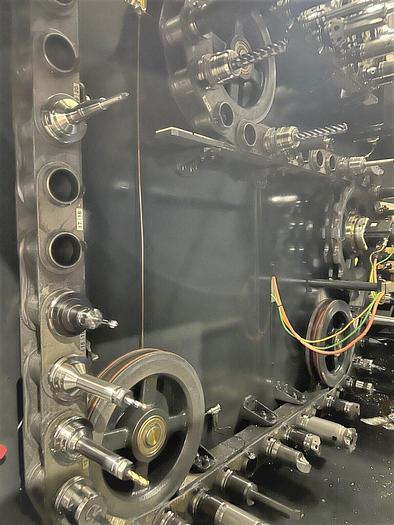

80 Station Tool Changer

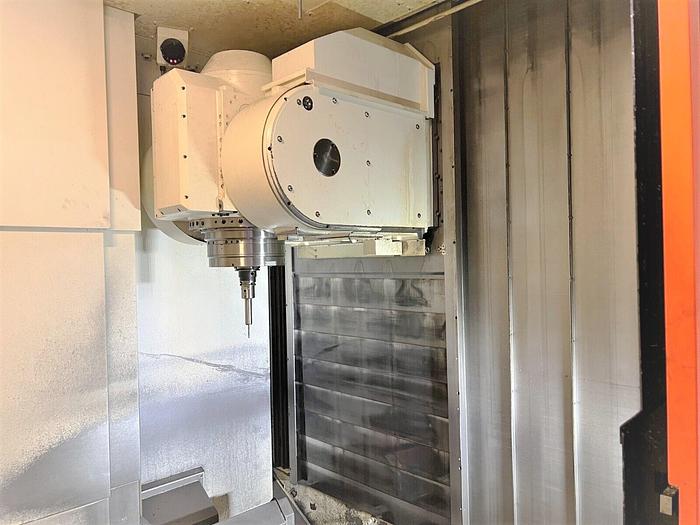

5,000 RPM High Torque Milling Spindle
Chip Conveyor - Rear Discharge

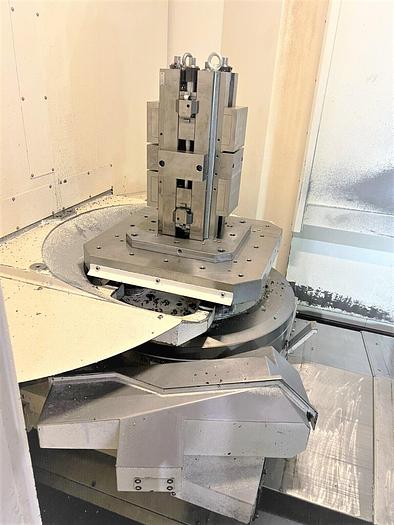

(1) 630 mm Square Location Bore Tapped Pallet

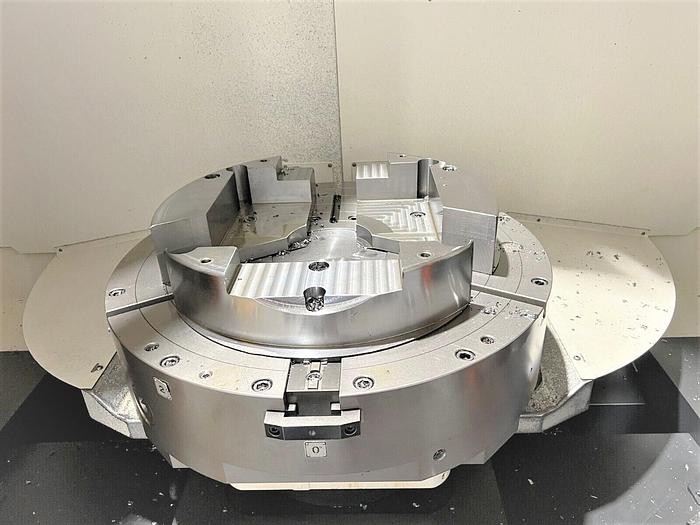

(2) 800 mm Diameter Pallets with 3 Jaw Scroll Chuck (31.52")
Automatic Tool Eye
NC4 Laser Rotary Tool Length Measurement Probe with Air (without Macros)
RMP600 Work Measuring Probe System

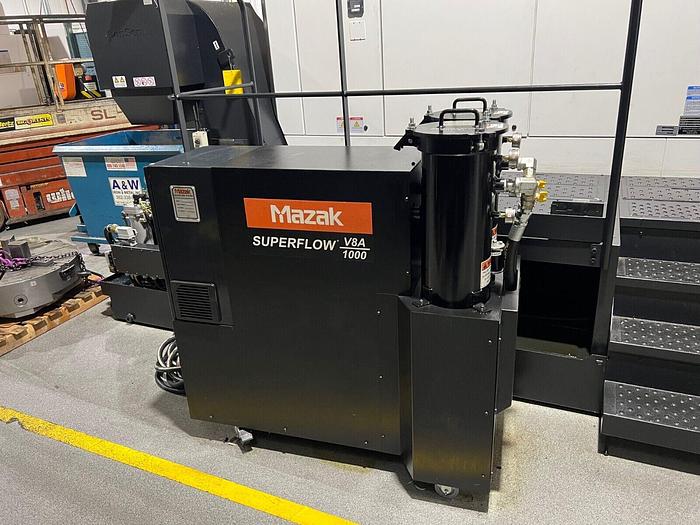

Mazak SuperFlow V8A 1000 PSI Variable High Pressure Coolant System
Work Setting Error Compensation (G54.4)
EIA/ISO Dynamic Compensation 2
Hobbing Function (without override, without tooling)
Losma G2000 Mist Collector
32 MB Maximum Program Size
Overload Detection System
Workpiece Air Blast
Quick Coolant Stop System
Niagara Flood Coolant through Work Area Top Cover
Hand Held Coolant Wash Down at Pallet Changer
Spindle Shaper Type Operation
Smooth Engraving Function
Re-Theading Function
Thread Start Point Compensation
MT Connect Adapter Software
SB4MTS Smartbox Package with Sensor Prep
Smartbox Stand
370 Gallon Coolant System
3 Color Machine Signal Tower
USB Port Interface
LAN Port Interface
**Installed New in 2018
Specifications
Manufacturer | Mazak |
Model | Integrex i-630V/6 |
Year | 2014 |
Condition | Used |
Stock Number | 118158 |
Table Size | Either 24.8" Square or 31.5" Diameter |
Maximum Machining Diameter | 41.34" |
Maximum Machining Length | 39.37" |
Maximum Weight on Table | 3,858 lbs. (inclusive of pallet) |
X-Axis Travel | 56.1" |
Y-Axis Travel | 41.34" |
Z-Axis Travel | 41.34" |
B-Axis Tilt Movement | 150 Degrees (-30 Degrees to +120 Degrees) |
C-Axis Rotation | 360 Degrees in 0.0001 Resoution |
Table Rotation Speed of C Axis | 550 RPM |
Table Motor | 50 HP |
Spindle Taper of Milling Tools | CAT 50 |
Spindle Speeds of Mill Tools | 5,000 RPM |
Spindle Motor of Mill Tools | 60 HP |
Number of Tool Positions | 80 Station Tool Changer |
Rapid Traverse Rates | 2047 IPM |
Machine Dimensions | 219" x 304" x 148" |
Machine Weight | 77,200 lbs. |
