2007 Haas VF3SS
No longer available

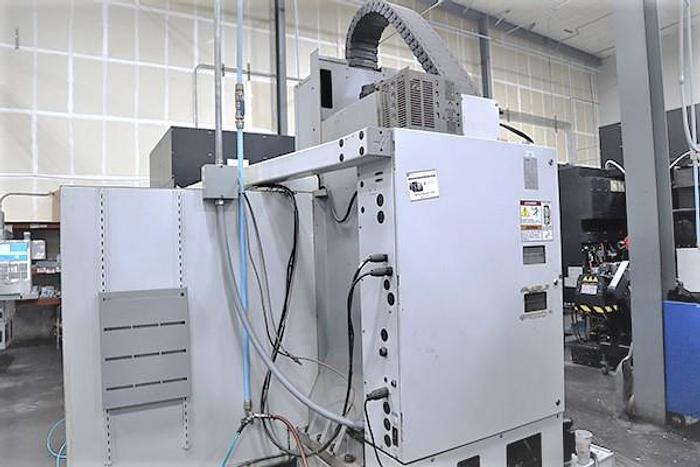

2007 Haas VF3SS
$59,950 (USD)
Kansas
Description
24+1 Position Side Mounted Tool Changer
4th Axis Drive & Wiring

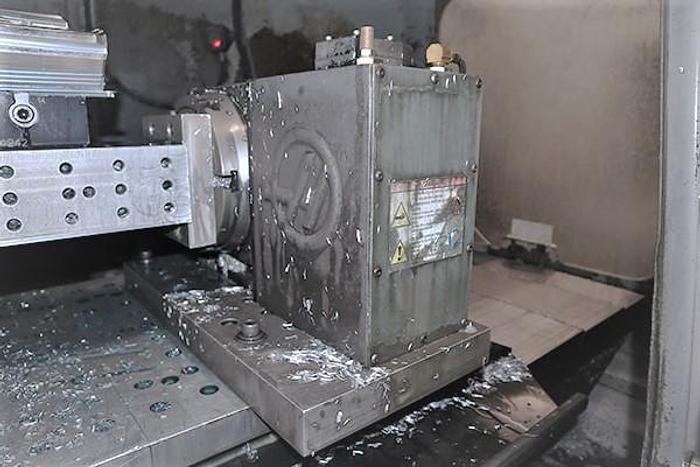

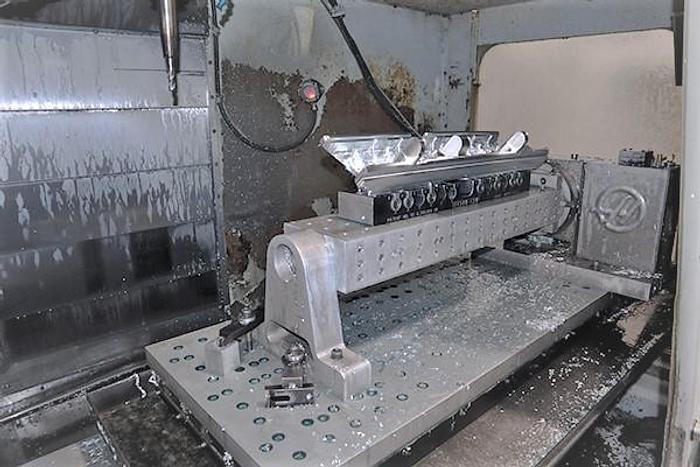

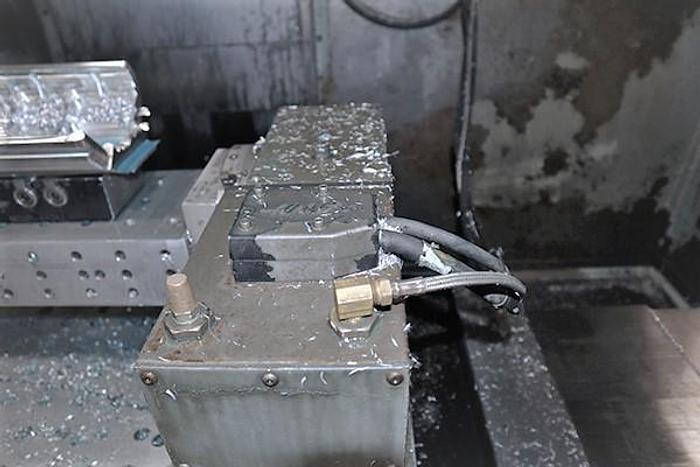

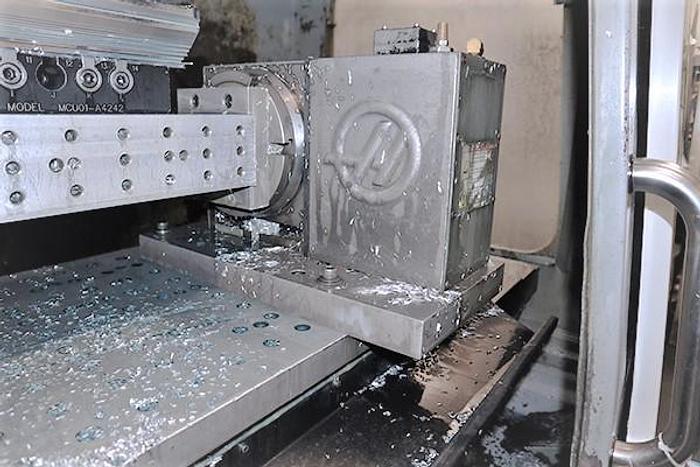

Haas 4th Axis Rotary Table
Coolant Through the Spindle
Prepped for Haas Wireless Probing Package (includes laser, but does not include tool probe or spindle probe)
Auger Style Chip Conveyor
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
High Speed Machining
Remote Jog Handle
Rigid Tapping

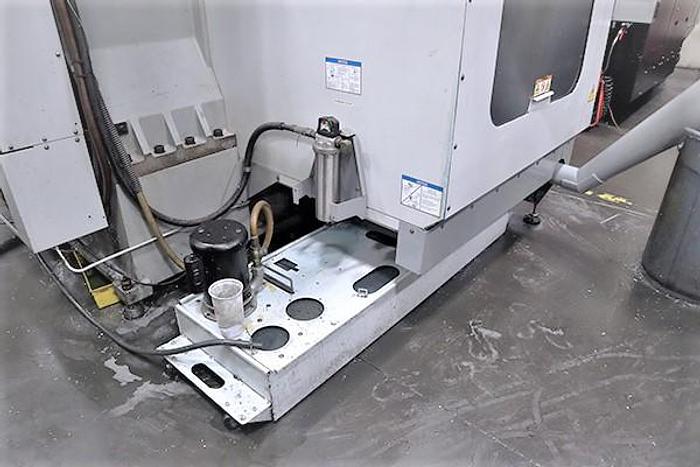

Coolant Tank with Pump

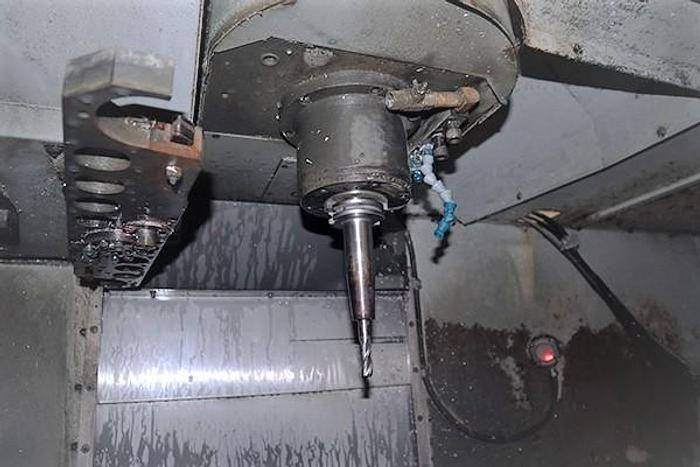

Inline Direct Drive 12,000 RPM Spindle
Wired 208/240V Electrics
RS 232C Port Interface for DNC Operation
All Available Manuals
Wired 208/230V Electrics

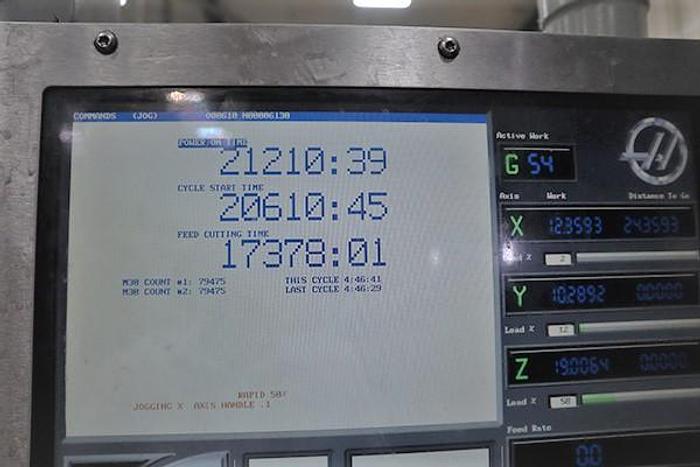

Feed Cutting Hours 17,378
*Used Exclusively on Aluminum in Aerospace Industry
Specifications
| Manufacturer | Haas |
| Model | VF3SS |
| Year | 2007 |
| Condition | Used |
| Stock Number | 118157 |

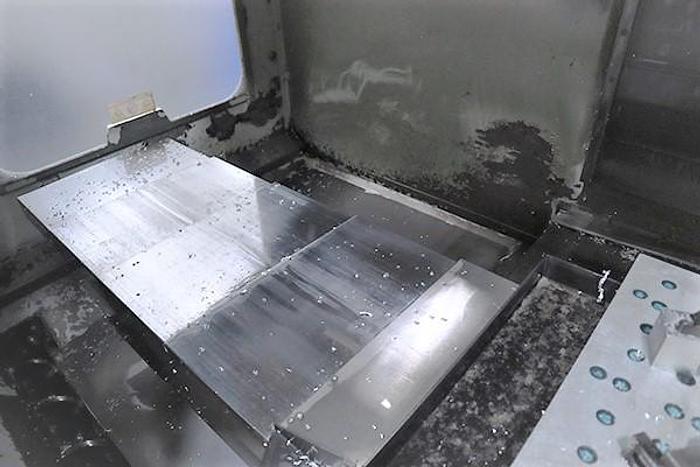

| Table size | 48" x 18" |
| Max table load | 1,750 lbs |
| X axis travel | 40" |
| Y axis travel | 20" |
| Z axis travel | 25" |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4.2" - 29.2" |
| Number of tool positions | 24 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 122" x 98" x 98.5" |
| Machine weight (approximately) | 12,500 lbs. |
