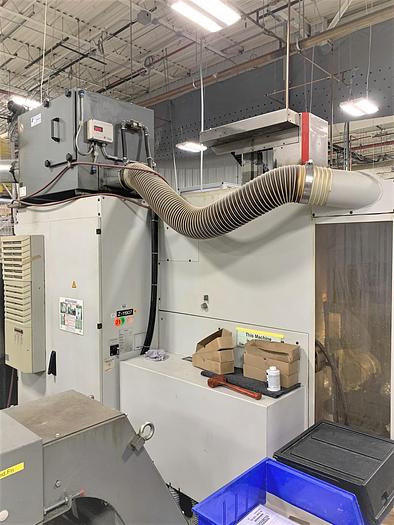

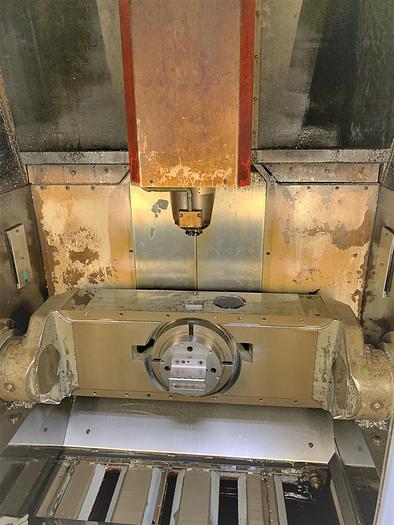

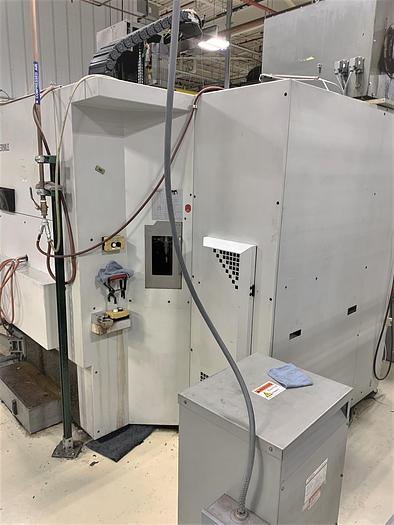

2001 Hermle C800U
No longer available
2001 Hermle C800U
$49,500 (USD)
Ohio
Description
Simultaneous 5-Axis
11.03" Platter with Trunnion Style 5 Axis Design
16,000 RPM Spindle with SK40 Taper
Coolant Through the Spindle
Prepped for Renishaw MP10 Probe
Tool Breakage Monitoring
RFID Tool Identification
Chip Conveyor
Remote Jog Handle
Air Blast
Oil Mist Extraction
Internal Control Option needed for Through Spindle Coolant
Spindle Chiller Unit
Coolant System with Tank & Pump
RS 232 Port Interface
3 Color Machine Status Condition Lights
Wired at 400V Electrics
Specifications
| Manufacturer | Hermle |
| Model | C800U |
| Year | 2001 |
| Condition | Used |
| Stock Number | 118151 |
| Machine Control | Heidenhain TNC430 |
| Table Size | 11.03" Diameter Platter |
| Maximum Table Load | 220 lbs. |
| X-axis travel | 31.52" |
| Y-Axis Travel | 23.64" |
| Z-Axis Travel | 19.69" |
| A-Axis Travel | +/- 110 Degrees |
| C-Axis Rotation | 360,000 Degrees |
| Spindle Taper | SK 40 Taper |
| Spindle Speed | 16,000 rpm |
| Spindle Motor | 20 HP |
| Tool Magazine Capacity | 30 Station Tool Changer |
| Rapid Traverse Rates | 1379 IPM |
| Cutting Feedrates | 1182 IPM |
| Machine Dimensions LxWxH | 107" x 99" x 115.5" |
| Machine Weight | 18,700 lbs |
