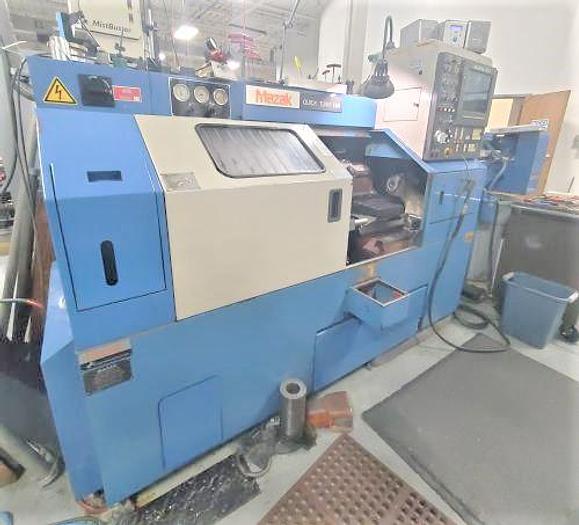

1992 Mazak QT15N
No longer available
1992 Mazak QT15N
$12,500 (USD)
Location:Minnesota
Description
Collet Chuck
12 Station Turret Option Chip Conveyor
Automatic Parts Catcher Programmable Tailstock

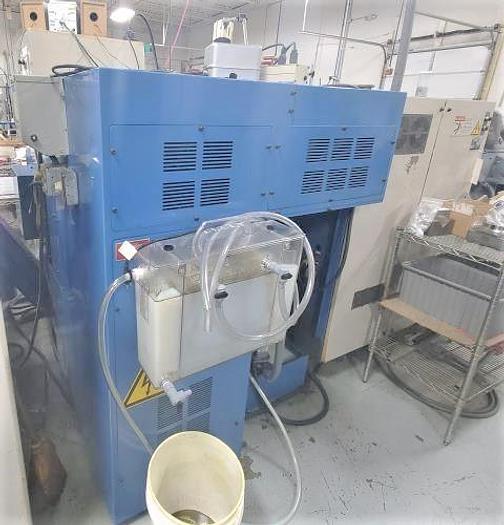

Automatic Tool Eye RS 232 Port Interface Multi Tap Transfomer Complete Coolant System with Tank & Pump
Color Graphics Control
Extra Programming Memory All Available Tooling All Available Manuals
Specifications
| Manufacturer | Mazak |
| Model | QT15N |
| Year | 1992 |
| Condition | Used |
| Stock Number | 118143 |
| Control | Mazatrol T32-2 Color Graphics Control |
| Maximum Swing over Bed | 17.32" |
| Maximum Swing Over Cross Slide | 11.81" |
| Maximum Cutting Length | 19.69" |
| Maximum Bar Capacity | 2.0" |
| X-Axis Travel | 7.09" |
| Z-Axis Travel | 20.08" |
| Spindle Nose / Spindle Bore | A2-6" / 2.44" |
| Spindle Speeds | 45 - 4,500 RPM |
| Spindle Motor | 20 HP |
| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates | 1180 IPM |
| Cutting Feedrates | 197 IPM |
| Tailstock Quill Diameter / Center | 3.15" / MT #4 |
| Machine Dimensions | 93" x 61" x 71" |
| Machine Weight | 9,300 lbs. |
