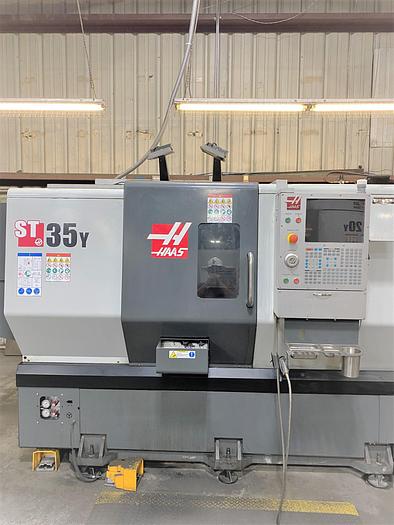

2020 Haas ST-35Y
No longer available
2020 Haas ST-35Y
$139,999 (USD)
Location:California
Description
C-Axis Spindle Rotation
Live Milling/Drilling Capability
Y-Axis Capability
6,000 RPM Rotary Tool Option
High Pressure Coolant
Parts Catcher
4" Bar Capacity
12" 3 Jaw Hydraulic Chuck
Chip Conveyor
Tailstock
Automatic Tool Presetter

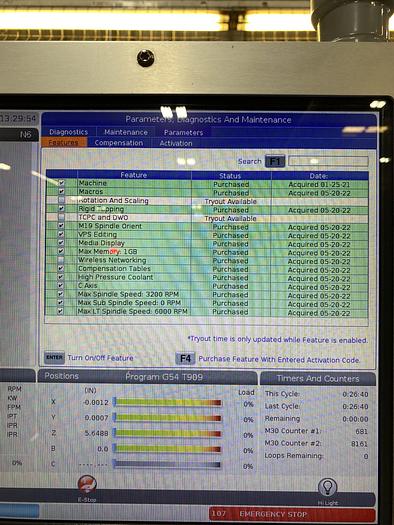

User Definable Macros
Rigid Tapping
M19 Spindle Orientation
VIsual Programming System Editing
1 GB Memory
Wireless Networking
Compensation Tables
15" Color LCD Monitor
All Available Tooling
All Available Manuals

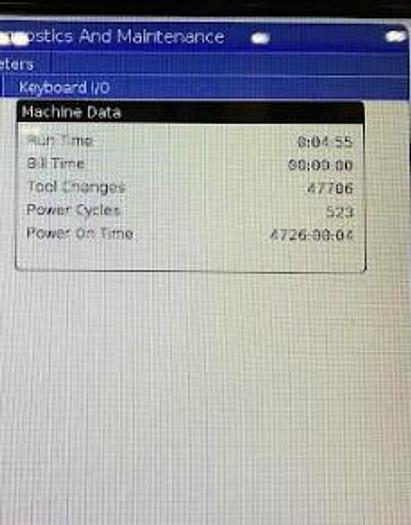

ONLY 4.55 Hour Run Time
Prices New as Equipped at $162,255, available immediately
Specifications
| Manufacturer | Haas |
| Model | ST-35Y |
| Year | 2020 |
| Condition | Used |
| Stock Number | 118140 |
| Chuck Size | 12" 3 Jaw Chuck |
| Maximum Swing | 31.75" |
| Maximum Swing Over Cross Slide | 20.75" |
| Distance Between Centers | 30" |
| Maximum Cutting Diameter | 18" |
| Maximum Cutting Length | 23" |
| X-axis travel | 12.5" |
| Y-Axis Travel | +/- 2" |
| Z-Axis Travel | 23" |
| Spindle Nose / Bore / Bar Capacity | A2-8" / 4.62" / 4" |
| Spindle Speed | 3,200 RPM |
| Spindle Motor | 40 HP |
| Milling Spindle Speed | 4,000 RPM |
| Milling Spindle Motor | 5 HP |

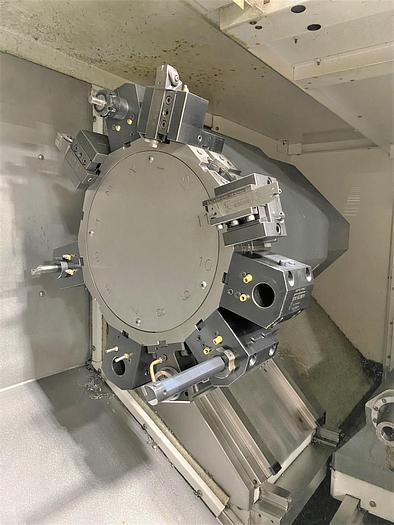

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X, Y / Z | 472 IPM / 945 IPM |
| Machine Dimensions LxWxH | 178"x90"x83" |
| Machine Weight | 14,000 lbs |
