2001 Fadal VMC3016HT
No longer available
2001 Fadal VMC3016HT
$16,500 (USD)
Location:New York, NY
Description
Remanufactured in 2001
4th Axis Wiring (only, still needs drive board)
21 Station Tool Changer
10,000 RPM Spindle
Flood Coolant
Rigid Tapping
Chiller Unit
Boxed Ways 2 Speed Gearless Drive Spindle System RS 232 Port Interface
Coolant System with Tank & Pump

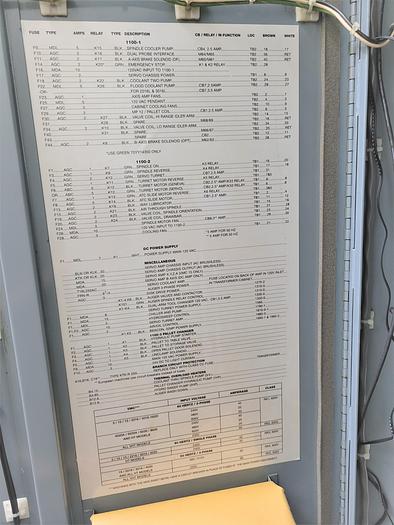

Wired 230/440 Volt Electrics
Specifications
| Manufacturer | Fadal |
| Model | VMC3016HT |
| Year | 2001 |
| Condition | Used |
| Stock Number | 118139 |
| Control | Fadal Multi Processor Control |

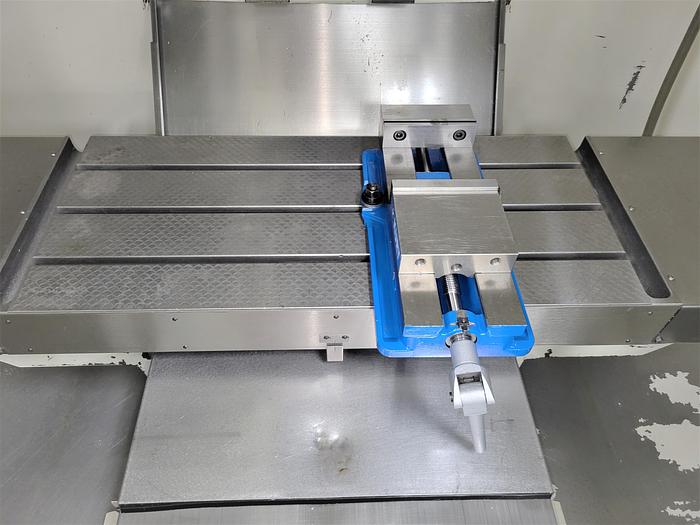

| Table Size | 39" x 16" |
| Maximum Table Load | 2,736 lbs. |
| X-Axis Travel | 30" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 20" |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 10,000 rpm |
| Spindle Motor | 22.5 HP |
| Tool Magazine Capacity | 21 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 4.5" / 15" / 15 lbs |
| Rapid Traverse Rates (X, Y, Z) | 900 ipm, 900 ipm, 700 ipm |
| Machine Dimensions LxWxH | 98" x 77" x 103" |
| Machine Weight | 8,550 lbs. |
