2014 Doosan Puma 2600LMS
No longer available
2014 Doosan Puma 2600LMS
$135,000 (USD)
Location:Ontario, Canada
Description
Full C Axis Spindle Rotation
Live Milling/Drilling Capability Subspindle 10" 3 Jaw Hydraulic Chuck on Main Spindle
8" 3 Jaw Hydraulic Chuck on Subspindle
Tool Presetter
Chip Conveyor
Long Bed Design Option
PCMCIA Card Interface RS 232 Port Interface Boxed Ways All Available Static Tooling

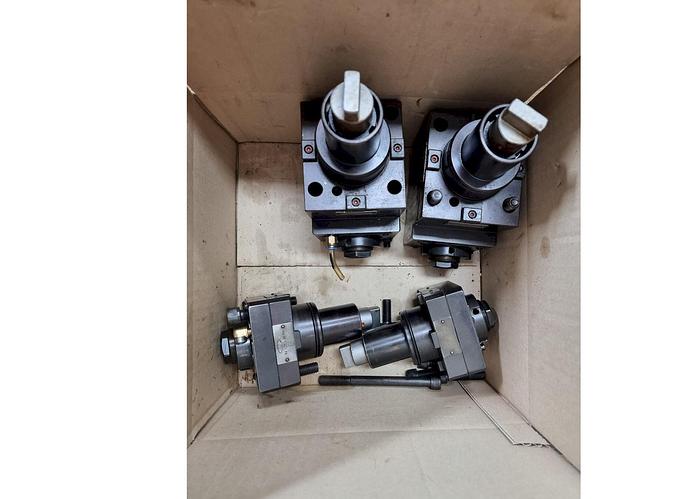

(6) Live Toolholders with (3) Axial and (3) Radial
3 Color Machine Status Condition Lights
6,114 Run Time Hours
4,178 Cutting Hours
Specifications
| Manufacturer | Doosan |
| Model | Puma 2600LMS |
| Year | 2014 |
| Condition | Used |
| Stock Number | 118138 |

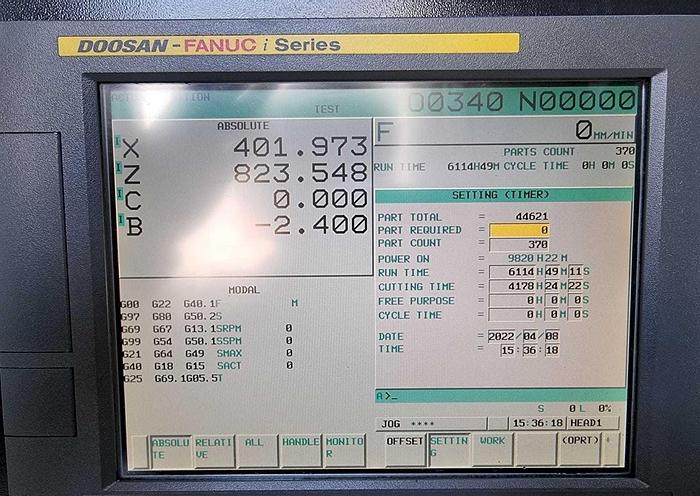

| Control | Fanuc 0i Series |

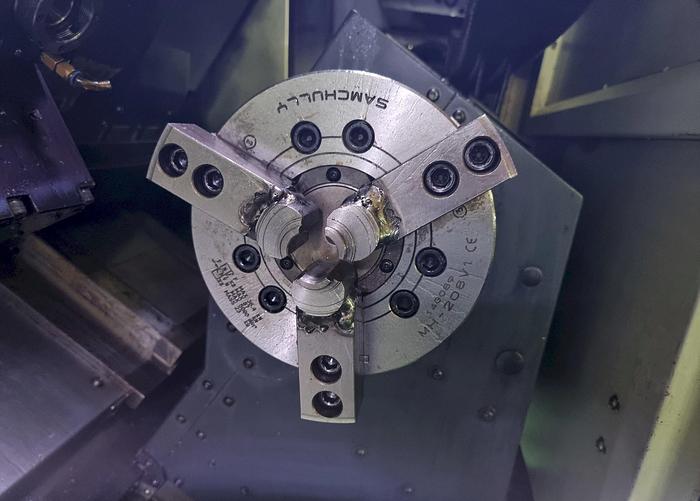

| Chuck Sizes Main / Subspindle | 10" / 8" Hydraulic 3-Jaw |
| Maximum Swing over Bed | 30.7" |
| Maximum Cutting Diameter | 14.8" |
| Maximum Machining Length | 50.4" |
| Maximum Bar Capacity | 3.0" |
| X-Axis Travel | 10.2" |
| Z-Axis Travel | 53.1" |
| B-Axis Travel (Subspindle) | 53.1" |
| C Axis Spindle Rotation | .001 Degree |
| Spindle Nose / Spindle Bore | A2-8" / 3.3" |
| Spindle Speeds - Main | 3,500 RPM |
| Spindle Motor - Main | 30 HP |
| Subspindle Nose | A2-5" |
| Subspindle Spindle Speed / Motor | 4,500 RPM / 11 HP |
| Rotary Tool Speed / Rotary Motor | 5,000 RPM / 7.5 HP |
| Number of Turret Positions | 24 Station Turret - BMT Type |
| Rapid Traverse Rates | 1181 IPM |
| Machine Dimensions | 148" x 78" x 86" |
| Machine Weight | 14,740 lbs. |
