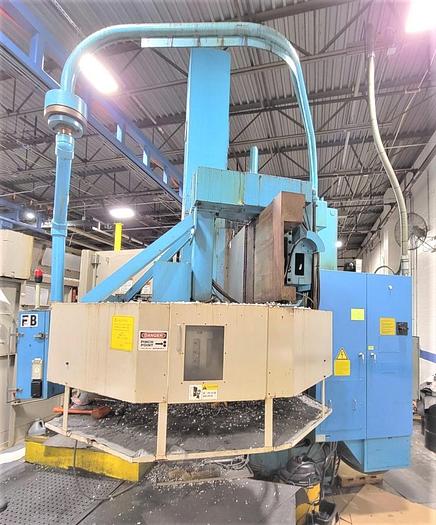

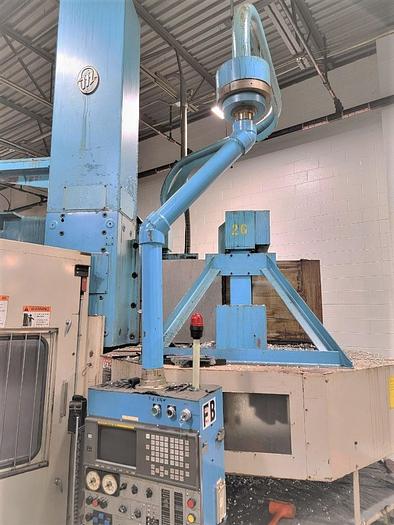

2000 O-M Ltd VT5-16N
2000 O-M Ltd VT5-16N
Contact us for price
Pennsylvania
orCall (863) 439-6066
Description

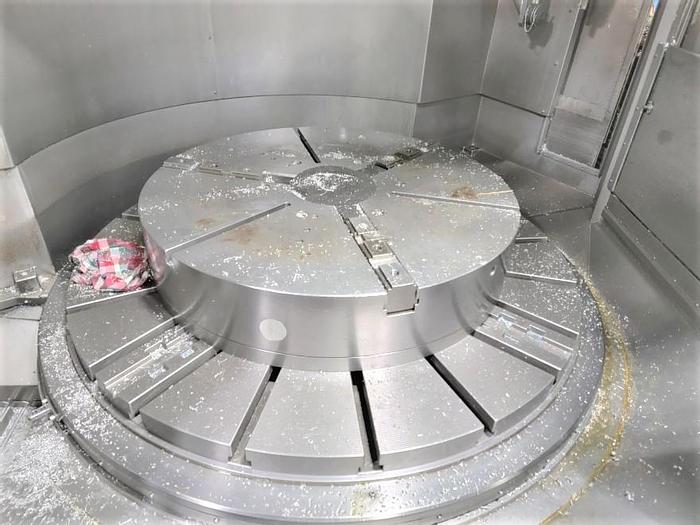

63" Table Diameter Combination T-Slotted Table

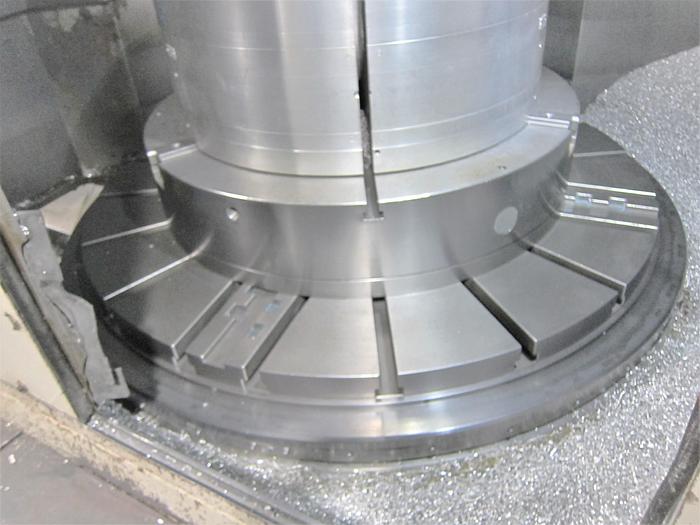

48" 3 Jaw Manual Scroll Type Precision Extra Height Chuck on Table
Side Discharge Chip Conveyor
Coolant on the RAM
Factory 480v Step Down 208v Transformer
Flood Coolant System
Mist Collector
RS 232 Port Interface

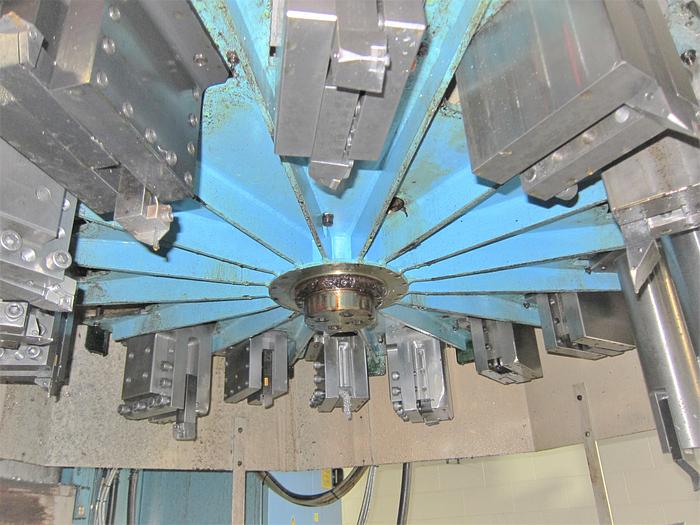

All Available O-M Proprietary Tool Holders in ATC Photos
All Available Hard & Soft Jaws With Machine All Available Manuals
Specifications
| Manufacturer | O-M Ltd. |
| Model | VT5-16N |
| Year | 2000 |
| Condition | Used |
| Stock Number | 118137 |

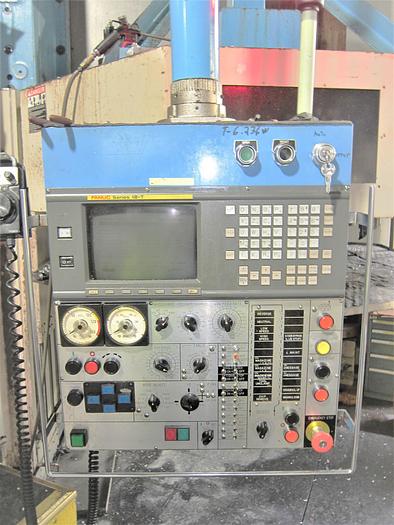

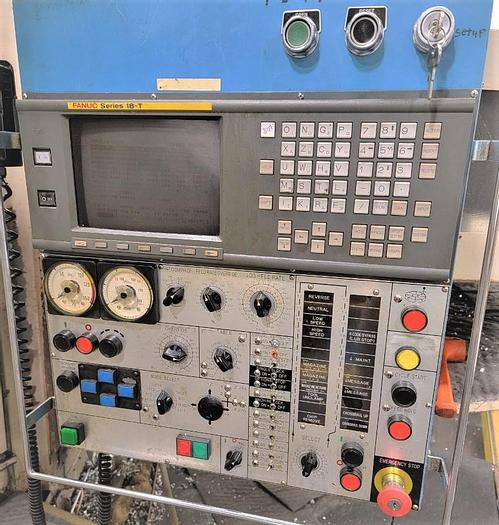

| Control | Fanuc 18T |
| Table Diameter | 63" |
| Maximum Swing | 77" |
| Maximum Table Load | 22,000 lbs. |
| Maximum Turning Diameter | 70" |
| Maximum Turning Height | 63" |
| Vertical Travel of RAM Head | 33.5" |
| Horizontal Travel of the RAM | 39" |
| Table Speed | 1.6 - 320 RPM |
| Table Motor | 75 HP |
| Number of Tool Positions | 16 Station Tool Changer |
| Machine Dimensions LxWxH | 205" x 169" x 214" |
| Machine Weight | 42,000 lbs. |
