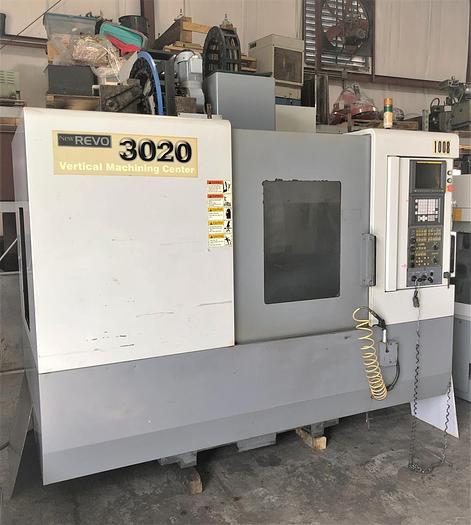

2004 Doosan/Daewoo REVO 3020 Fanuc 0iMB (PARTS ONLY)
No longer available
2004 Doosan/Daewoo REVO 3020 Fanuc 0iMB (PARTS ONLY)
Location:Dundee, FL
Description
PARTS ONLY MACHINE
30 Station Side Mounted Tool Changer Chip Conveyor w/ Dual Augers 10,000 RPM Spindle Spindle Chiller Unit Air Blow on Spindle Flood Coolant with Enclosure Hand Held MPG Rigid Tapping RS 232 Port Interface All Available Manuals 3 Color Operation Lights Tool Path Graphics Display Dual Coolant Pumps Wired 200/220V 3 Phase
Specifications
| Manufacturer | Doosan/Daewoo |
| Model | REVO 3020 Fanuc 0iMB |
| Year | 2004 |
| Condition | Used |
| Stock Number | 114722 |
| Table size | 40.2" x 24" |
| Table load capacity | 2,204 lbs. |
| Distance spindle nose to table top | 5.9" - 25.9" |
| Distance spindle center - column | 24.6" |
| X axis travel | 32.3" |
| Y axis travel | 20.1" |
| Z axis travel | 20.1" |
| Spindle taper | BT #40 |
| Spindle speed-direct drive | 10,000 RPM |
| Spindle motor | 25 HP |
| Tool magazine capacity - side mount | 30 Position ATC |
| Max. tool diam./length/weight | 4.92"/13.78"/18.74 lbs. |
| Tool change time t to t / c to c | 1.2 sec / 2.86 sec. |
| Rapid traverse rates x,y / z | 1574 IPM / 1417 IPM |
| Maximum cutting feed rate | 394 IPM |
| Machine dimensions lxw | 104.1"x110.7"x112.4" |
| Machine weight | 14,320 lbs. |
