2007 Doosan Puma 400LC
No longer available
2007 Doosan Puma 400LC
$99,000 (USD)
Location:Oklahoma
Description
Chip Conveyor 20" 3 Jaw Hydraulic Chuck

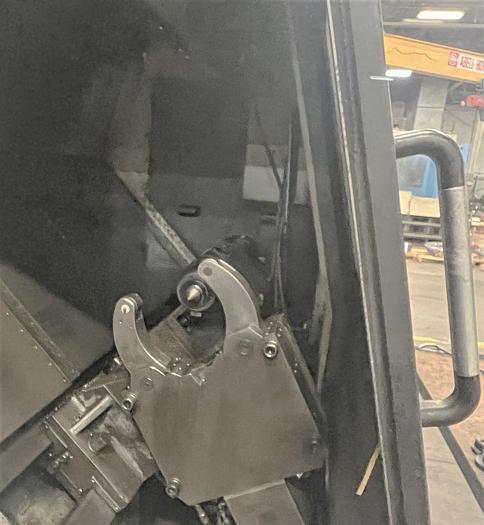

Steady Rest - Position Manually with use of Cross Slide with Hydraulic Clamping Programmable Tailstock
Tool Presetter Card Interface RS 232 Port Interface Coolant System with Tank & Pump
Boxed Way Construction on Slant Bed All Available Tooling All Available Manuals
Specifications
| Manufacturer | Doosan |
| Model | Puma 400LC |
| Year | 2007 |
| Condition | Used |
| Stock Number | 118121 |

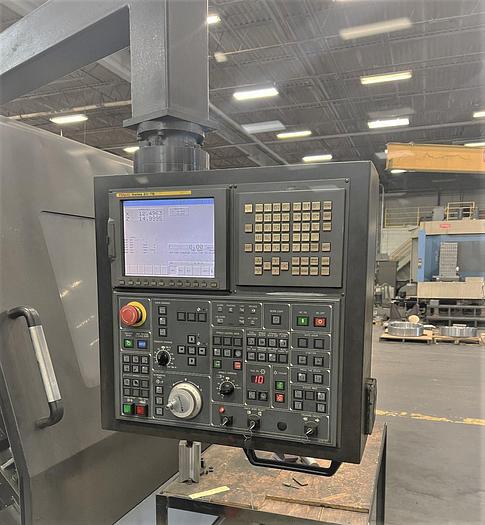

| Control | Fanuc 21i-TB |

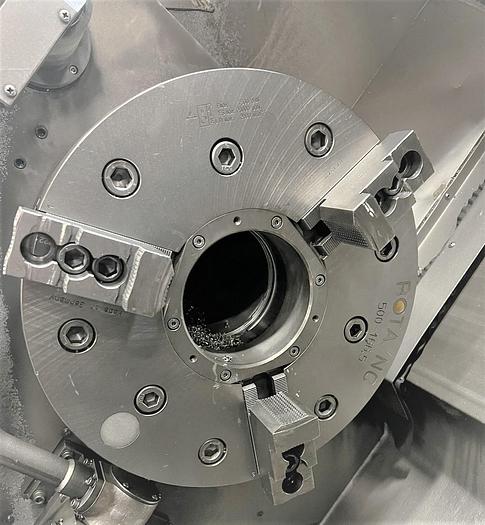

| Chuck Size | 20" Hydraulic Chuck |
| Maximum Swing | 30.31" |
| Maximum Turning Diameter | 21.7" |
| Maximum Turning Length | 81.7" |
| Maximum Bar Capacity | 6.5" |
| X-Axis Travel | 14.25" |
| Z-Axis Travel | 84.84" |
| Spindle Nose / Spindle Bore | A2-15" / 7.1" |
| Spindle Speeds | 1 -1,500 RPM |
| Spindle Motor | 50 HP |
| Number of Turret Positions | 10 Position Turret |
| Rapid Traverse Rates X/Z | 630 IPM / 790 IPM |
| Tailstock Quill Diameter / Center | 4.7" / MT #5 |
| Tailstock Quill Travel | 4.7" |
| Machine Dimensions | 201" x 94" x 89" |
| Machine Weight | 25,500 lbs. |
