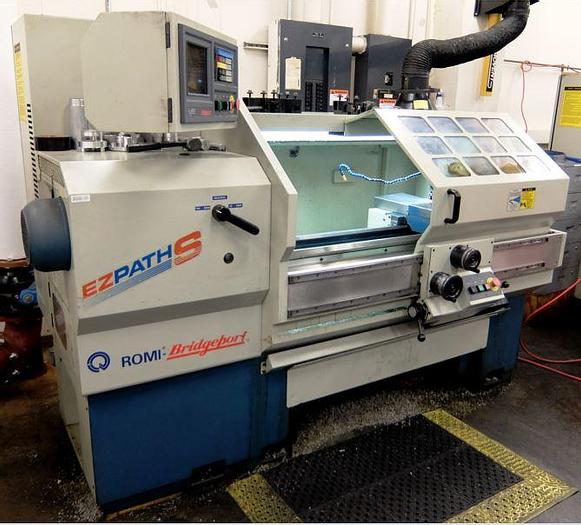

1997 Bridgeport Romi EZ Path II
No longer available
1997 Bridgeport Romi EZ Path II
Location:Massachusetts
Description
3.5" Floppy Disk Drive
Constant Surface Speed
2-Axis Teach Type Control

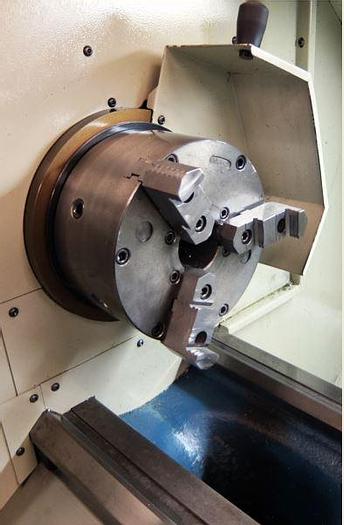

10" 6-Jaw Manual Chuck

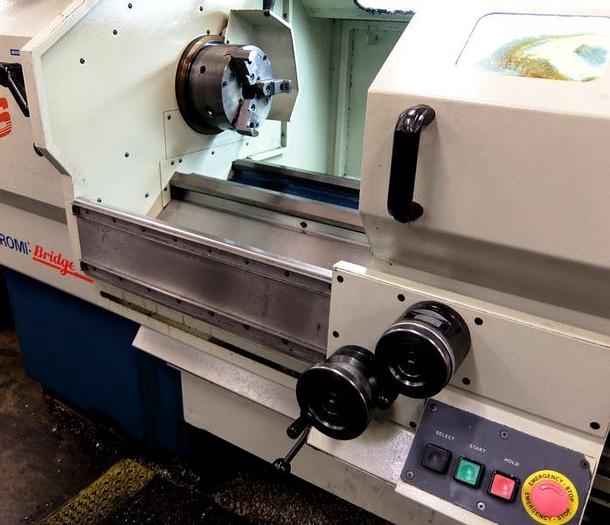

Electronic Hand Wheels
Tailstock
Inch/Metric Threading
Automatic Lubrication System
All Available Tooling
All Available Manuals
Specifications
| Manufacturer | Bridgeport |
| Model | Romi EZ Path II |
| Year | 1997 |
| Condition | Used |
| Stock Number | 118120 |

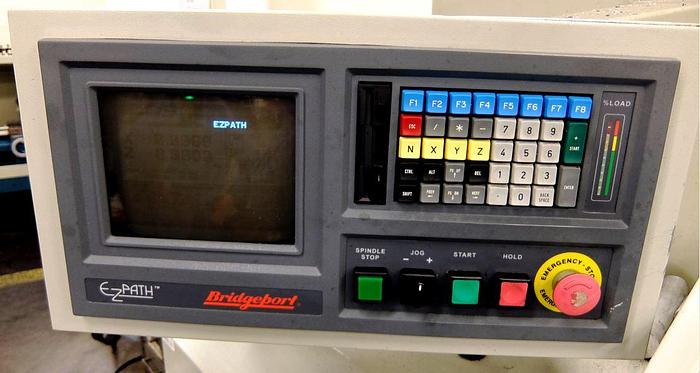

| Machine Control | Bridgeport DX-32R |
| Maximum Swing | 16.5" |
| Maximum Swing Over Cross Slide | 8.6" |
| Distance Between Centers | 40" |
| X-axis travel | 8.6" |
| Z-Axis Travel | 40" |
| Spindle Nose / Spindle Bore | A2-5" / 2.09" |
| Spindle Speeds | 25 to 4,000 rpm 24 Speeds Geared Head |
| Spindle Motor | 8 hp |
| Turret Type | Tool Post |
| Tailstock Quill Travel | 6.3" |
| Tailstock Bore Taper | #4 MT |
| Machine Dimensions LxWxH | 94"x55"x71" |
| Machine Weight | 4,000 lbs |
