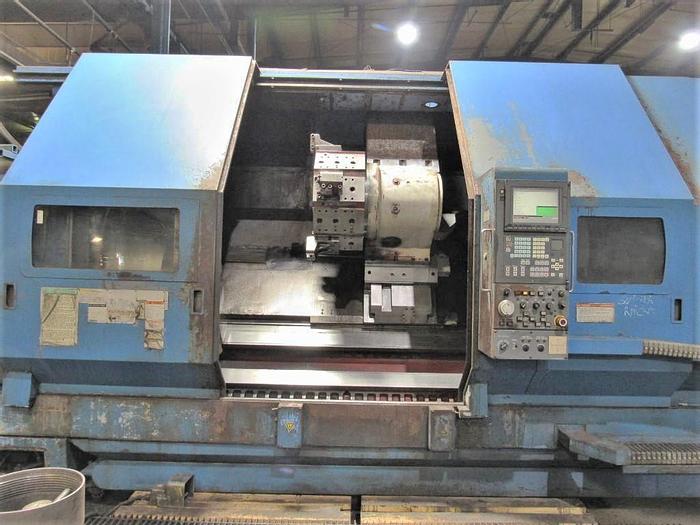

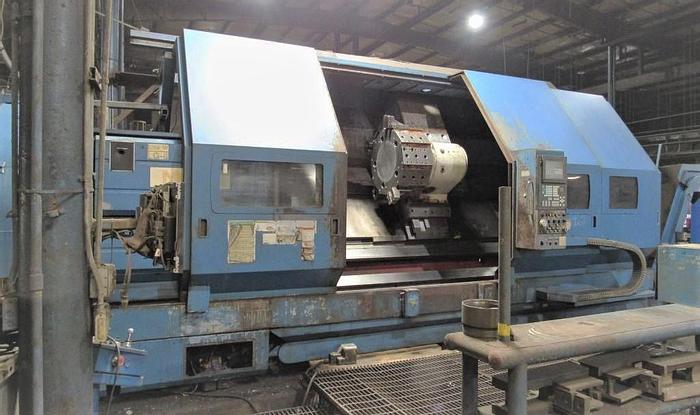

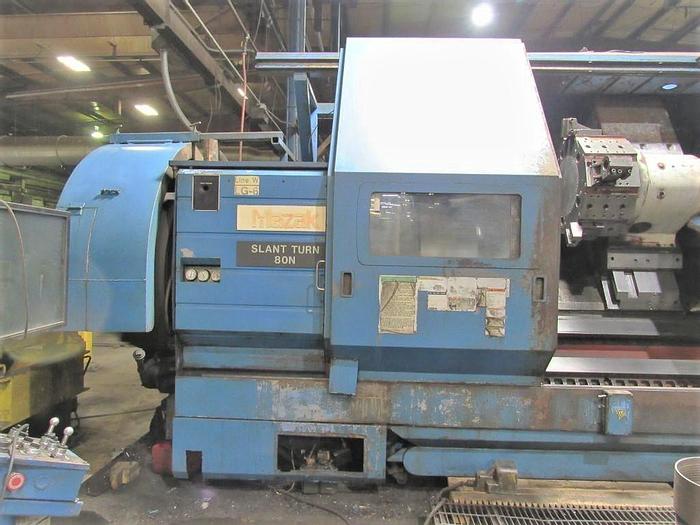

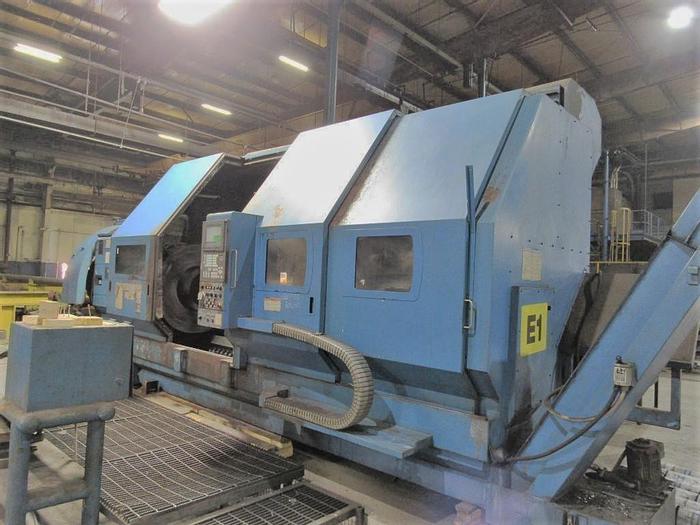

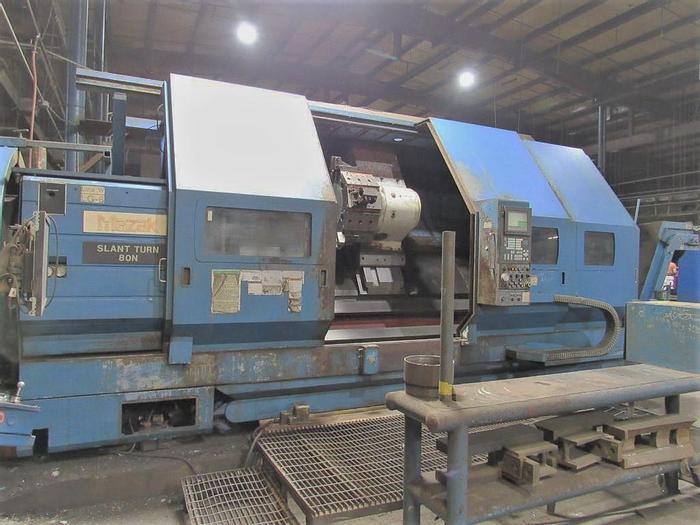

2002 Mazak Slant Turn 80N/3000 w/ 21.25" Bore
No longer available
2002 Mazak Slant Turn 80N/3000 w/ 21.25" Bore
$179,500 (USD)
Location:Texas
Description
HUGE 21.75" Spindle Bore

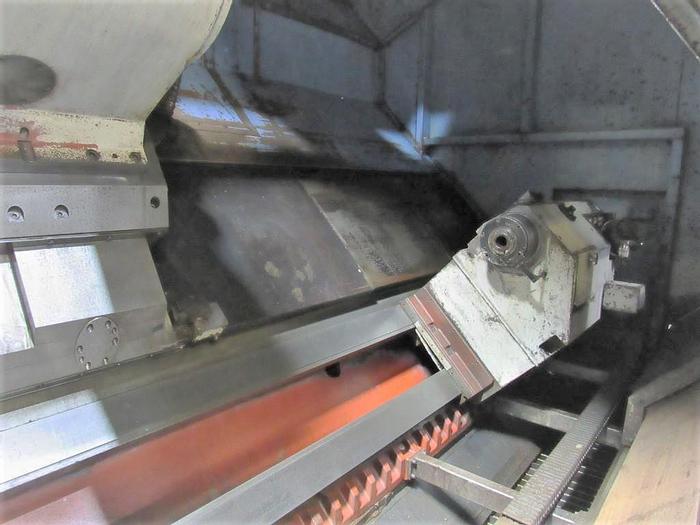

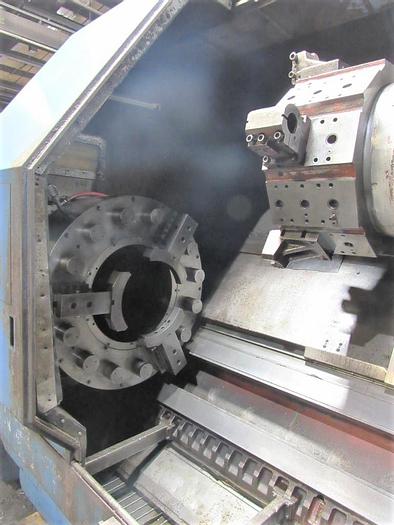

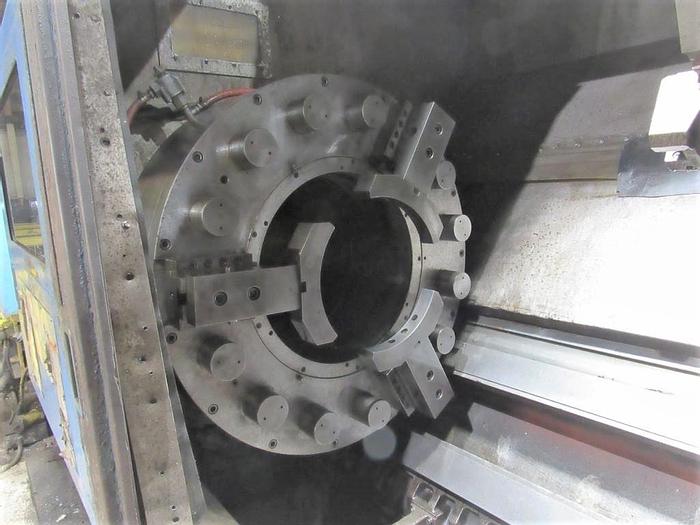

40" Woodworth Air Chuck with 21.5" Hole Through Programmable Tailstock
Rear Air Chuck
Rear Chuck Prep Rear Chuck Cover w/ Door Interlock Chip Conveyor
Multi-Tap Transformer
PCMCIA Interface - 2 Slots
3.5" Floppy Disk Interface
IC Memory Card Interface
RS 232 Port Interface
Backround Tool Path Check
EIA/ISO Input Function All Available Manuals & Tooling
Wired 200V Electrics
*Machine was manufactured new in November of 2002
Specifications
| Manufacturer | Mazak |
| Model | Slant Turn 80N/3000 w/ 21.25" Bore |
| Year | 2002 |
| Condition | Used |
| Stock Number | 118118 |

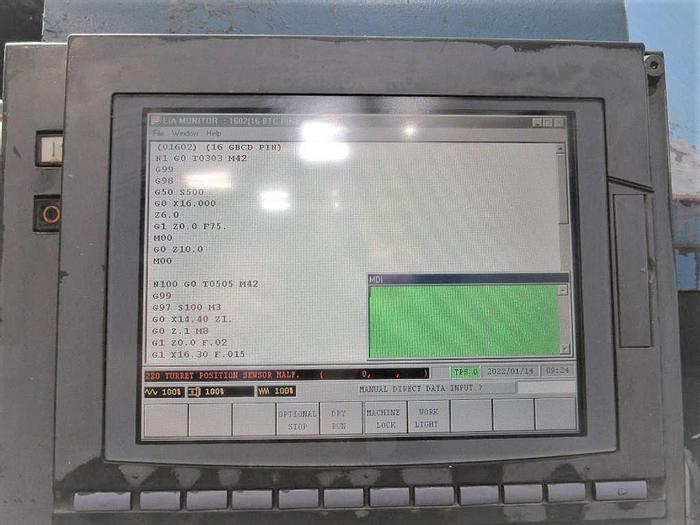

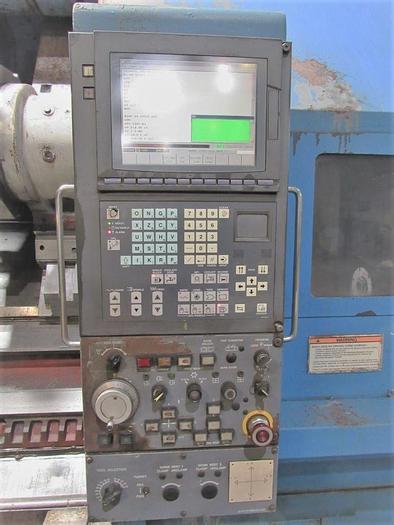

| Control | Mazatrol Fusion 640T |
| Chuck Size | 40" Air Chuck w/ 21.5" hole |
| Maximum Swing over Bed | 42.13" |
| Maximum Machining Diameter | 42" |
| Maximum Machining Length | 118" |
| Maximum Bar Capacity | 21.75" |
| X-Axis Travel | 27.56" |
| Z-Axis Travel | 120.3" |
| Spindle Nose / Spindle Bore | 700mm H6 / 21.75" |
| Spindle Speeds | 2 - 300 RPM |
| Spindle Motor | 80 HP |
| Number of Speed Ranges | 4 Gear Ranges |

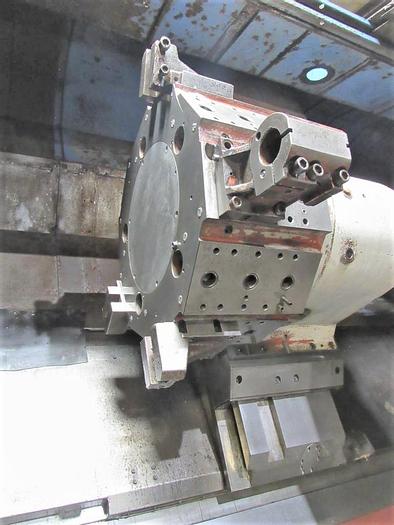

| Number of Tool Positions | 15 Position Turret - 10 OD / 5 ID Locations |
| Rapid Traverse Rates X/Z | 315 IPM / 394 IPM |
| Machine Dimensions | 360" x 162" x 122" |
| Machine Weight | 49,600 lbs. |
