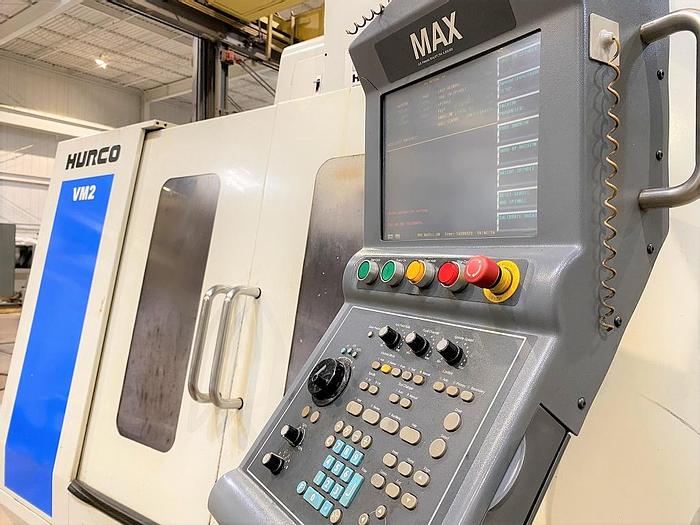

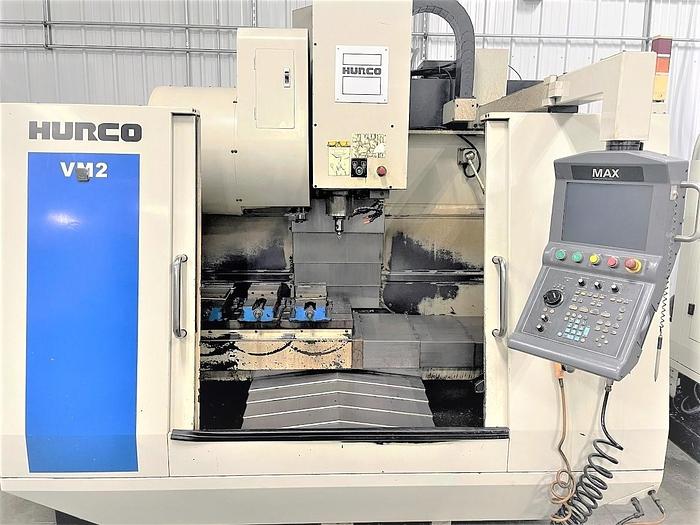

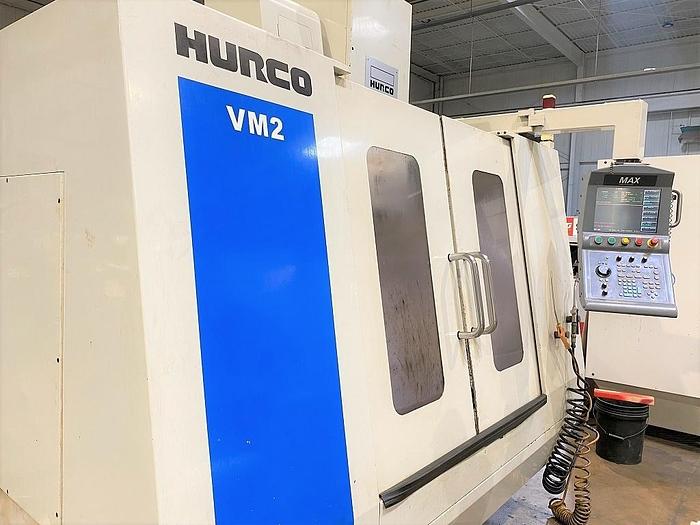

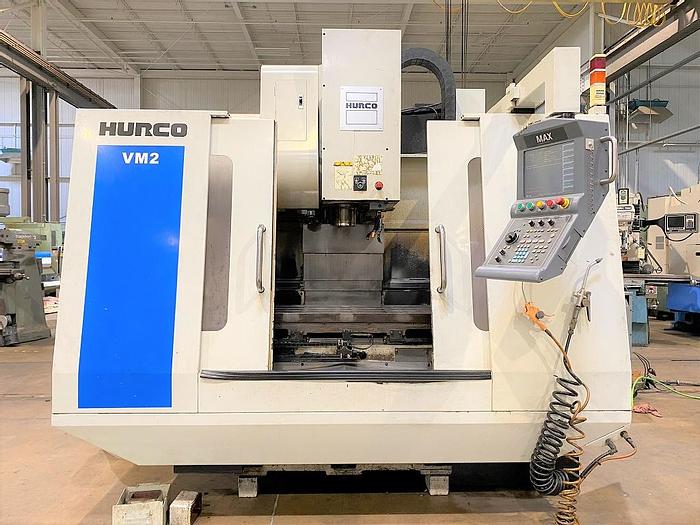

2006 Hurco VM2
No longer available
2006 Hurco VM2
Location:Illinois
Description
Rigid Tapping 20 Position Side Mounted Dual Arm ATC Flood Coolant System w/ Tank & Pump 3.5" Floppy Disk Drive RS 232 Port Interface Work Light Machine Status Condition Lights
Specifications
| Manufacturer | Hurco |
| Model | VM2 |
| Year | 2006 |
| Condition | Used |
| Stock Number | 118117 |
| Control | Hurco Max |
| Table Size | 46" x 20" |
| Maximum Table Load | 1,200 lbs. |
| X-Axis Travel | 40" |
| Y-Axis Travel | 18" |
| Z-Axis Travel | 18" |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 8,000 RPM |
| Spindle Motor | 20 HP |
| Spindle Torque | 75 ft./lbs. @ 1,450 RPM |
| Number of Tool Positions | 20 Position Turret |
| Rapid Traverse Rates X, Y / Z | 945 IPM / 750 IPM |
| Machine Dimensions | 100" x 81" x 92" |
| Machine Weight | 9,000 lbs. |
