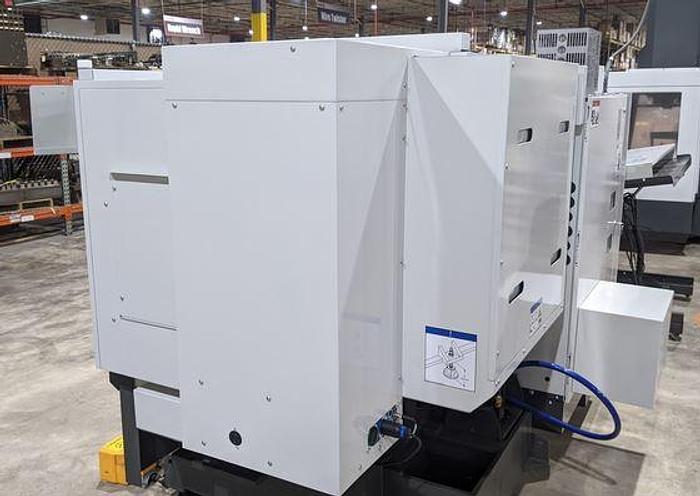

2019 Haas ST-15Y
No longer available
2019 Haas ST-15Y
$119,500 (USD)
Georgia
Description

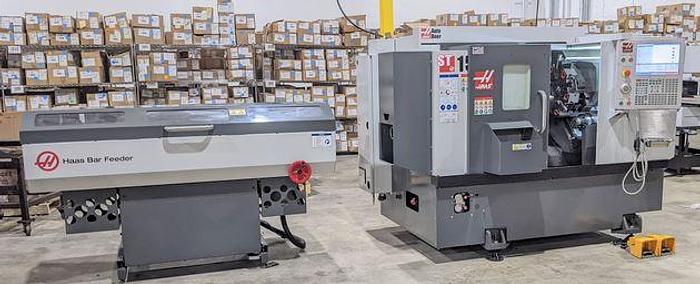

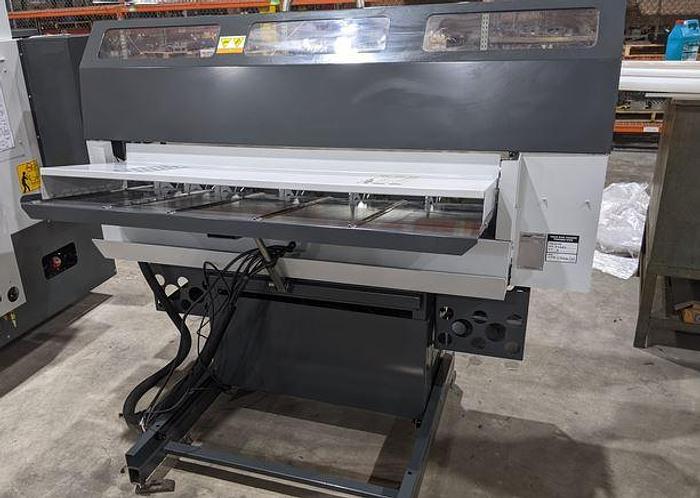

Haas Barfeeder w/set of liners
C Axis Spindle Rotation
Live Milling/Drilling Capability
6,000 RPM Live Milling Option
Y Axis Capability
Subspindle
Tool Presetter

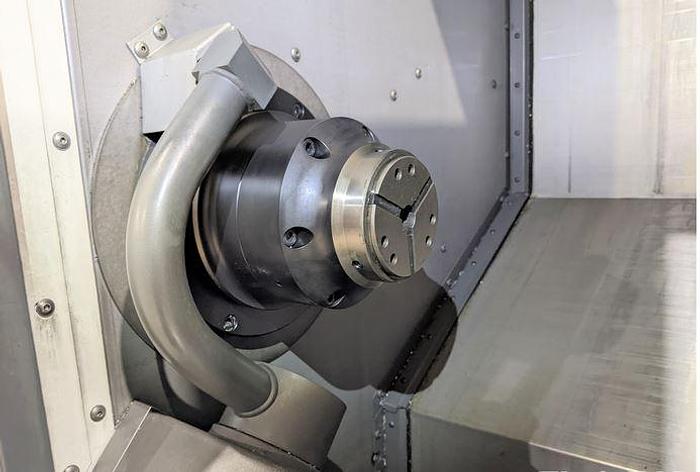

Royal Collet System on Main and Subspindle
Parts Catcher
Jorgensen Chip Conveyor
User Definable Macros
Spindle Orientation
Internal High Voltage Isolated Transformer (for 380v-440v)
VPS Editing
Media Display
1GB Memory
Wireless Networking
Comp Tables
Rigid Tapping
Ethernet Interface
Memory Lock Key Switch
RS 232 Port Interface

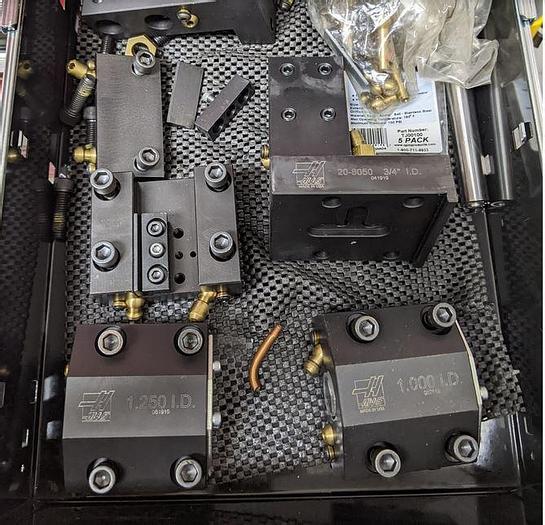

Miscellaneous Static and Live Tool Holders

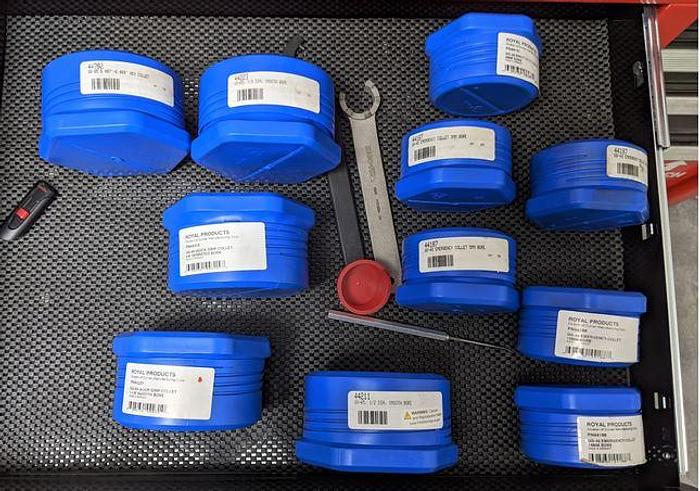

Miscellaneous Collets for Main & Subspindle
All Available Manuals
**Machine used for one year then moved to another location and never used again**
Royal Rota-Rack w/External Parts Feed available at an additional cost
Specifications
| Manufacturer | Haas |
| Model | ST-15Y |
| Year | 2019 |
| Condition | Used |
| Stock Number | 118116 |

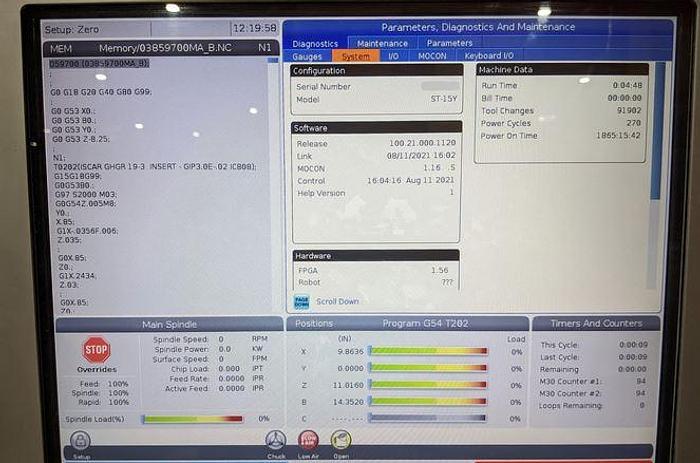

| Machine Control | Haas NextGen Control |
| Chuck Size | Collet Chuck / Collet Chuck |
| Maximum Swing | 25.25" |
| Maximum Machining Diameter | 16.5" |
| Maximum Machining Length | 14" |
| Maximum Bar Capacity | 2.5" |
| X-Axis Travel | 7.9" |
| Y-Axis Travel | +/- 2.0" |
| Z-Axis Travel | 14" |
| C Axis Spindle Rotation | 0.01 Degree |
| Spindle Nose / Spindle Bore | A2-6" / 3.5" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor | 20 HP |
| Subspindle Nose | A2-5" |
| Subspindle Speed | 6,000 RPM |
| Rotary Tool Speed / Rotary Motor | 4,000 RPM / 5 HP |

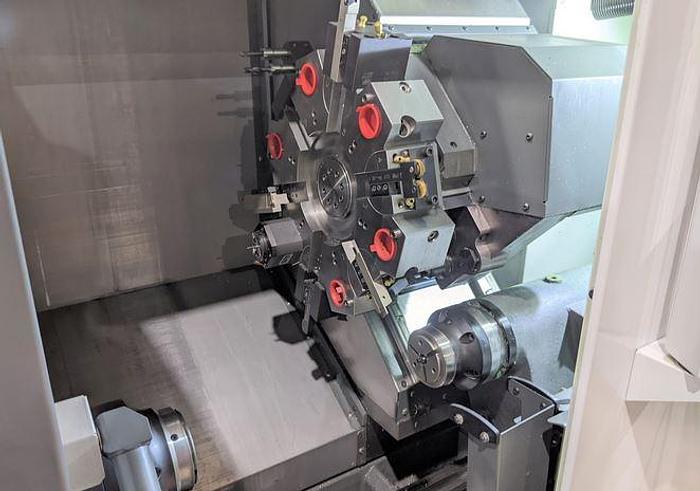

| Number of Turret Positions | 12 Bolt on Style |
| Rapid Traverse Rates X, Y / Z | 472 IPM / 1200 IPM |
| Machine Dimensions LxWxH | 126"x83"x71" |
| Machine Weight | 9,000 lbs. |
