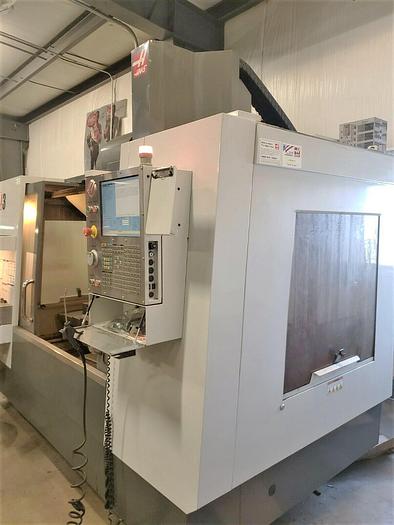

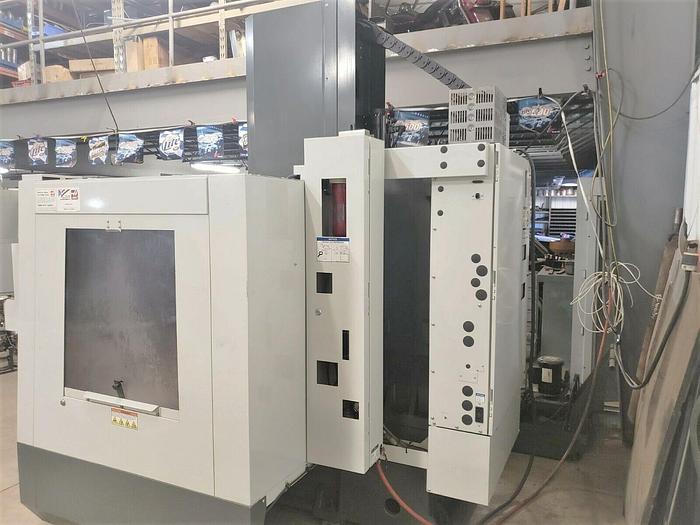

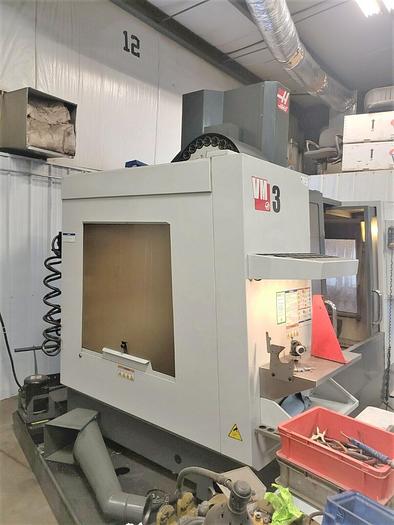

2010 Haas VM3
No longer available
2010 Haas VM3
Location:Wisconsin
Description
24+1 Position Side Mounted Tool Changer
Haas Probing
12,000 RPM Spindle
Auger Style Chip Conveyor
Programmable Coolant Nozzle
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Remote Jog Handle
Rigid Tapping
Coolant Tank with Pump
USB Port Inteface
RS 232C Port Interface for DNC Operation
All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | VM3 |
| Year | 2010 |
| Condition | Used |
| Stock Number | 118115 |

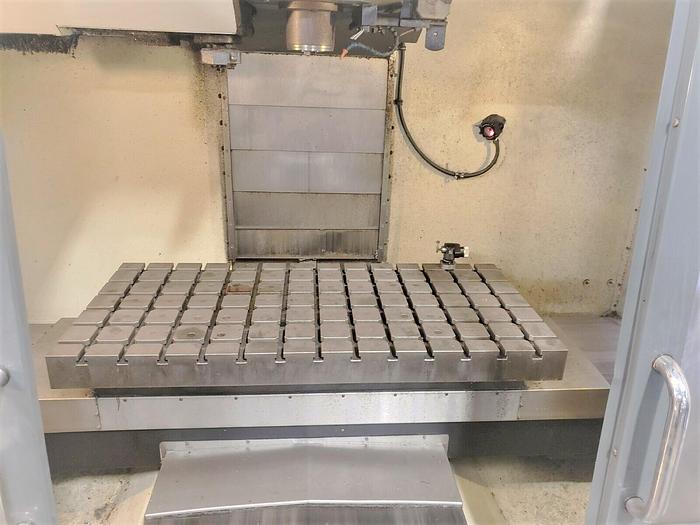

| Table size | 54" x 25" |
| Max table load | 4,000 lbs. |
| X axis travel | 40" |
| Y axis travel | 26" |
| Z axis travel | 25" |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP |
| Spindle nose to table top | 4.2" - 29.2" |
| Number of tool positions | 24 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid Traverse Rates | 710 IPM |
| Machine dimensions | 122" x 96" x 100" |
| Machine weight (approximately) | 14,000 lbs. |
