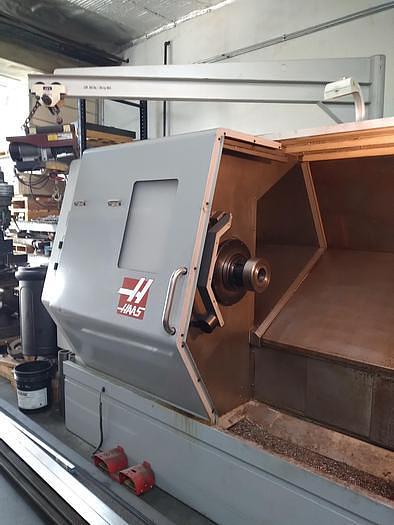

2011 Haas ST-40T
No longer available
2011 Haas ST-40T
California
Description

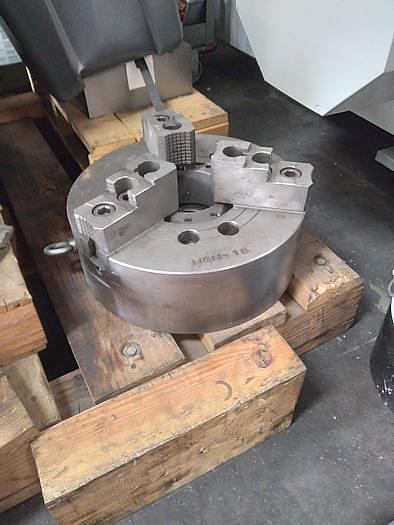

15" 3 Jaw Hydraulic Chuck 4" Bar Capacity Tool Presetter Chip Conveyor - Belt Style
Fully Programmable Tailstock
Remote Jog Handle
Extended Tool Pocket
High Pressure Coolant 300 psi
Tool Tray
High Intensity Lighting

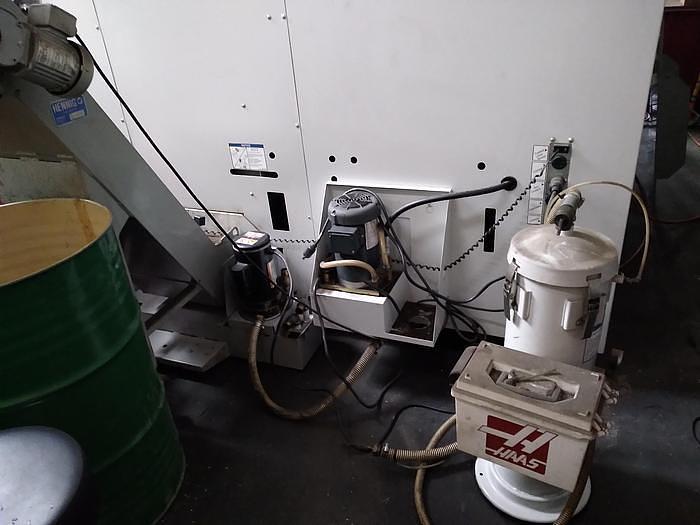

Auxiliary Coolant Filter 2 Speed Geared Headstock RS 232 Port Interface Rigid Tapping 95 Gallon Coolant Tank with Pump All Available Manuals
All Available Tool Blocks
Specifications
| Manufacturer | Haas |
| Model | ST-40T |
| Year | 2011 |
| Condition | Used |
| Stock Number | 118106 |

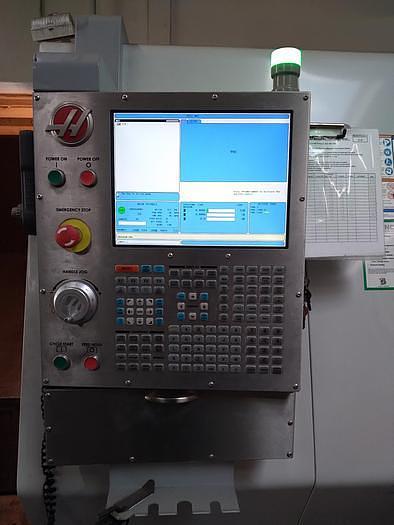

| Control | Haas 32 BIT |
| Maximum Swing | 40" |
| Maximum Swing Over Cross Slide | 25" |
| Maximum Cutting Diameter | 25.5" |
| Maximum Cutting Length | 44" |
| Maximum Distance Between Centers | 51" |
| Maximum Bar Capacity | 4" |
| X-Axis Travel | 17" |
| Z-Axis Travel | 44" |

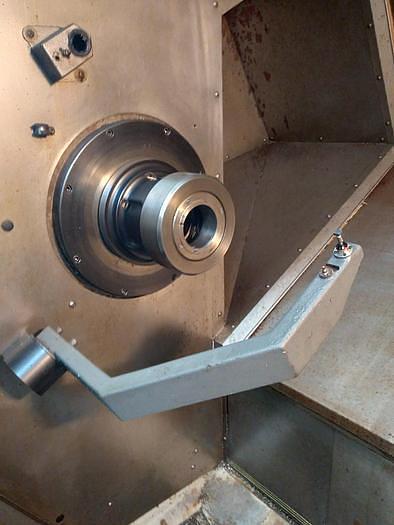

| Spindle Nose / Spindle Bore | A2-8" / 4.62" |
| Spindle Speeds | 2,400 RPM |
| Spindle Motor | 55 HP |

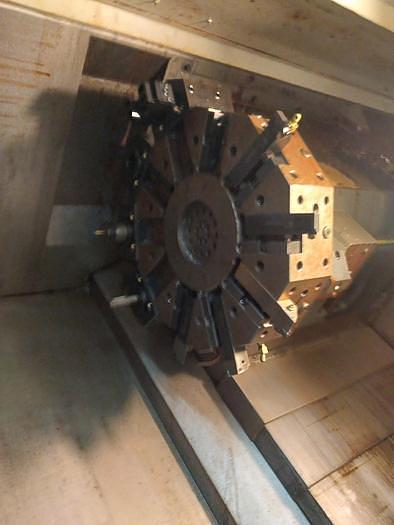

| Number of Turret Positions | 10 Station Turret |
| Rapid Traverse Rates | 710 IPM |
| Tailstock Body Travel / Tailstock Taper | 44" / MT #5 |
| Machine Dimensions | 170" x 102" x 89" |
| Machine Weight | 25,000 lbs. |
