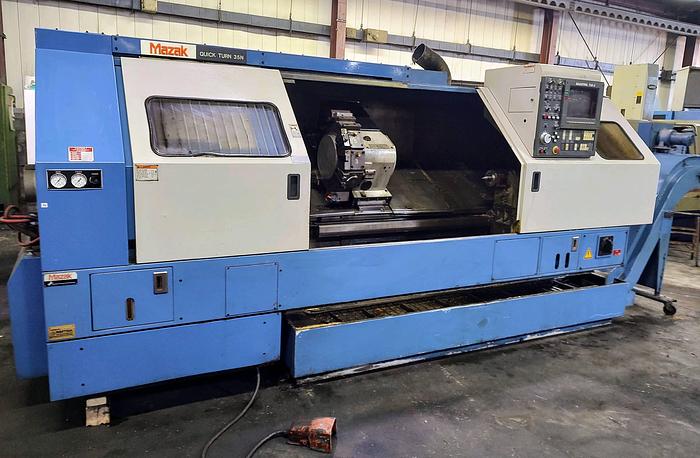

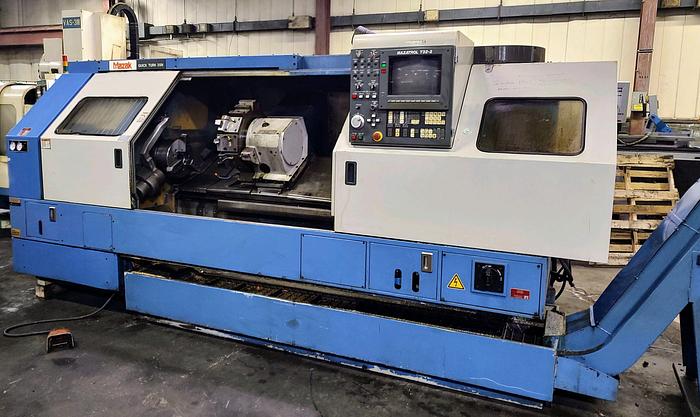

1992 Mazak QT35N/1000
No longer available
1992 Mazak QT35N/1000
Location:Ohio
Description

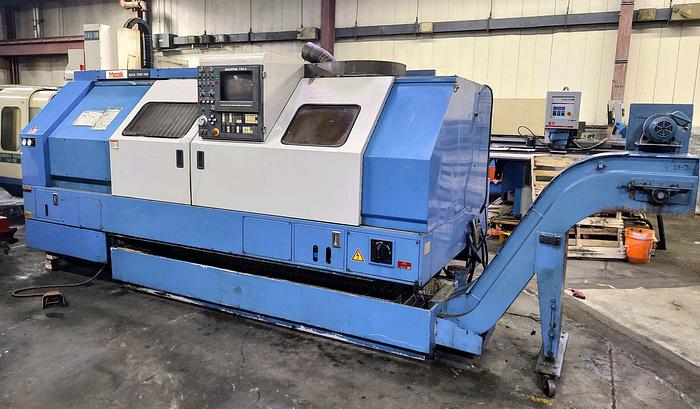

Chip Conveyor

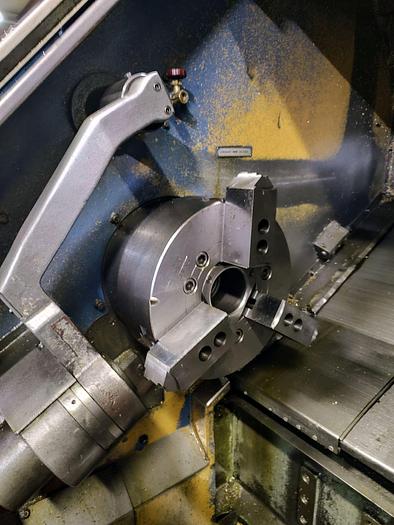

12" 3 Jaw Hydraulic Chuck
Automatic Tool Eye

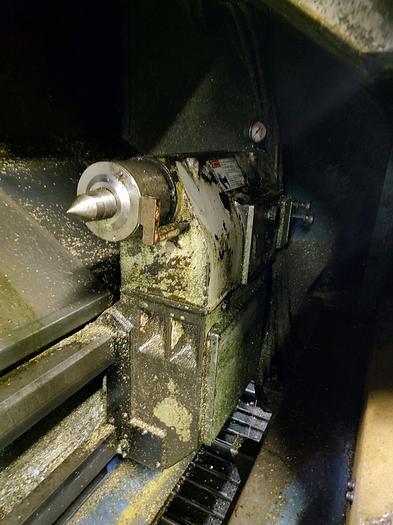

Programmable Tailstock
RS-232C Port for DNC Interface
Coolant System with Tank & Pump
All Available Manuals
Specifications
| Manufacturer | Mazak |
| Model | QT35N/1000 |
| Year | 1992 |
| Condition | Used |
| Stock Number | 118101 |
| Machine Control | Mazatrol T32-2 Color Graphics Control |
| Chuck Size | 12" 3-Jaw Chuck |
| Maximum Swing | 20" |
| Maximum Cutting Diameter | 15.75" |
| Maximum cutting length | 41.02" |
| X-Axis Travel | 11" |
| Z-Axis Travel | 41.42" |
| Spindle Nose / Bore / Bar Capacity | A2-8" / 3.15" / 2.75" |
| Spindle Speeds | 35 - 3,000 RPM - 2-Ranges |

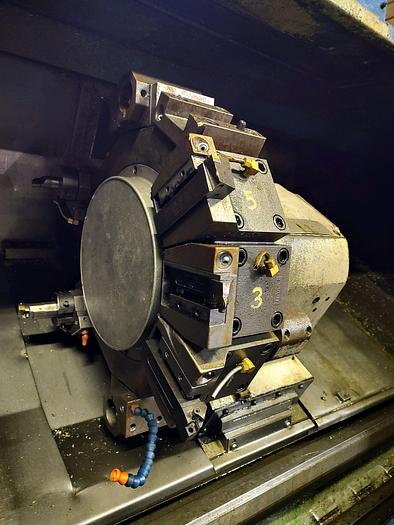

| Number of Turret Positions | 12 Sided / 24 Positions |
| Rapid Traverse Rates X/Z | 472 IPM / 709 IPM |
| Tailstock Body Travel / Center | 34.5" / #5 MT |
| Tailstock Quill Travel | 3.94" |
| Machine Dimensions LxWxH | 145" x 81" x 75" |
| Machine Weight | 12,570 lbs |
