1998 Hyundai Hit-20M
Featured
No longer available
1998 Hyundai Hit-20M
Location:Maine
Description
Full C Axis Spindle Rotation Live Milling / Drilling Capability 10" 3 Jaw Hydraulic Chuck Automatic Tool Eye Tailstock
Coolant System with Tank & Pump RS 232 Port Interface All Available Tooling All Available Manuals

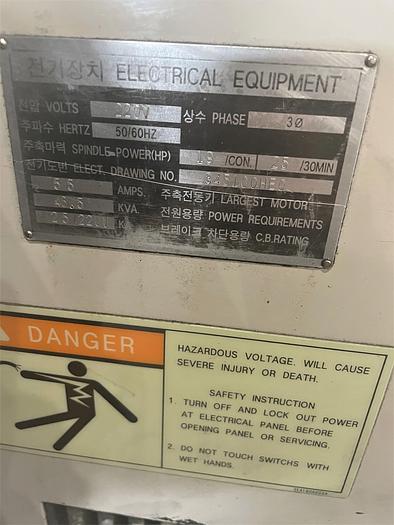

Wired 220V Electrics
Specifications
| Manufacturer | Hyundai |
| Model | Hit-20M |
| Year | 1998 |
| Condition | Used |
| Stock Number | 118100 |

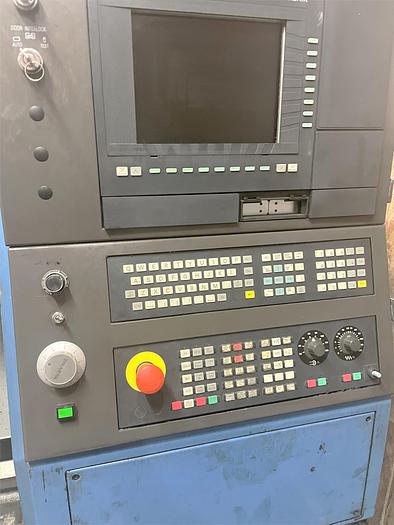

| Control | Siemens 840D |
| Chuck Size | 10" Hydraulic Chuck |
| Maximum Swing over Bed | 24.4" |
| Maximum Machining Diameter | 11.6" |
| Maximum Machining Length | 19.7" |
| Maximum Bar Capacity | 2.8" |
| X-Axis Travel | 10.6" |
| Z-Axis Travel | 20.1" |
| C Axis Spindle Rotation | .01 Degree |
| Spindle Nose / Spindle Bore | A2-8" / 3.14" |
| Spindle Speeds | 40 - 4,000 RPM |
| Spindle Motor | 25 HP |
| Rotary Tool Speed / Rotary Motor | 3,000 RPM / 5.5 HP |

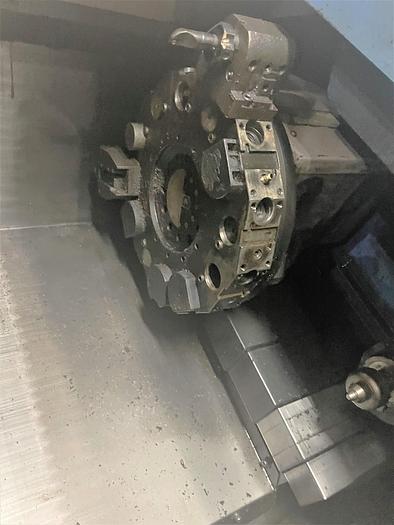

| Number of Turret Positions | 12 Station Turret / 6 Live Positions |
| Machine Dimensions | 114" x 66" x 68" |
| Machine Weight | 10,100 lbs. |
