2000 FPT Pragma Universal Horizontal Bed Mill
No longer available
2000 FPT Pragma Universal Horizontal Bed Mill
Ontario, Canada
Description
3 + 2 Infinite Indexing Head
Coolant Through the Spindle
RAM Type Spindle
Heidenhain Glass Scales
96" x 336" T-Slotted Floor Plate - Consists of 2-Sections 96"x144" & 96"x192"
3 Station Head Storage Rack
Head Attachments
-Spindle Extension Head w/ #50 Taper, 5,000 RPM, 15.75" Reach

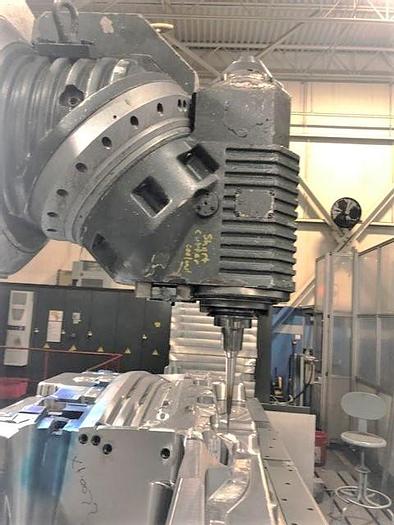

-Universal Head w/ Infinite 360,000 Deg. Indexing, #50 Taper, 4,000 RPM
Chip Conveyor
Remote Jog Handle
Traveling Column Design
All Available Manuals
Specifications
Manufacturer | FPT |
Model | Pragma |
Year | 2000 |
Condition | Used |
Stock Number | 118093 |
Machine Control | Heidenhain iTNC 530 |
Table Size | 336" x 96" |
Maximum Table Load | N/A |
Cross Section of RAM | 18.75" x 21.5" |
X-Axis Travel | 236.66" |
Y-Axis Travel | 98.74" |
Z-Axis Travel | 47.24" |
Spindle Taper | CAT #50 |
Spindle Speeds | 4,000 RPM |
Spindle motor | 35 HP |
Tool magazine capacity | Confirming |
Machine Dimensions LxWxH | 20' x 30' x 12' |
Machine Weight | 100,000 lbs |
