1987 Hardinge CHNC-I Chucker
No longer available
1987 Hardinge CHNC-I Chucker
$4,500 (USD)
Location:New Jersey
Description
Parts Catcher
Cut Off Tool Device
RS 232 Port Interface
Coolant System with Tank & Pump
All Available Tooling
All Available Manuals
Wired 230V Electrics
Specifications
| Manufacturer | Hardinge |
| Model | CHNC-I |
| Year | 1987 |
| Condition | Used |
| Stock Number | 118092 |

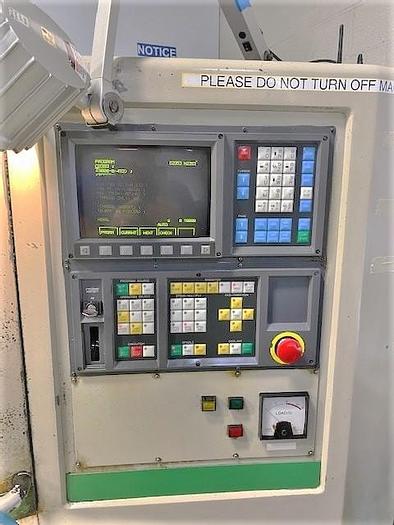

| Machine Control | General Numeric (Fanuc) OT |
| Chuck size | Collet Chuck |
| Swing over bed | 14" |
| Maximum machining diameter | 8" |
| Maximum Distance from Turret Face to Spindle | 12.5" |
| Maximum Bar Capacity | 1.625" |
| X-axis travel | 4.5" |
| Z-axis travel | 12" |
| Spindle Nose / Spindle Bore | A2-5" / 1.875" |
| Spindle Speed | 50 - 5,000 RPM |
| Spindle Motor | 10 HP |
| Number of Tool Positions | 8 Station Turret |
| Rapid Traverse Rates | 400 IPM |
| Machine dimensions | 91.5" x 65" x 64.5" |
| Machine weight | 6,000 lbs. |
