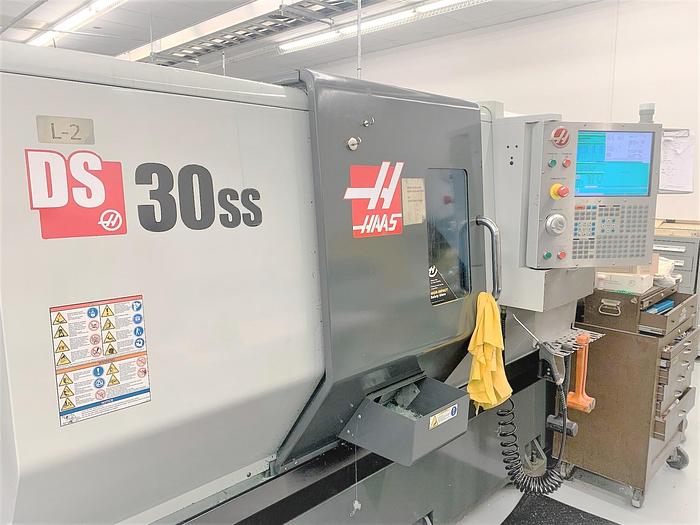

2014 Haas DS-30SS Big Bore
2014 Haas DS-30SS Big Bore
Contact us for price
Texas
orCall (863) 439-6066

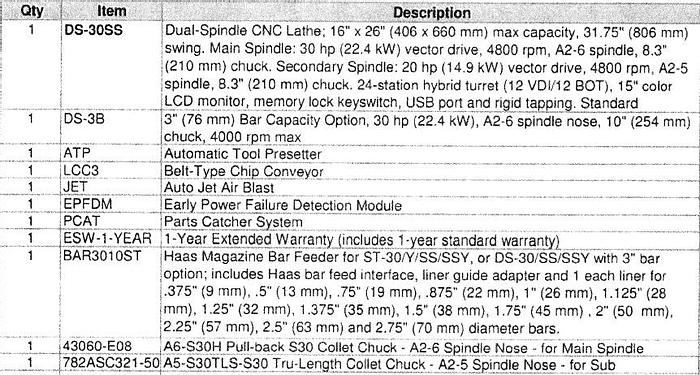

Description
Subspindle

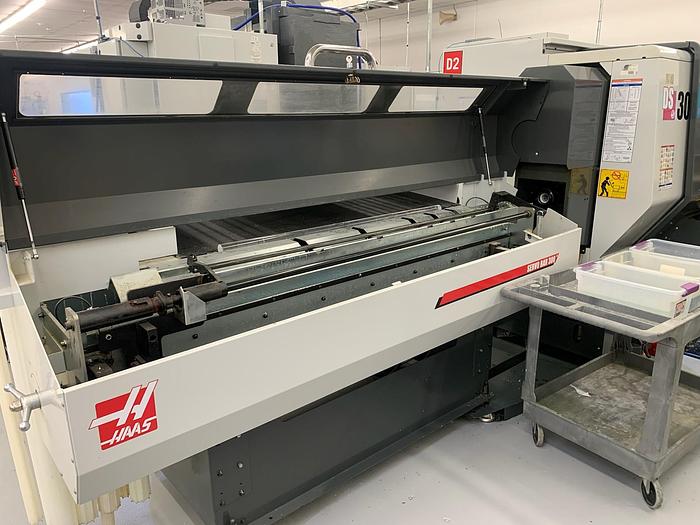

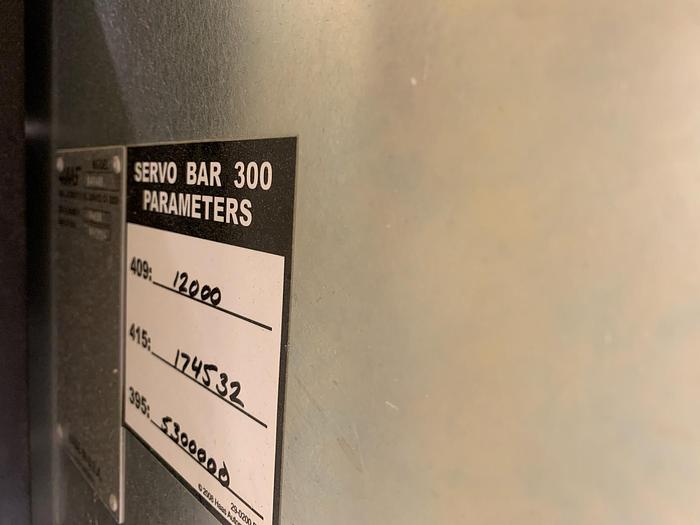

Haas Magazine Type Barfeeder
Barfeed Interface
Linear Guide Adapter
Miscellaneous Spindle Liners
10" 3 Jaw Hydraulic Chuck A6-S30H Model S30 Pull Back Collet Chuck for Main Spindle A5-S30TLS Model S30 True Length Collet Chuck on Subspindle Big Bore Spindle Option for 3" Bar Capacity Auto Jet Air Blast Tool Presetter Parts Catcher Chip Conveyor
Early Power Failure Detection Module USB Port Interface RS 232 Port Interface Rigid Tapping 24 Station VDI/BOT Hybrid Turret
15" Color LCD Monitor All Available Manuals
All Available Tool Holders

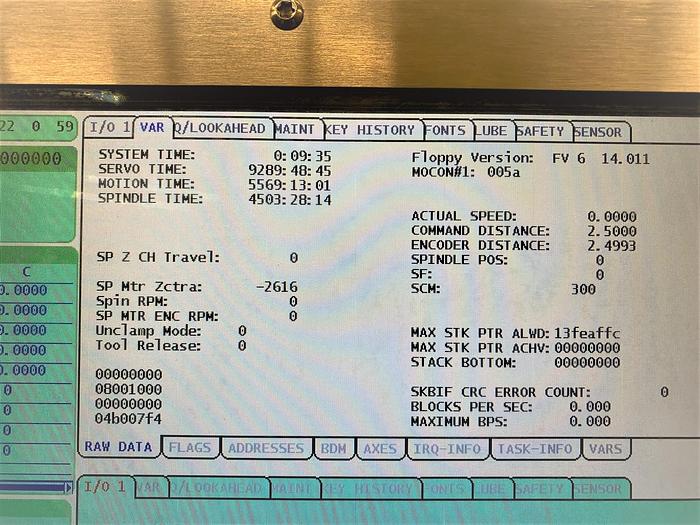

Servo Hours 9,289
Motion Hours 5,569
Spindle Hours 4,503
Specifications
| Manufacturer | Haas |
| Model | DS-30SS Big Bore |
| Year | 2014 |
| Condition | Used |
| Stock Number | 118087 |

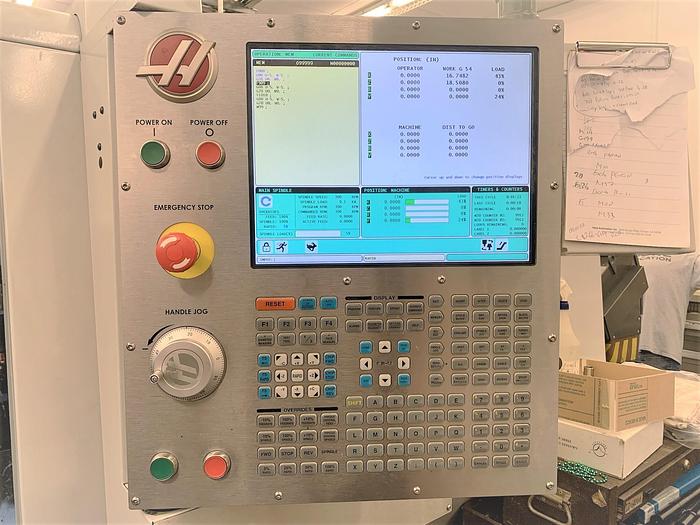

| Control | Haas 32 BIT |
| Chuck Sizes Main / Subspindle | 10" Hydraulic & S30 Collet Chuck / S30 Collet Chuck |
| Maximum Swing | 31.75" |
| Maximum Swing Over Cross Slide | 20.75" |
| Maximum Cutting Diameter | 16" |
| Maximum Distance Between Spindles | 26" |
| Maximum Bar Capacity | 3.03" |
| X-axis travel | 12.5" |
| Z-Axis Travel | 23" |
| Spindle Nose / Spindle Bore | A2-6" / 3.5" |
| Spindle Speeds | 4,800 RPM |
| Spindle Motor | 30 HP |
| Subspindle Nose / Subspindle Bore | A2-5" / 2.44" |
| Subspindle Speed | 4,800 RPM |
| Subspindle Motor | 20 HP |

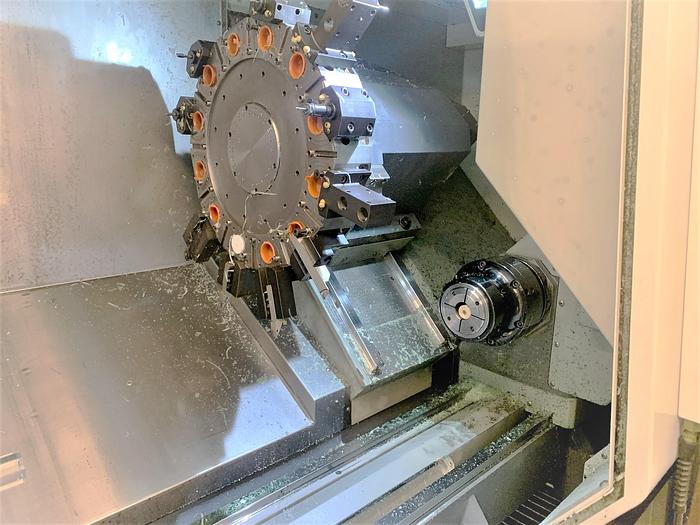

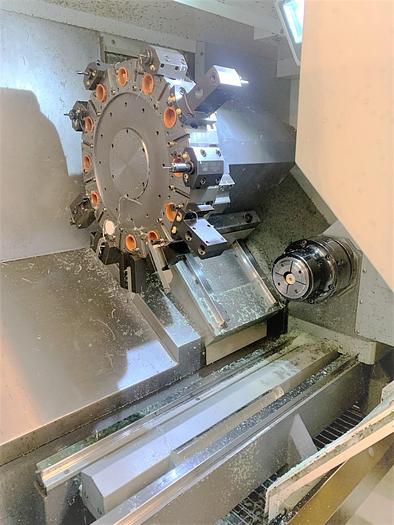

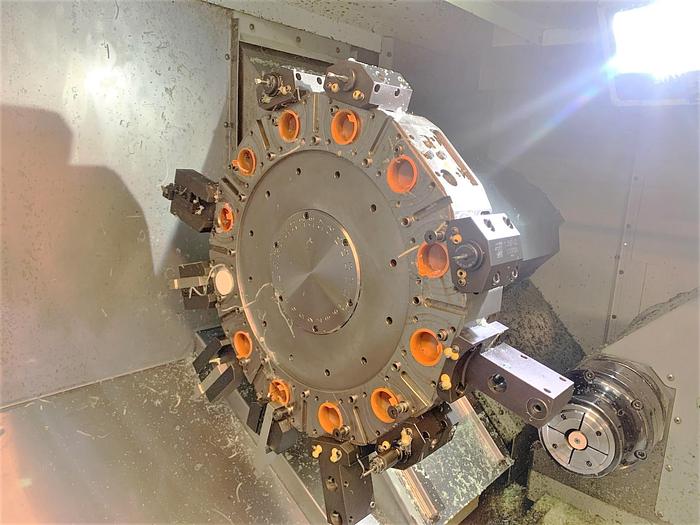

| Number of Turret Positions | 24 Station Hybrid Turret - VDI/BOT |
| Rapid Traverse Rates X, Y / Z | 472 IPM / 1200 IPM |
| Machine Dimensions | N/A |
| Machin e Weight | 14,600 lbs. |
