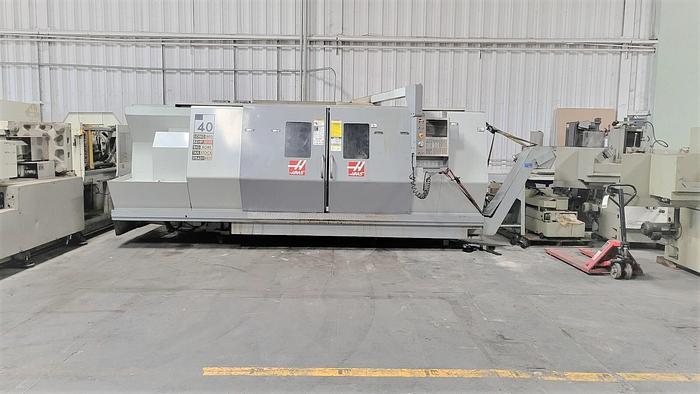

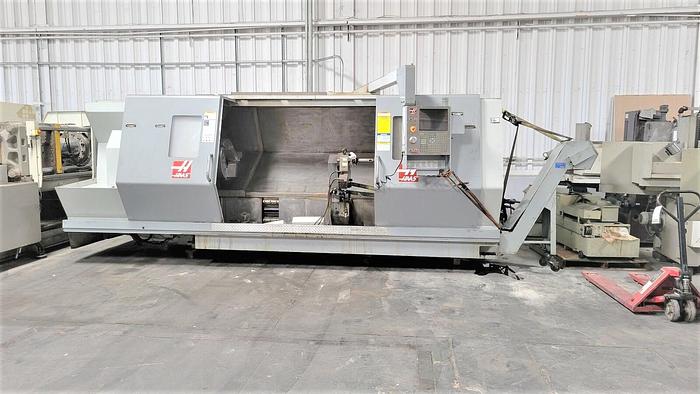

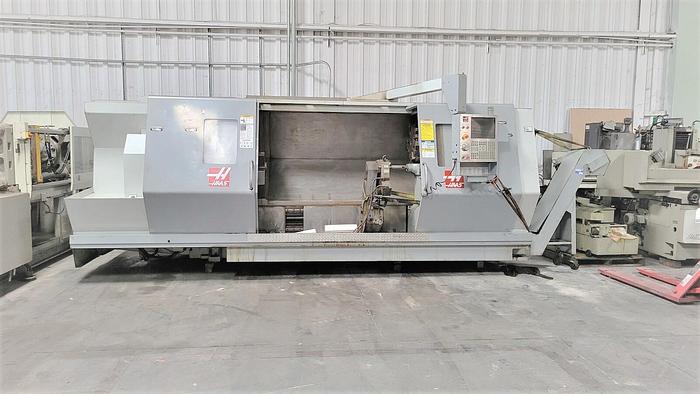

2006 Haas SL-40LB
No longer available
2006 Haas SL-40LB
$68,500 (USD)
Location:California
Description
18" 3 Jaw Hydraulic Chuck Big Bore Spindle with 6.5" Bar Capacity Chip Conveyor - Belt Style Extra Performance Package with 55 HP Spindle Motor
Fully Programmable Tailstock

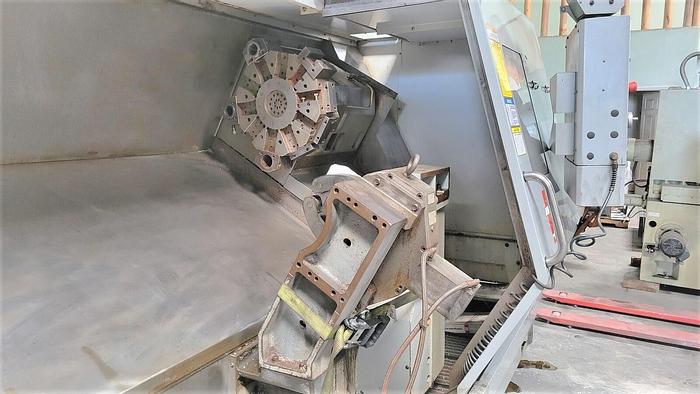

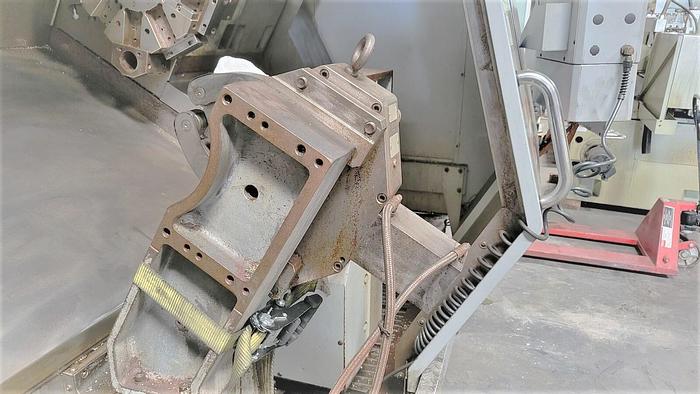

Hydraulic Steady Rest
High Pressure Coolant System
Visual Quick Code Programming
2 Speed Geared Headstock
Rear Chuck Enclosure Door
RS 232 Port Interface Rigid Tapping

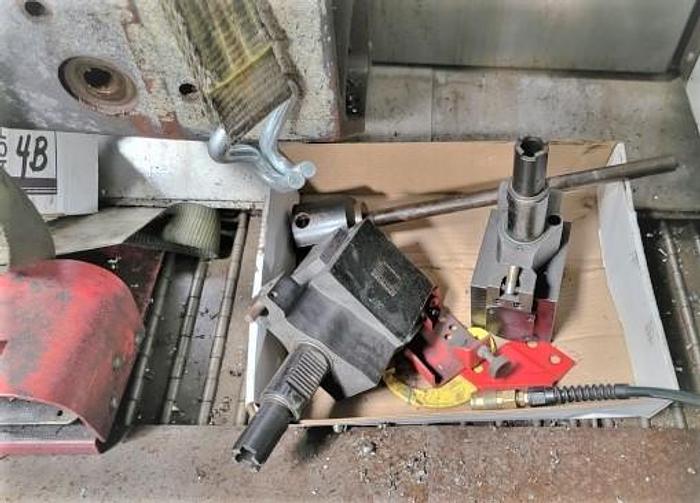

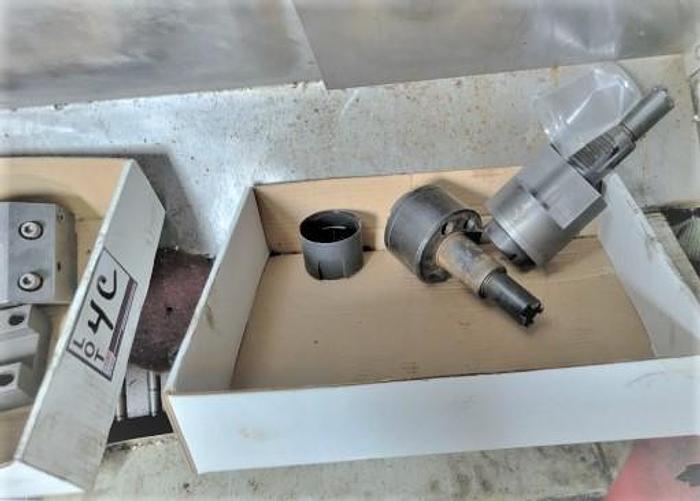

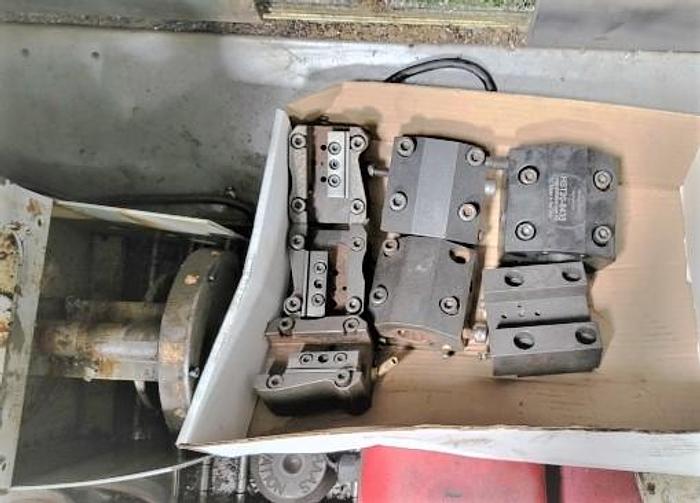

All Available Tool Blocks
Wired 208/230V Electrics
Manufactured New in November of 2006
Specifications
| Manufacturer | Haas |
| Model | SL-40LB |
| Year | 2006 |
| Condition | Used |
| Stock Number | 118086 |
| Control | Haas CNC Control |

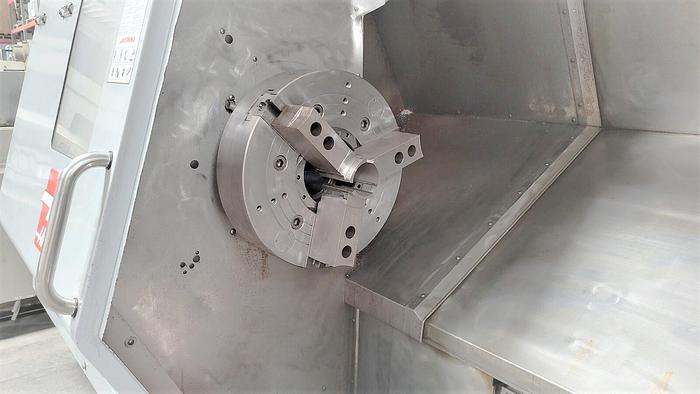

| Chuck Size | 18" 3 Jaw Hydraulic Chuck |
| Maximum Swing | 40" |
| Maximum Swing Over Cross Slide | 25" |
| Maximum Cutting Diameter | 25.5" |
| Maximum Cutting Length | 80" |
| Maximum Distance Between Centers | 81" |
| Maximum Bar Capacity | 6.5" |
| X-Axis Travel | 17" |
| Z-Axis Travel | 80" |
| Spindle Nose / Spindle Bore | A2-11" / 7.0" |
| Spindle Speeds | 1,400 RPM |
| Spindle Motor | 55 HP |
| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates | 710 IPM |
| Tailstock Body Travel / Tailstock Taper | 74" / MT #5 |
| Machine Dimensions | 195" x 102" x 89" |
| Machine Weight | 27,000 lbs. |
