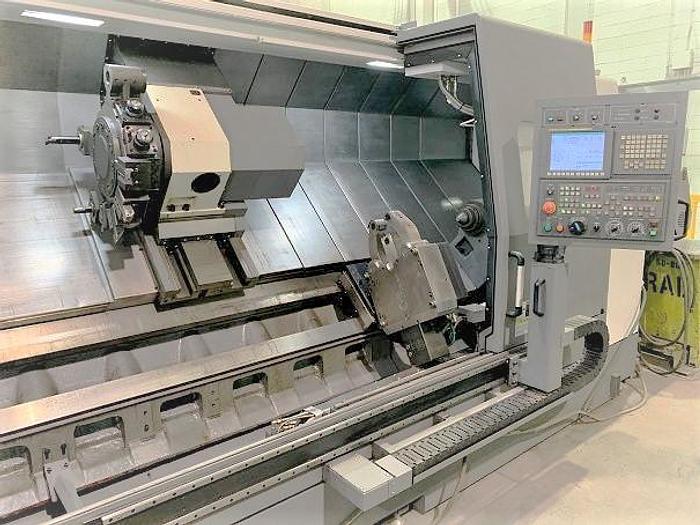

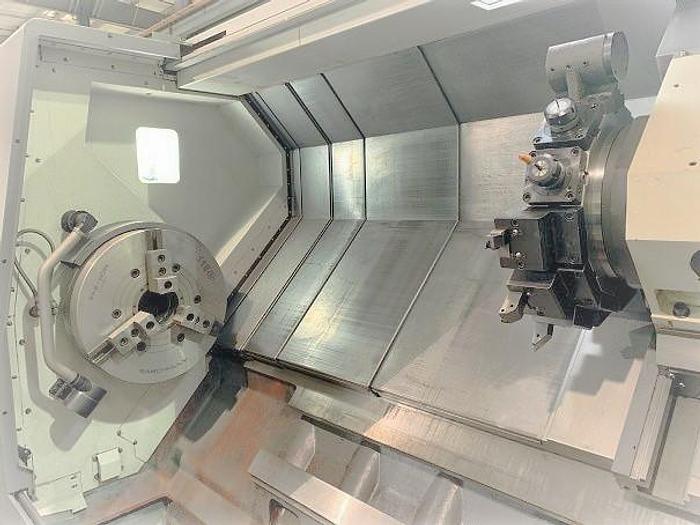

2014 Samsung SL-45MC/3000
No longer available
2014 Samsung SL-45MC/3000
$209,000 (USD)
Location:Alberta, Canada
Description
C Axis Spindle Rotation
Live Milling/Drilling Capability

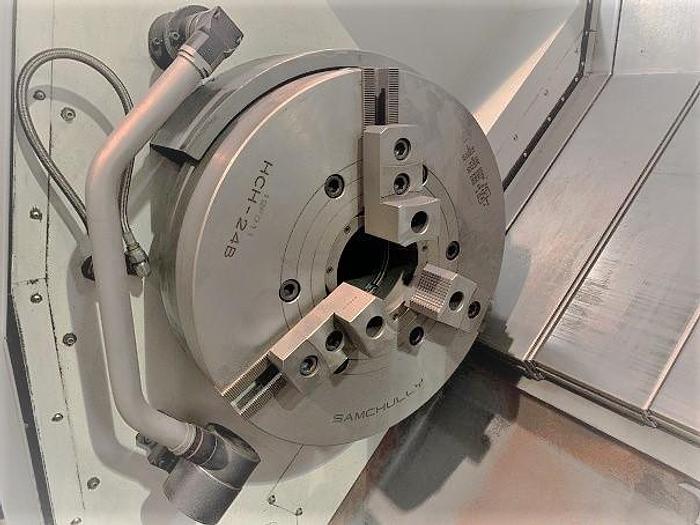

24" 3 Jaw Samchully HCH-24B Hydraulic Chuck
Chip Conveyor
Tailstock
Tool Presetter

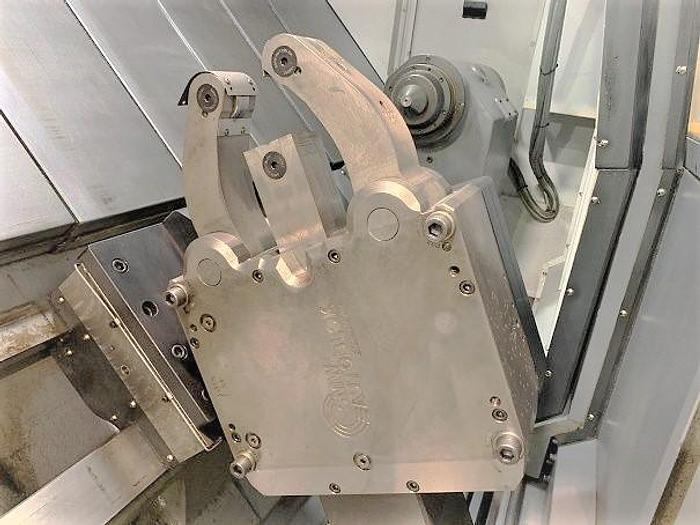

SMW SLU-5 Hydraulic Steady Rest for up to 14.75" diameter work
Complete Coolant System with Tank & Pump
Card Interface
RS 232 Port Interface
3 Color Machine Status Condition Lights
Heavy Boxed Ways and Slant Bed
All Available Static Tooling

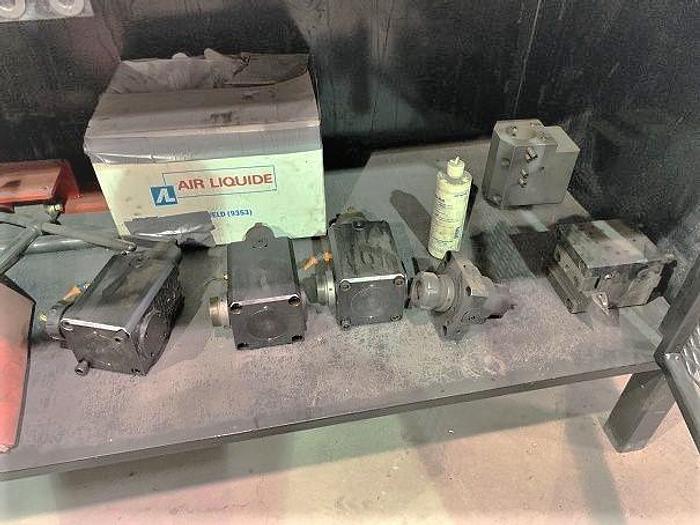

(6) Live Holder Includes 3 Axial and 3 Radial Type
All Available Manuals
Specifications
| Manufacturer | Samsung |
| Model | SL-45MC/3000 |
| Year | 2014 |
| Condition | Used |
| Stock Number | 118084 |

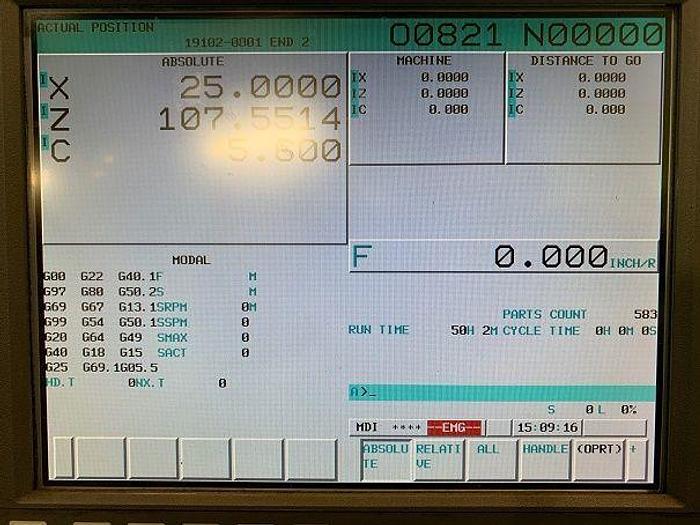

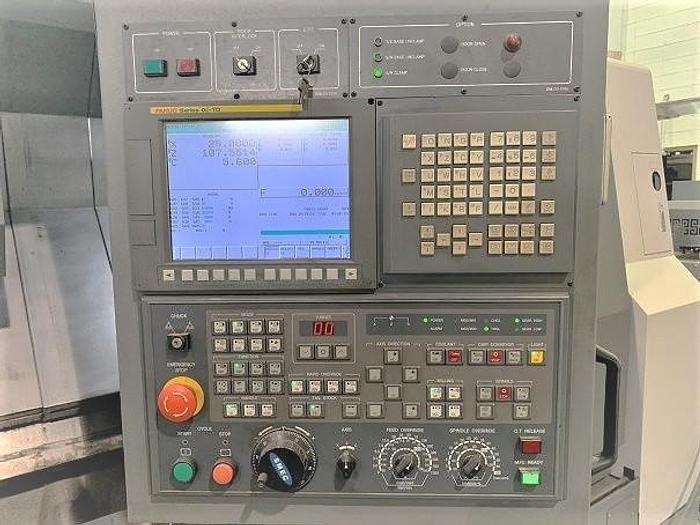

| Machine Control | Fanuc 0i-TD |
| Chuck size | 24" Hydraulic Chuck |
| Maximum Swing over Bed | 30.5" |
| Maximum Machining Diameter | 24.4" |
| Maximum Machining Length | 118" |
| Maximum Bar Capacity | 6.5" |
| X-Axis Travel | 13.8" |
| Z-Axis Travel | 123.23" |
| C Axis Spindle Rotation | .001 Degree |
| Spindle Nose / Spindle Bore | A2-15" / 7.12" |
| Spindle Speed | 4 - 1,800 RPM |
| Spindle Motor | 50 HP |
| Rotary Tool Speed / Rotary Motor | 4,000 RPM / 10 HP |

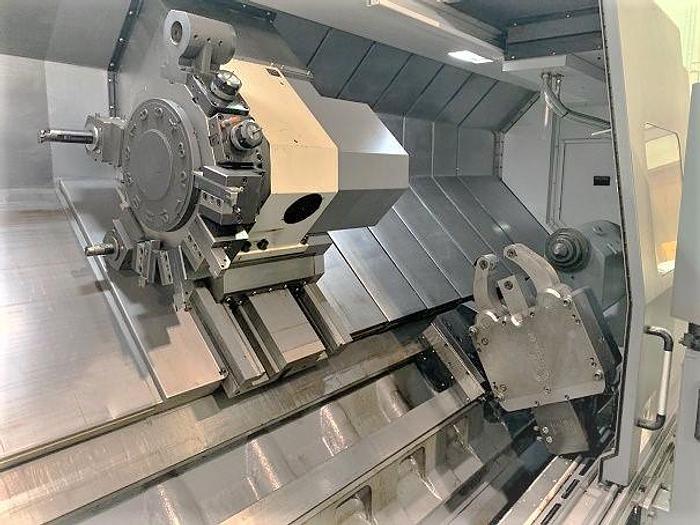

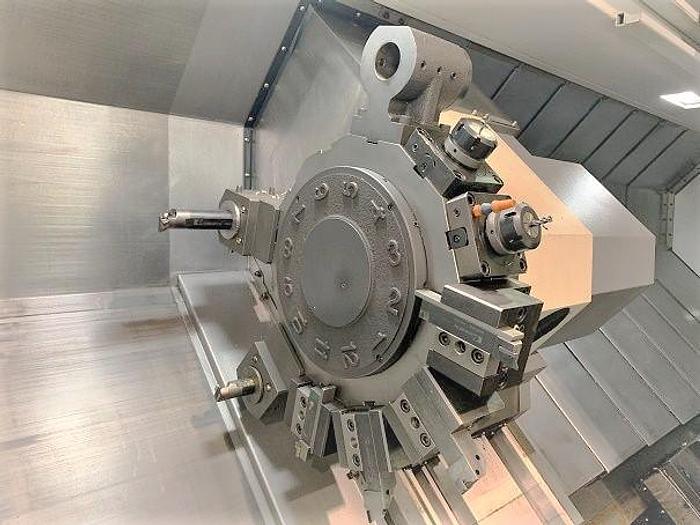

| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates | 787 IPM |
| Machine Dimensions | 288" x 97" x 115" |
| Machine Weight | 44,100 lbs. |
