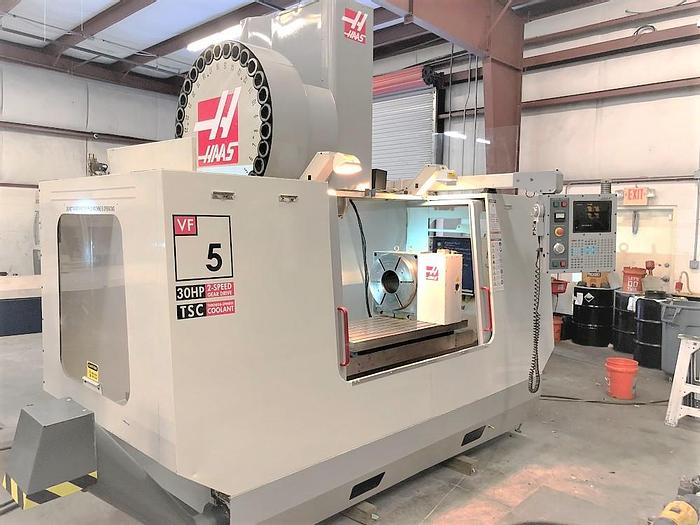

2002 Haas VF5/50
No longer available
2002 Haas VF5/50
$59,500 (USD)
Location:Texas
Description
4th Axis Pre-Wired

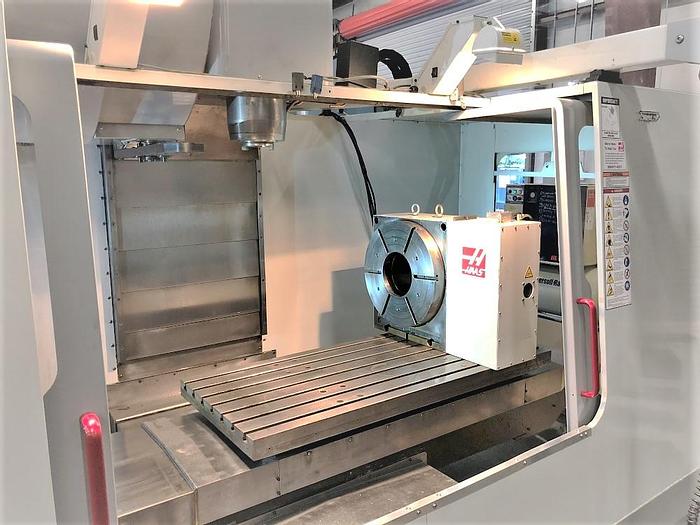

Haas HRT-450 4th Axis Rotary Table
30 Station Side Mount Tool Changer
2-Speed Gearbox
Programmable Coolant Nozzle
Rigid Tapping
Visual Quick Code Programming
High Intensity Lighting
Software Version M11.24N
3.5" Floppy Disk Drive Interface
RS 232 Port Interface
Coolant System with Tank & Pump
All Available Manuals
Wired 208/230V Electrics
**Has Had New Gearbox and Vector Drive Installed Since March of 2019
**Machine Has Been Used Little Since Being Purchased Used in February of 2019
Specifications
| Manufacturer | Haas |
| Model | VF5/50 |
| Year | 2002 |
| Condition | Used |
| Stock Number | 118083 |
| Table Size | 52"x23" |
| Maximum Table Load | 4,000 lbs |
| X-Axis Travel | 50" |
| Y-Axis Travel | 26" |
| Z-Axis Travel | 25" |
| Spindle Speed | 5,000 RPM |
| Spindle Taper | CAT 50 |
| Spindle Torque | 450 ft./lbs |
| Spindle Motor | 30 HP 2-Speed Geared Head |
| Distance Spindle Nose to Table Top | 7" to 32" |
| Rapid Traverse Rates | 710 IPM |
| Tool Magazine Capacity | 30 Position Side Mount |
| Machine Dimensions LxWxH | 137"x99"x105" |
| Machine Weight | 16,000 lbs |
