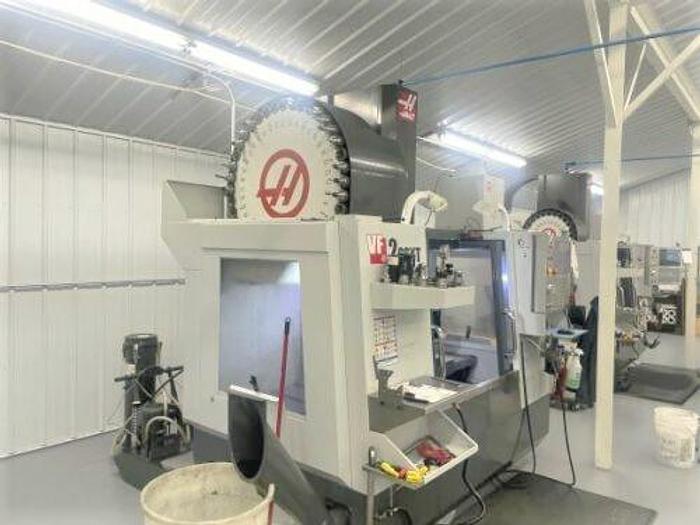

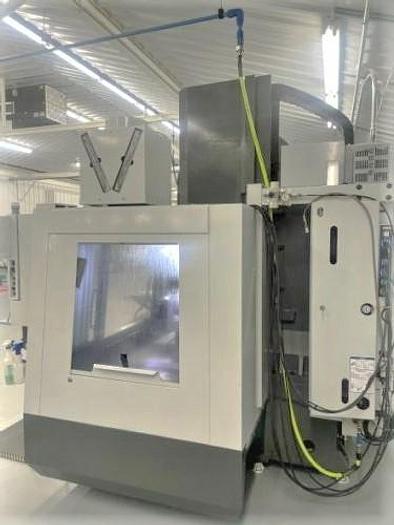

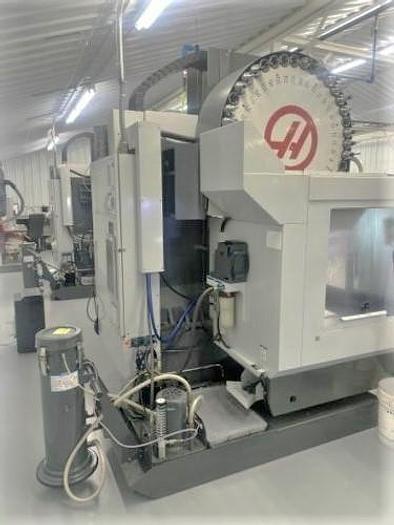

2015 Haas VF2SSYT
2015 Haas VF2SSYT
$79,950 (USD)
Ohio
Description
4th Axis Drive
5th Axis Drive
40+1 Position Side Mounted Tool Changer
Haas Wireless Probing Tool & Part Probing - Renishaw
300 PSI Coolant Through the Spindle
Auxiliary Coolant Filter System
15,000 RPM Spindle Option
High Speed Machining
Auger Style Chip Conveyor
Programmable Coolant Nozzle
Spindle Orientation
User Definable Macros
Coordinate Rotation & Scaling
Visual Programming System
High Intensity Lighting
Coolant System with Tank & Pump
Ethernet Interface
USB Port Interface
RS 232C Port Interface for DNC Operation
All Available Manuals
Wired 195-260 Volt Electrics

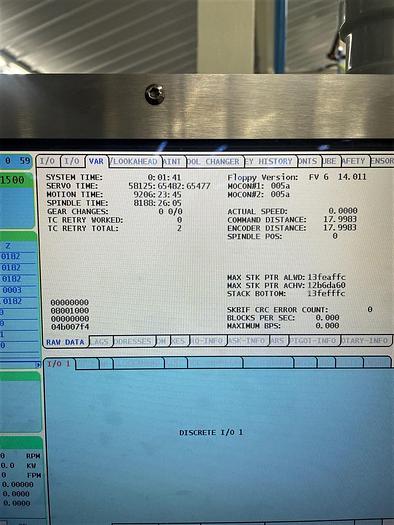

Motion Hours 9,206
Spindle Hours 8,188
*Price Today as Equipped at $ 121,445 with Lengthy Delay in Shipping
**ONLY 4th and 5th Axis Drives are included, Trunnion Table is NOT included in sale at this price**
**Haas TR-160 Available at Additional Cost** - **New Cost is $39,990**
PRICE INCLUSIVE OF TR-160 is $99,500, Price is $176,835 with the TR160 included
Specifications
| Manufacturer | Haas |
| Model | VF2SS YT |
| Year | 2015 |
| Condition | Used |
| Stock Number | 118082 |
| Pallet Size / Number of Pallets | 36" x 18" |
| Max table load | 1,500 lbs |
| X axis travel | 30" |
| Y axis travel | 20" |
| Z axis travel | 20" |
| Spindle taper | CAT #40 |
| Spindle speed | 15,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4" - 24" |
| Number of tool positions | 40 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 106" x 101" x 101 " |
| Machine weight (approximately) | 9,500 lbs. |
