2005 Okuma Captain L370M
No longer available
2005 Okuma Captain L370M
$34,500 (USD)
Location:New York, NY
Description
10" 3 Jaw Hydraulic Chuck
Spindle Orientation
M-Axis Orientation Live Milling / Drilling Capability Tailstock-Tow Along Type Chip Conveyor
Parts Catcher (needs repair)
Tool Presetter (needs repair)
Hi-G Control
Synchronous Tapping
Cycle Time Calc
LAP 4
User Task 2
3D Animation
Animation

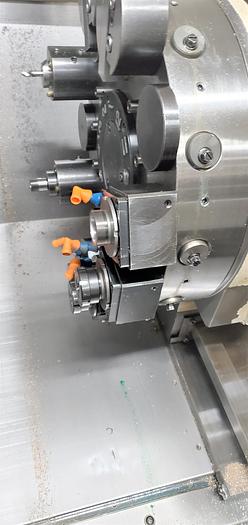

VDI Turret
NC Turret Coolant Tank with Pump
Floppy Drive Interface

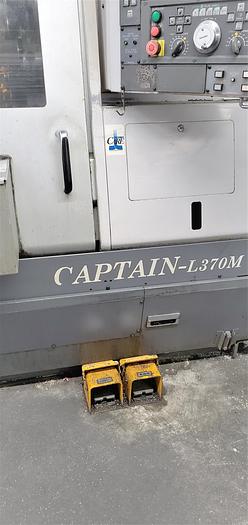

RS 232 Port Interface Foot Pedal Leveling Pads
220/440V Multi Tap Transformer

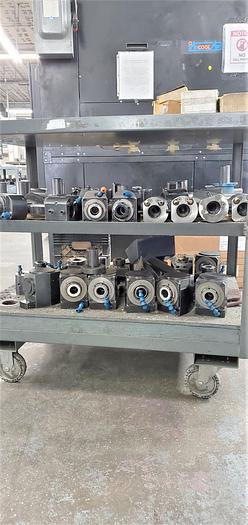

All Available Live Tool Holders All Available Static Tooling All Available Manuals
Specifications
| Manufacturer | Okuma |
| Model | Captain L370M |
| Year | 2005 |
| Condition | Used |
| Stock Number | 118079 |

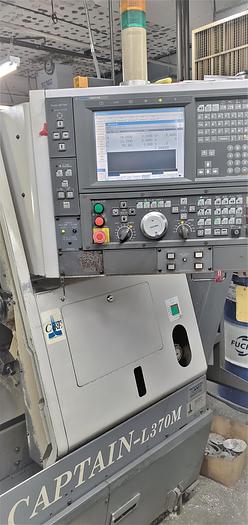

| Control | OSP-P100L Control |
| Chuck Size | 10" Hydraulic Chuck |
| Maximum Swing over Bed | 20.87" |
| Maximum Cutting Diameter | 13.38" |
| Maximum Cutting Length | 19.7" |
| Maximum Bar Capacity | 2.01" |
| X-Axis Travel | 10.23" |
| Z-Axis Travel | 20.47" |
| C-Axis Rotation | .001 Degree |
| Spindle Bore | 2.44" |
| Spindle Speed | 4,500 RPM |
| Spindle Motor | 20 HP |
| Rotary Tool Speed / Rotary Motor | 4,500 RPM / 7.5 HP |
| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X / Z | 787 IPM / 984 IPM |
| Tailstock Quill Diameter / Center | 3.54" / #5 MT |
| Machine Dimensions | 96" x 76" x 72" |
| Machine Weight | 9,700 lbs. |
