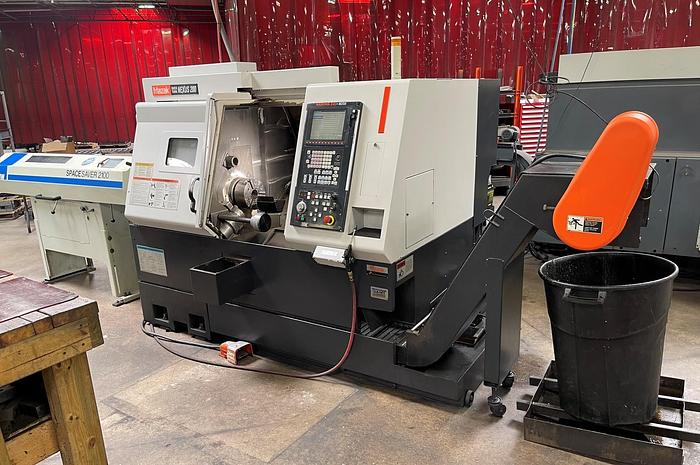

2005 Mazak Nexus QTN 200

2005 Mazak Nexus QTN 200

$44,950 (USD)

Texas

orCall (863) 439-6066

Description

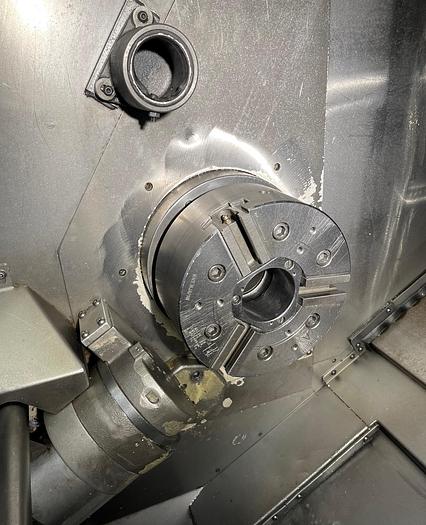

8" 3 Jaw Hydraulic Chuck

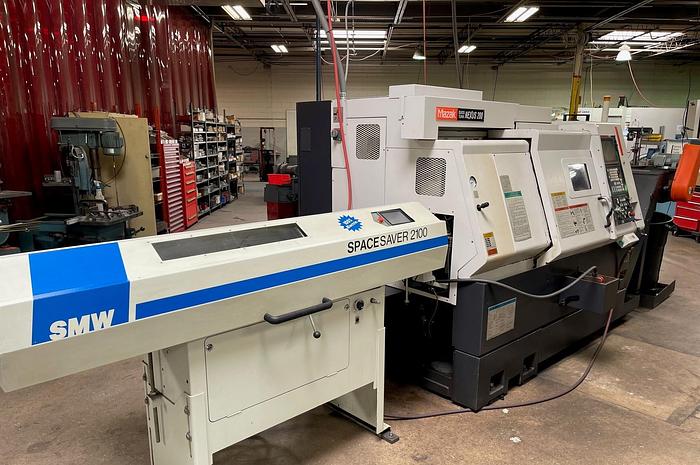

SMW Spacesaver 2100 Short Bar Feeder

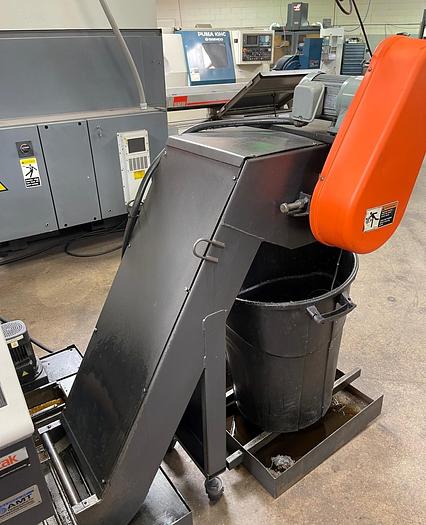

Chip Conveyor

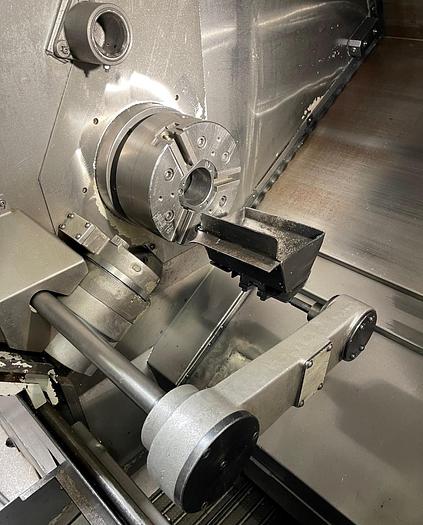

Parts Catcher

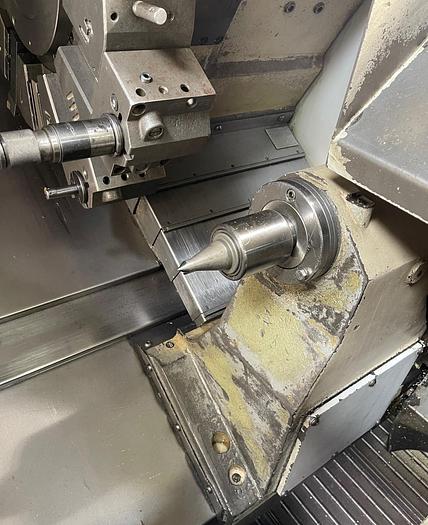

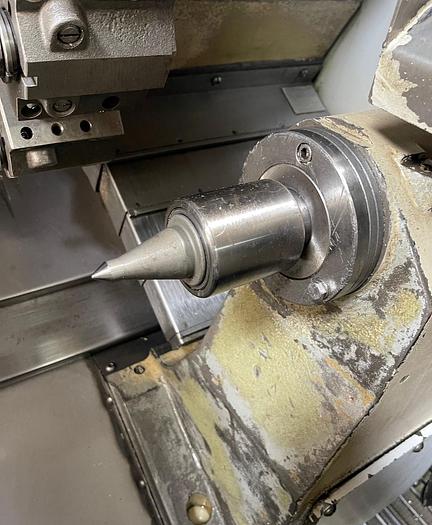

Programmable Tailstock

IC Memory Card Interface

PCM CIA Interface (2 slots)

3.5" Floppy Disk Interface

RS232 Port Interface

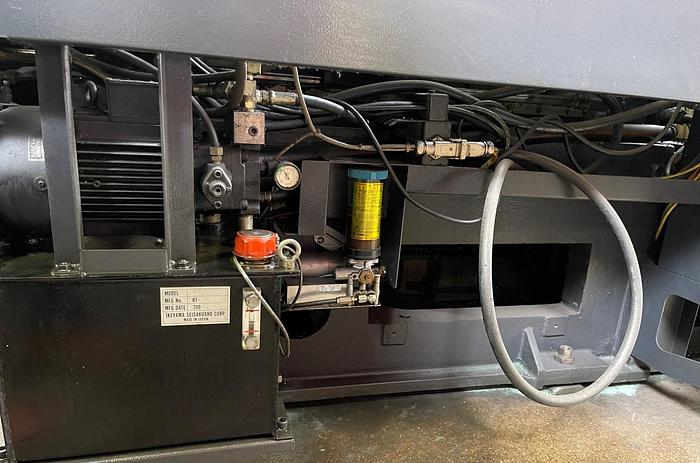

Hydraulic Pressure Interlock

Chuck Open/Close Confirmation

Door Interlock

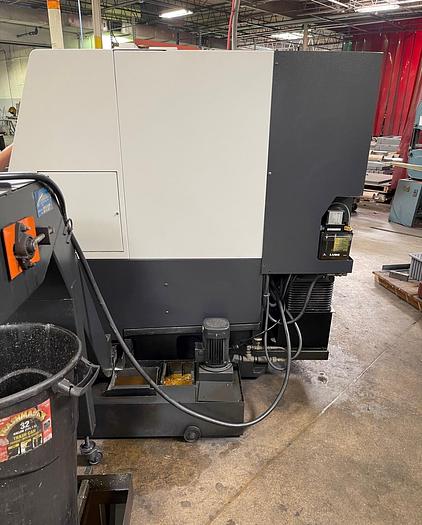

Tool Path Solid Model Multi-Tap Transformer Coolant Tank with Pump All Available Manuals

All Available Tooling


Specifications

ManufacturerMazak
ModelNexus QTN 200
Year2005
ConditionUsed
Stock Number118077

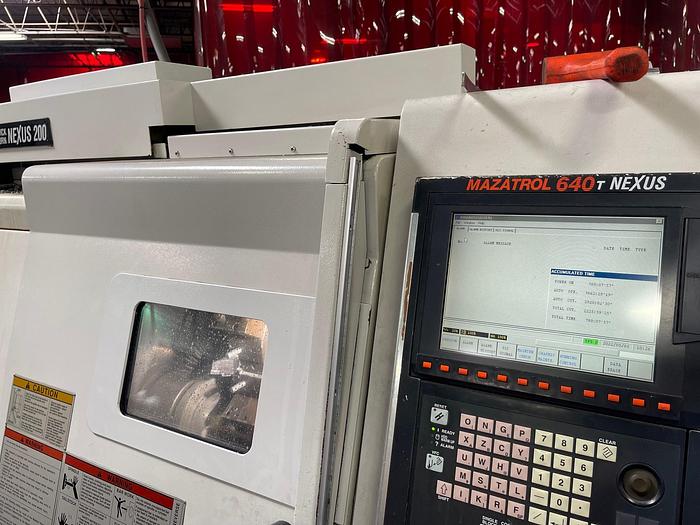

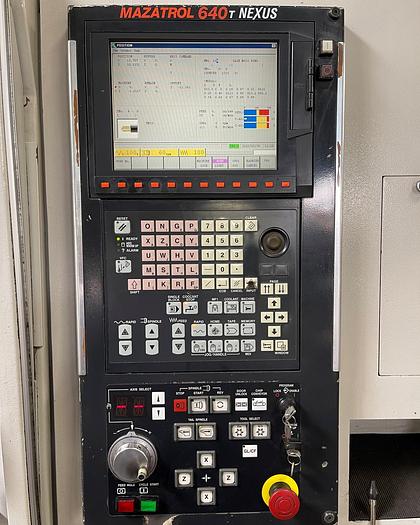

ControlMazatrol Fusion 640T Nexus
Chuck Size8" 3-Jaw Hydraulic
Maximum Swing24"
Maximum Cutting Diameter14"
Maximum Machining Length20.1"
X-Axis Travel7.5"
Z-Axis Travel21.125"
Spindle Nose / Bore / Bar CapacityA2-6" / 3.0" / 2.00"
Spindle Speeds5,000 RPM
Spindle Motor35 HP

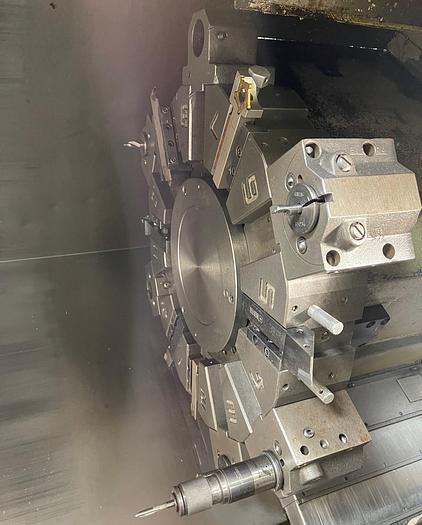

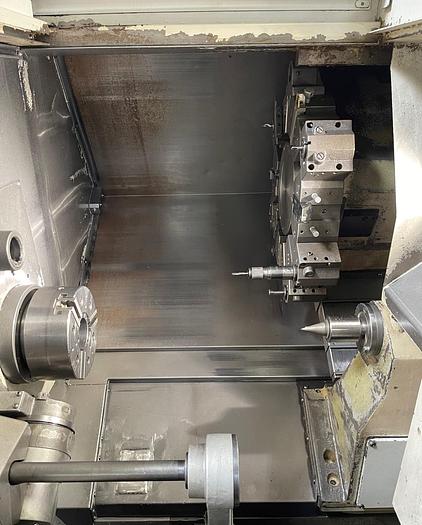

Number of Turret Positions12 Position Drum
Rapid Traverse Rates X/Z1181 / 1299 IPM
Tailstock Body Travel / Center21.75" / MT#5
Machine Dimensions LxWxH99.6" x 70.1" x 72.4"
Machine Weight10,803 lbs.
