2006 Haas VF3SS
No longer available
2006 Haas VF3SS
$45,900 (USD)
Oklahoma
Description

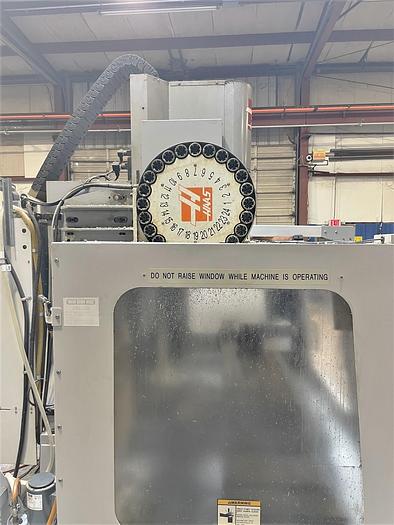

24+1 Position Side Mounted Tool Changer
4th Axis Drive & Wiring

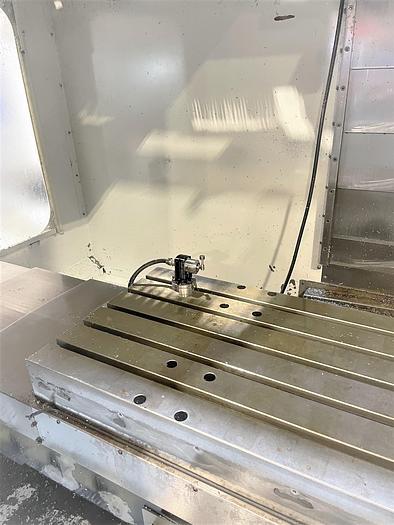

Haas Wireless Tool & Part Probing
Auger Style Chip Conveyor
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Remote Jog Handle
Rigid Tapping
16MB Expanded Program Memory
Programmable Coolant Nozzle
Coolant Tank with Pump
Inline Direct Drive 12,000 RPM Spindle
RS 232C Port Interface for DNC Operation
All Available Manuals

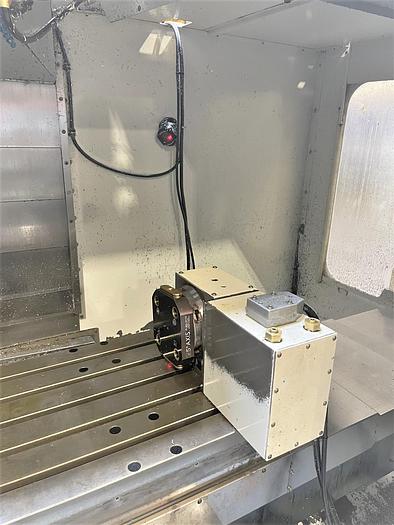

NOTE **Rotary Table with 5th Axis Vise is NOT included with machine**
Specifications
| Manufacturer | Haas |
| Model | VF3SS |
| Year | 2006 |
| Condition | Used |
| Stock Number | 118072 |
| Table size | 48" x 18" |
| Max table load | 1,750 lbs |
| X axis travel | 40" |
| Y axis travel | 20" |
| Z axis travel | 25" |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4.2" - 29.2" |
| Number of tool positions | 24 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 122" x 98" x 98.5" |
| Machine weight (approximately) | 12,500 lbs. |
