2005 Matsuura H.Plus 630 6 Pallet Pool HMC
No longer available
2005 Matsuura H.Plus 630 6 Pallet Pool HMC
$199,500 (USD)
Washington
Description

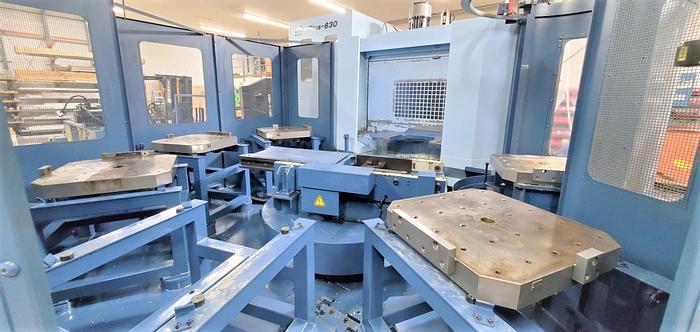

6 Pallet Rotary Type Changer System
Single Loading Station
240 Station Matrix Type Tool Magazine Full 4th Axis Rotary Table High Pressure Coolant Through Spindle Probing System Chip Conveyor
Overhead Coolant Rigid Tapping Remote Jog Handle
Spindle Oil Chiller
3.5" Floppy Disk Drive
RS-232 C Port for DNC Interface

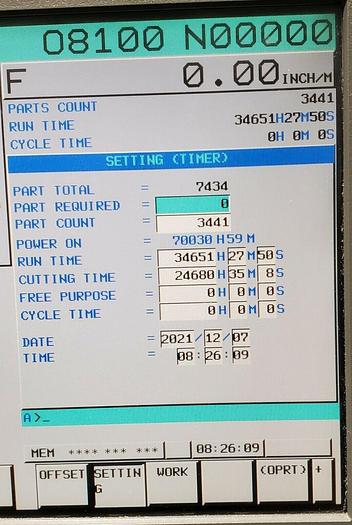

Run Time Hours 34,651
Cutting Hours 24,680
Specifications
| Manufacturer | Matsuura |
| Model | H.Plus 630 6 Pallet Pool HMC |
| Year | 2005 |
| Condition | Used |
| Stock Number | 118064 |

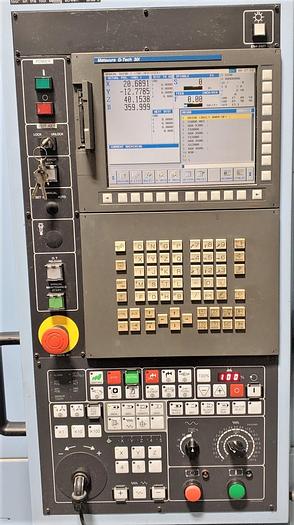

| Control | Matsuura G-Tech 30i |
| Pallet Size / Number of Pallets | 24.8"x24.8" / 6 Pallet Pool |
| Table Indexing | 0.001 Degree Indexing - Full 4th Axis |
| Maximum Table Load | 2,640 lbs. |
| Maximum Workpiece Diameter / Height | 41.33" / 43.89" |
| X-Axis Travel | 41.33" |
| Y-Axis Travel | 36.22" |
| Z-Axis Travel | 38.97" |
| Spindle Taper | #50 Taper |
| Spindle Speeds | 12,000 RPM |
| Spindle Motor | 40 HP |
| Rapid Traverse Rates | 1969 IPM |
| Number of Tool Positions | 240 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 5.9"/19.68"/44 lbs |
| Machine Dimensions | 32' 6" x 16.5' |
| Machine Weight | 50,000 lbs. (machine only) |
