2011 Haas VF2SS
No longer available
2011 Haas VF2SS
Oklahoma
Description
24+1 Position Side Mounted Tool Changer
Coolant thru the Spindle
Wireless Probe System

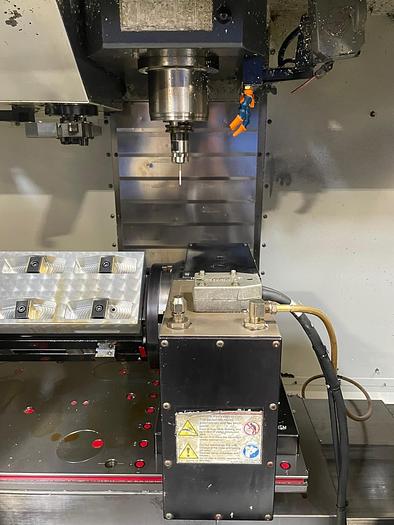

4th Axis Drive
Auger Style Chip Conveyor
Programmable Coolant Nozzle
High Intensity Lighting
Rigid Tapping
RS 232C Port Interface for DNC Operation
All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | VF2SS |
| Year | 2011 |
| Condition | Used |
| Stock Number | 118060 |
| Table size | 36"x14" |
| Max table load | 1,500 lbs |
| X axis travel | 30" |
| Y axis travel | 16" |
| Z axis travel | 20" |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4" - 24" |
| Number of tool positions | 24 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 88" x 93" x 106"H |
| Machine weight (approximately) | 9000 lbs. |
