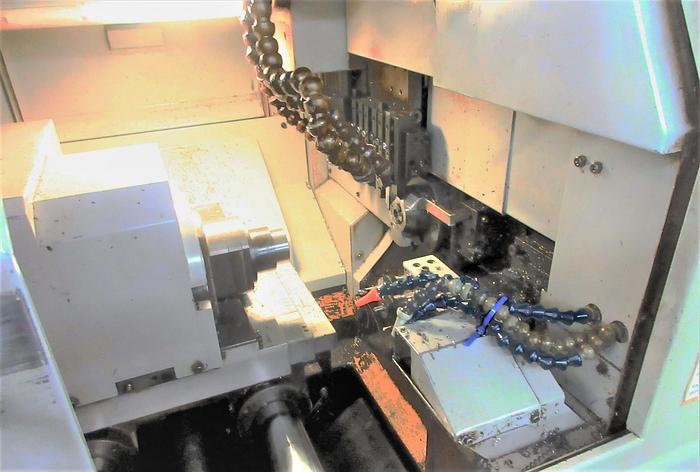

1999 Citizen L20 Type VII 5M7
Sold
1999 Citizen L20 Type VII 5M7
$39,500 (USD)
Location:New Mexico
Description
C Axis Capability on both Main & Subspindle - 1 Degree

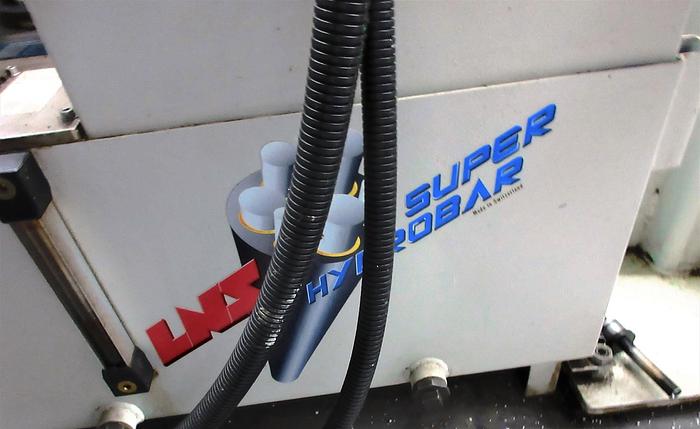

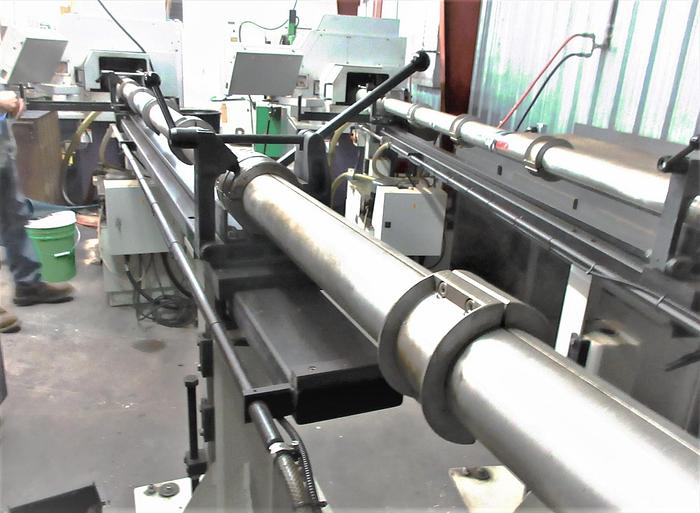

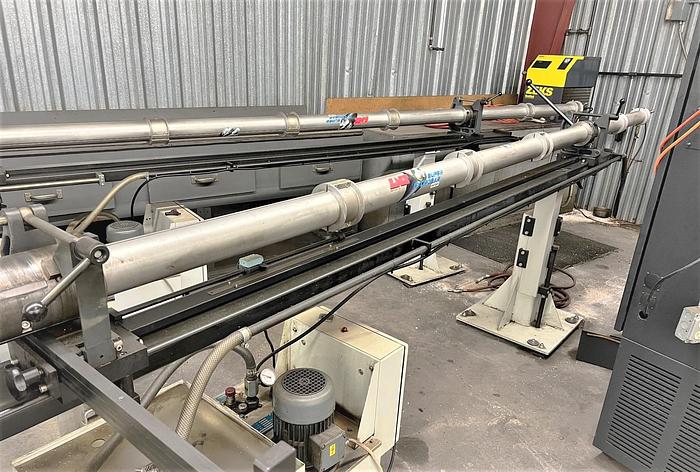

12' LNS 3.20 HS-4.8 Super Hydrobar Gatlin Style Barfeeder
Rotary Guide Bushing Unit
0.812" Main Spindle Collet Chuck
Back Spindle Collet Chuck
Workpiece Separator
Back Spindle Air Blow Unit

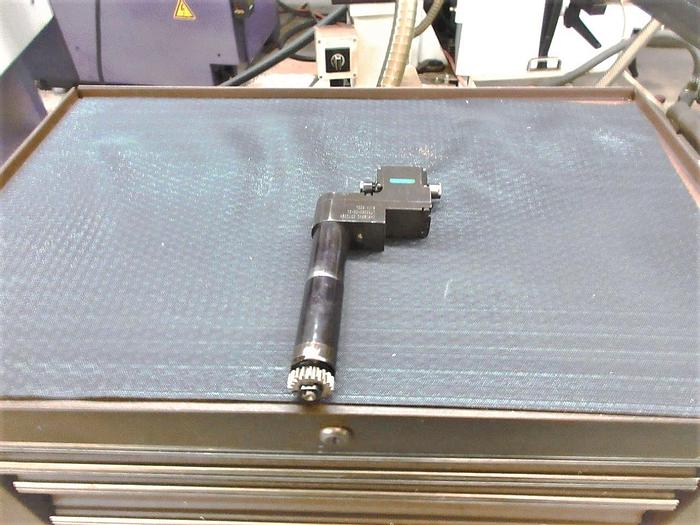

4 Rotary Tools Drive System
Cutting Oil Tank
Miscellaneous Tooling
All Available Manuals
1 Owner Machine, Ran Oil, Cut Less than (2) Shifts Weekly Cutting Primarily Titanium and Plastic
Specifications
| Manufacturer | Citizen |
| Model | L20 Type VII 5M7 |
| Year | 1999 |
| Condition | Used |
| Stock Number | 118054 |

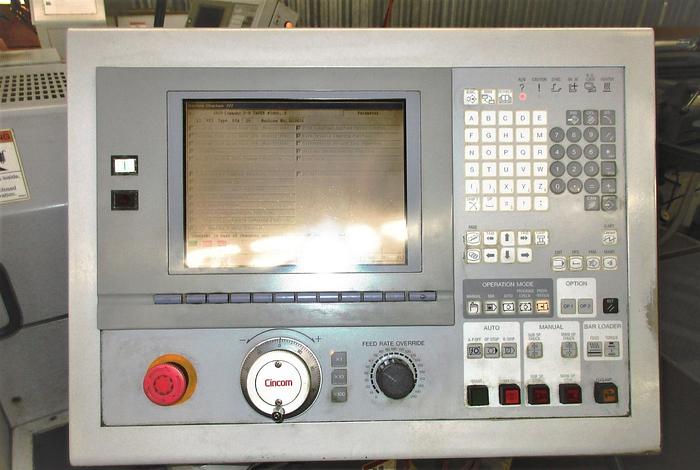

| Machine Control | Cincom System M6 |
| Machining Diameter | .813" |
| Maximum Bar Capacity | .813" |
| Maximum Cutting Length | 7.88" |
| Maximum Drilling Diameter | .375" |
| Main Spindle Indexing | C Axis - 1 Degree |
| Subspindle Indexing | C Axis - 1 Degree |
| Main & Subspindle Speeds | 10,000 RPM / 8,000 RPM |
| Main Spindle / Sub Spindle Motor | 5 HP / 2 HP |
| Number of Tool Positions | 16 Total / 4 Live Tool Positions |
| Gang Slide Tool Positions | 6 Turning Positions |
| Front / Back Work Tool Post Positions | 3 Front ID / 3 Back ID |
| Live Milling Speed / Motor | 5,000 RPM / 1.34 HP |
| Controllable Axes | 4 |
| Machine Dimensions LxWxH | 81"x43"x71" |
| Machine Weight | 4,070 lbs |
