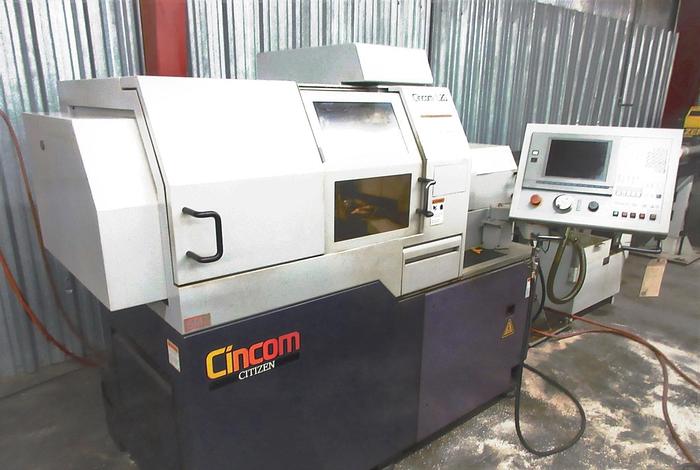

2001 Citizen L20 Type VII 5M7
No longer available
2001 Citizen L20 Type VII 5M7
$49,500 (USD)
New Mexico
Description
C Axis Capability on both Main & Subspindle (1 Degree)
12' LNS 3.20 HS-4.8 Super Hydrobar Gatlin Style Barfeed
10,000 RPM High Speed Main Spindle
Spindle Sychronization
Rigid Tapping
Canned Cycles for Drilling
Rotary Guide Bushing Unit
0.812" Main Spindle Collet Chuck
Back Spindle Collet Chuck
Workpiece Separator
Back Spindle Air Blow Unit
4 Rotary Tools Drive System
Cutting Oil Tank
Manuals
All Available Tooling
1 Owner Machine, ran oil, 2 shifts per week cutting titanium and plastic
Specifications
| Manufacturer | Citizen |
| Model | L20 Type VII 5M7 |
| Year | 2001 |
| Condition | Used |
| Stock Number | 118053 |
| Machine Control | CIncom System M6 |
| Machining Diameter | .813" |
| Maximum Bar Capacity | .813" |
| Maximum Cutting Length | 7.88" |
| Maximum Drilling Diameter | .375" |
| Main Spindle Indexing | C Axis - 1 Degree |
| Subspindle Indexing | C Axis - 1 Degree |
| Main & Subspindle Speeds | 10,000 rpm / 8,000 rpm |
| Main Spindle / Sub Spindle Motor | 5 HP / 2 HP |
| Number of Tool Positions | 16 Total / 4 Live Tool Positions |
| Gang Slide Tool Positions | 6 Turning Positions |
| Front / Back Work Tool Post Positions | 3 Front ID / 3 Back ID |
| Live Milling Speed / Motor | 5,000 RPM / 1.34 HP |
| Controllable Axes | 4 |
| Machine Dimensions LxWxH | 81"x43"x71" |
| Machine Weight | 4,070 lbs |
