1973 Monarch 10EE
No longer available
1973 Monarch 10EE
Location:California
Description
Inch Threading
Collet Chuck
Quick Change Tool Post

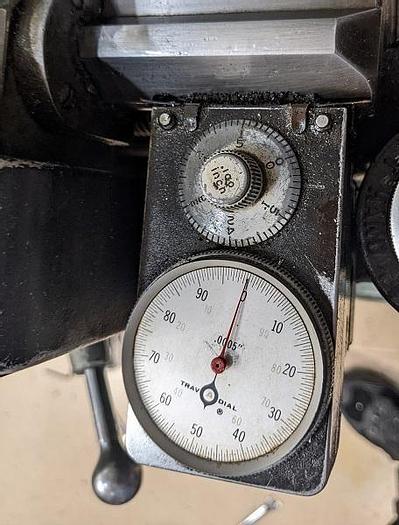

Thread Dial
Work Light
Specifications
| Manufacturer | Monarch |
| Model | 10EE |
| Year | 1973 |
| Condition | Used |
| Stock Number | 118048 |
| Chuck Size | Collet Nose |
| Maximum Swing over Bed | 12.5" |
| Maximum Swing Over Cross Slide | 7.25" |
| Distance Between Centers | 20" |
| Spindle Speeds | 25 to 4,000 rpm |
| Spindle Bore | 1.41" |
| Range of Threads | 3 to 184 |
| Number of Feed Changes | 50 |
| Leadscrew Diameter | 1" |
| Leadscrew Pitch | 8 TPI |
| Tailstock Quill Travel | 3.5" |
| Tailstock Spindle Diameter | 1.75" |
| Machine Dimensions LxWxH | 62"x33"x56" |
| Machine Weight | 3,450 lbs |
