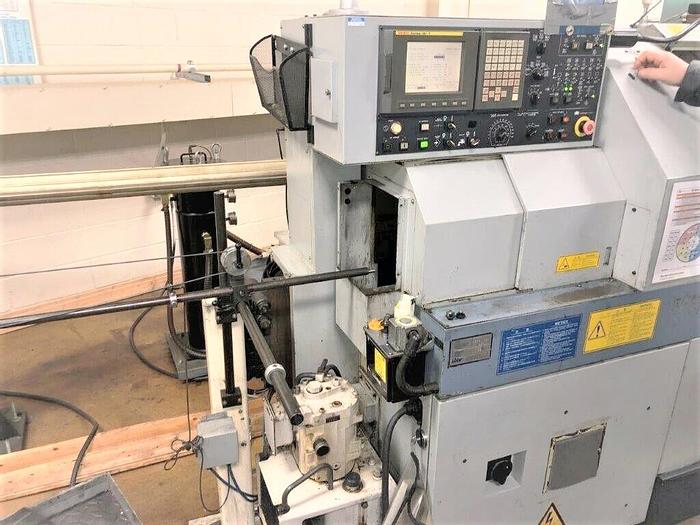

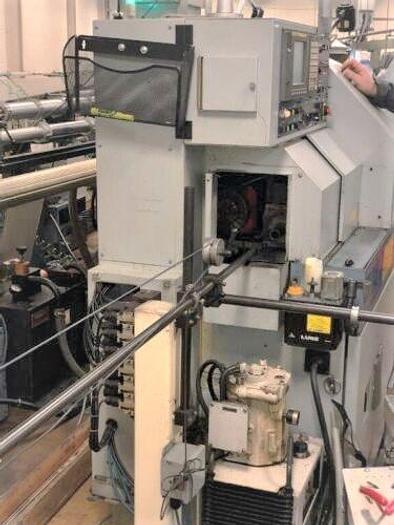

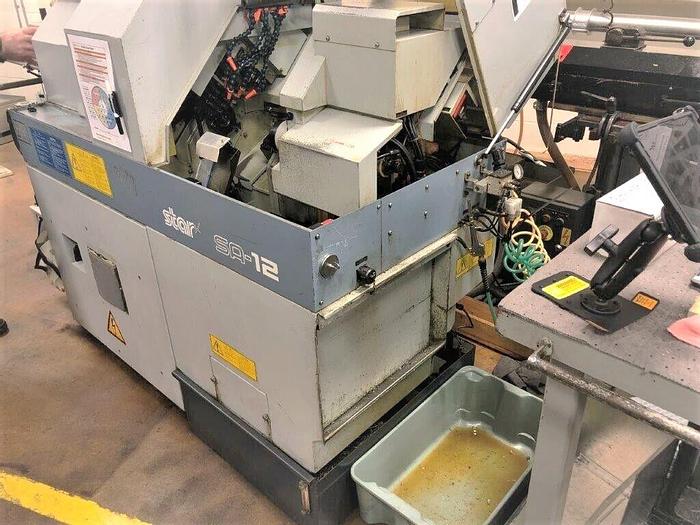

2000 Star SA-12/16
No longer available
2000 Star SA-12/16
$29,500 (USD)
Location:New Jersey
Description
C Axis with 15 Degree Increment
Milling/Drilling Capability

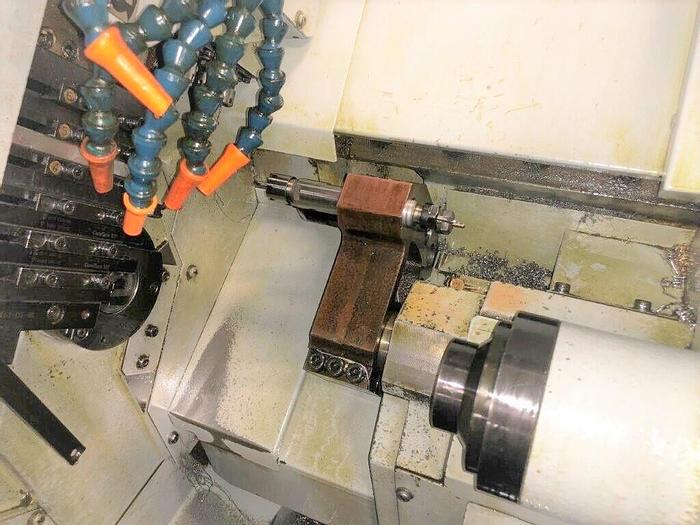

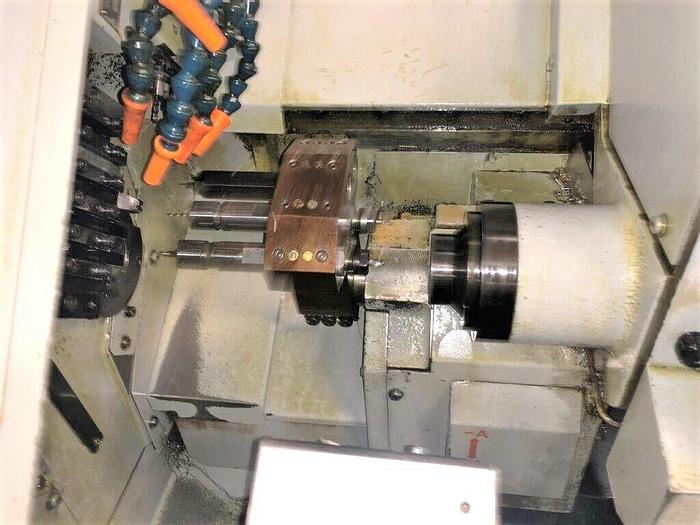

Front & Rear Facing 4 Spindle Attachment for Simultaneous Drilling

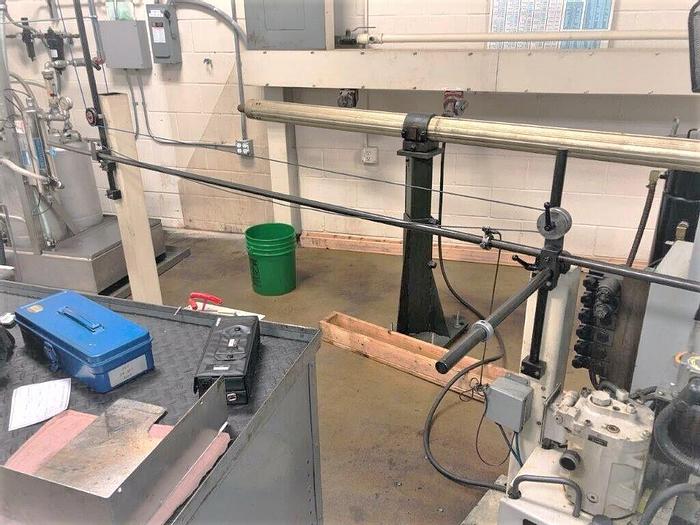

Gravity Barfeed
16MM Guide Bushing
Card Interface
RS 232 Port Interface
Coolant System with Tank
Wired 200V Electrics
All Available Manuals
Cutting Hours 44,927
Specifications
| Manufacturer | Star |
| Model | SA-12/16 |
| Year | 2000 |
| Condition | Used |
| Stock Number | 118046 |

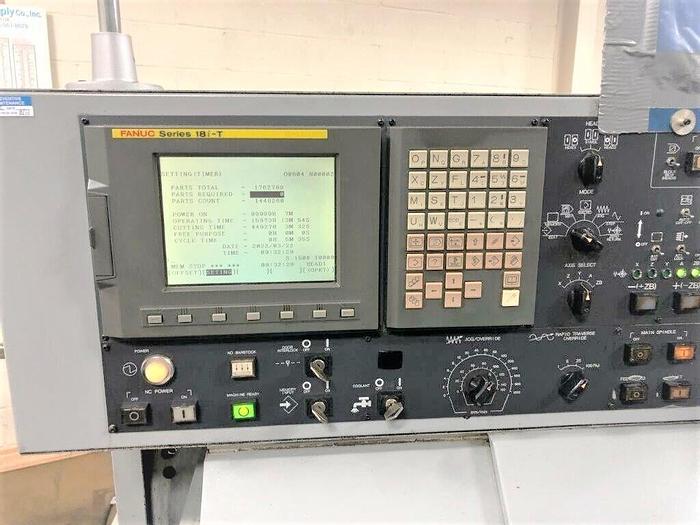

| Machine Control | Fanuc 18i-T |
| Maximum Turning Diameter | .50" |
| Maximum Drilling Capacity Stationary/Power | .281" / .156" |
| Spindle Speeds | 500 - 12,000 RPM |
| Spindle Index Increment | 15 Degrees |
| Spindle Motor | 5 HP |

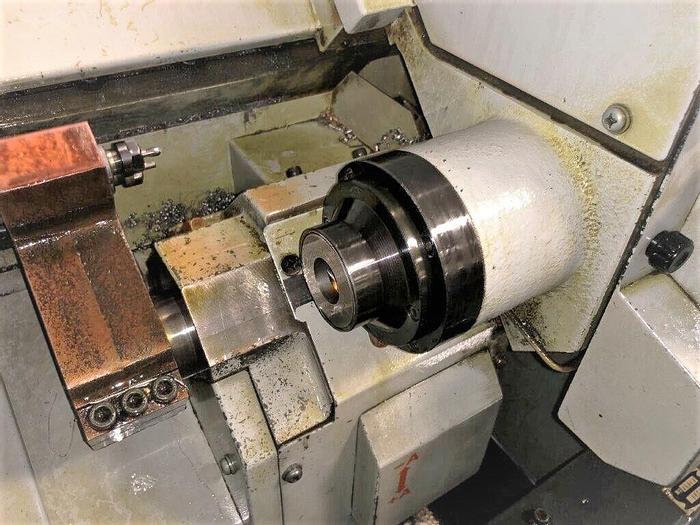

| Subspindle Speed | 500 - 8,000 RPM |
| Subspindle Motor | .67 HP |

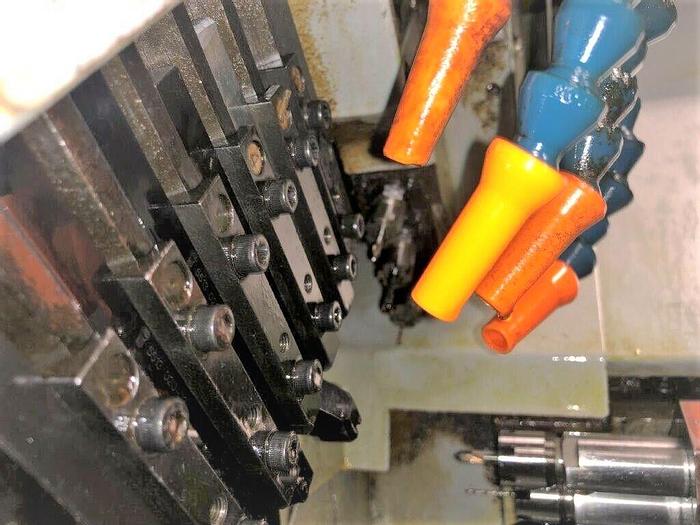

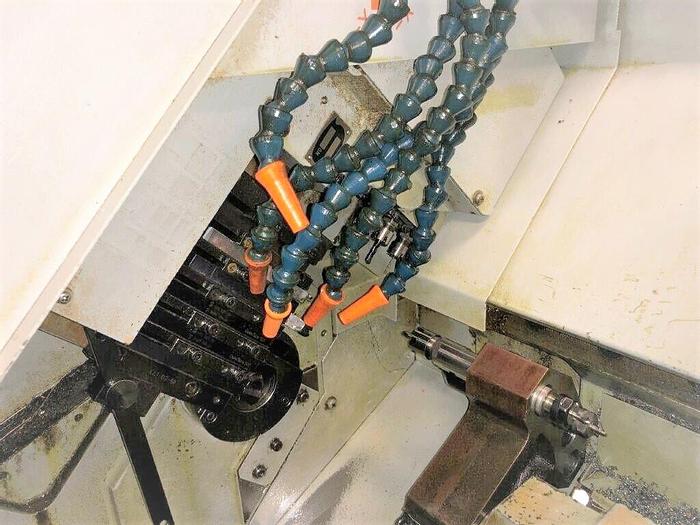

| Number of Tools OD / ID / Backworking ID / Cross Mill-Drill | 6 OD / 4 ID / 4 Backwork / 3 Cross Mill-Drill |
| Machine Dimensions LxWxH | 83" x 31" x 65" |
| Machine Weight | 3,740 lbs |
