2009 Femco BMC-110R2
No longer available

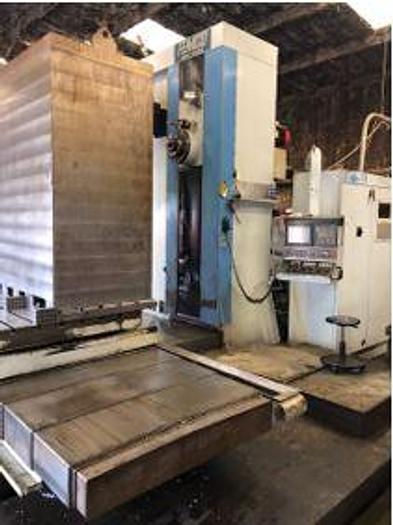

2009 Femco BMC-110R2
Location:Texas
Description
220V / 3 Phase / 60 Hz (200 Amps)Chip conveyor

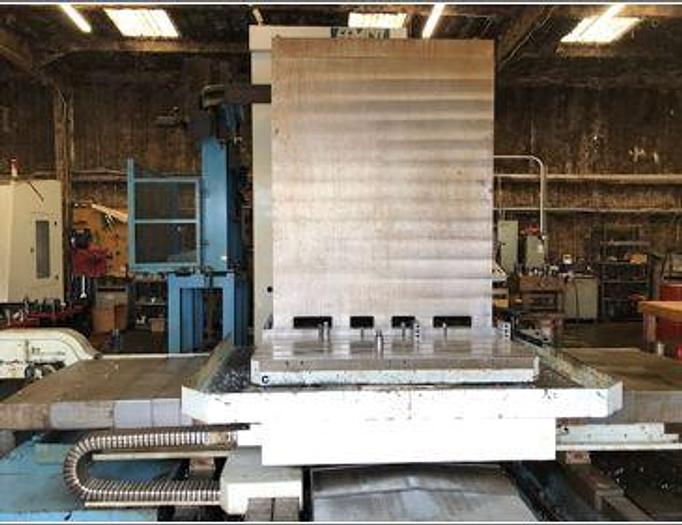

Large Tombstone
Remote Jog Handle
All Available Manuals
Specifications
| Manufacturer | Femco |
| Model | BMC-110R2 |
| Year | 2009 |
| Condition | Used |
| Stock Number | 118045 |

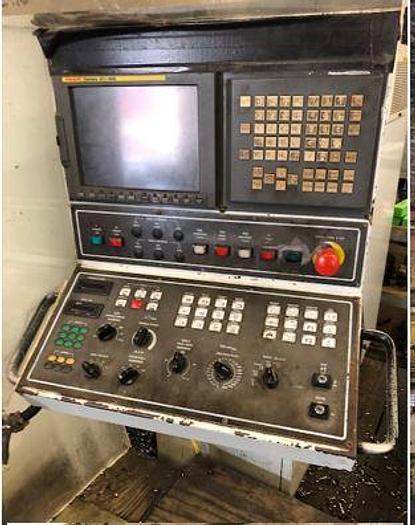

| Machine Control | Fanuc 21iM-B |
| Table Size | 62.99"x56.69" |
| Maximum Table Load | 13,900 lbs |
| X-Axis Travel | 78.74" |
| Y-Axis Travel | 70.87" |
| Z-Axis Travel | 66.93" |
| W-Axis Travel | 19.69" |
| B-Axis Travel | .001 Degree |
| Spindle Diameter | 4.33" |
| Spindle Taper | CAT 50 |
| Spindle Speed | 2,500 RPM |
| Spindle Motor | 35 HP |

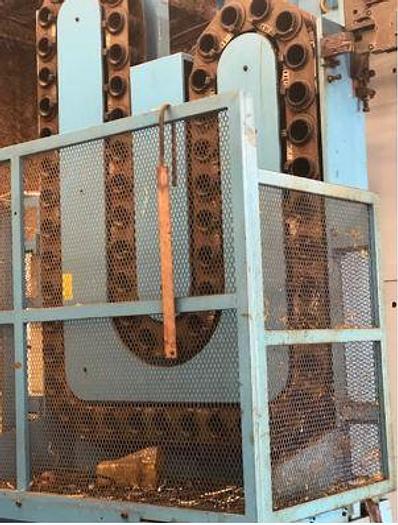

| Tool Magazine Capacity | 60 ATC |
| Rapid Traverse Rates X,Y,Z/W | 394 IPM / 157 IPM |
| Machine Dimensions LxWxH | 25'x20'x12' |
| Machine Weight | 41,887 lbs |
