1997 Hitachi Seiki HiTec-Turn 40G
No longer available
1997 Hitachi Seiki HiTec-Turn 40G
$26,500 (USD)
Location:Massachusetts
Description

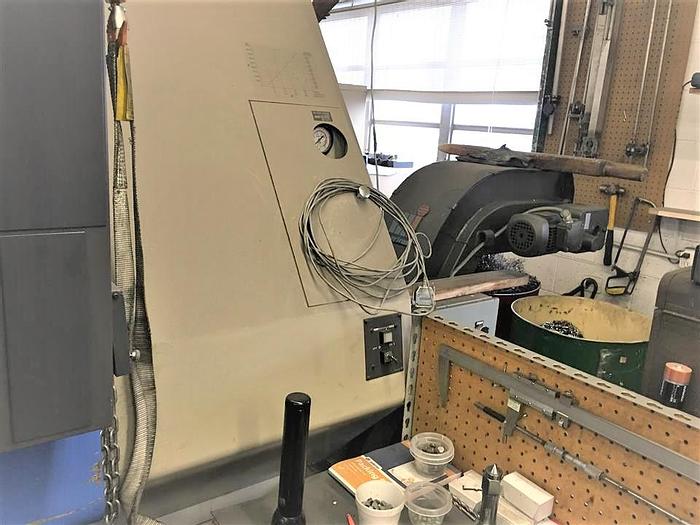

Chip Conveyor

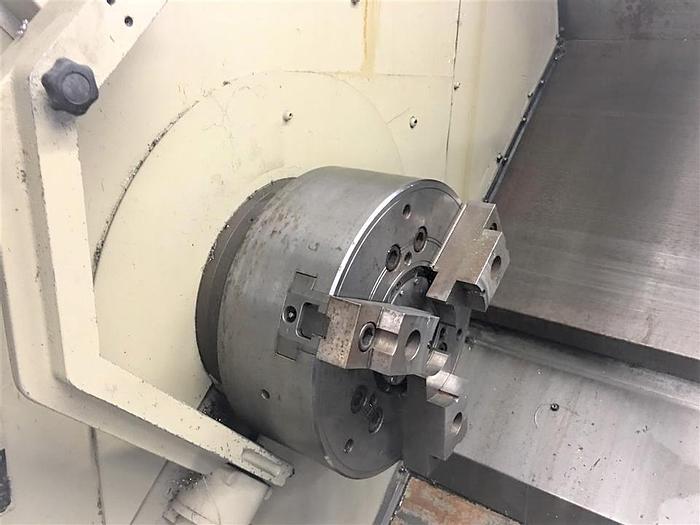

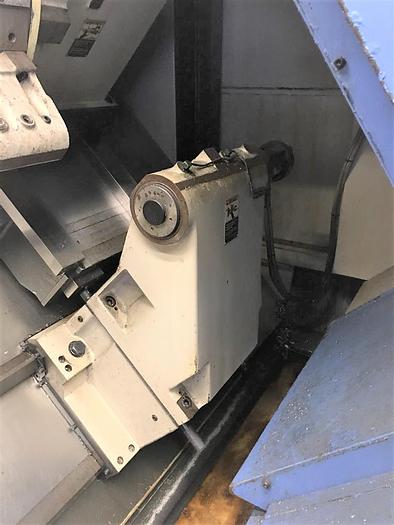

Tailstock 15" 3-Jaw Hydraulic Chuck
Tool Presetter
Heavy Duty Geared Headstock and Boxed Ways RS-232 Port for DNC Interface Complete Coolant System with Tank and Pump
Seico Multi CNC Control (Fanuc type platform) All Available Manuals
Specifications
| Manufacturer | Hitachi Seiki |
| Model | HiTec-Turn 40G |
| Year | 1997 |
| Condition | Used |
| Stock Number | 118043 |
| Control | Seicos Multi CNC Control |
| Chuck Size | 15" Hydraulic Chuck |
| Maximum Swing over Bed | 39.4" |
| Maximum Swing Over Cross Slide | 24.4" |
| Maximum Turning Length | 43.3" |
| Maximum Bar Capacity | 4.0" |
| X-Axis Travel | 13.5" |
| Z-Axis Travel | 44" |
| Spindle Bore | 4.7" |
| Spindle Speeds | 20 - 2,000 RPM |
| Spindle Motor | 30 HP |
| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates X/Z | 590 IPM / 708 IPM |
| Tailstock Body Stroke / Quill Stroke | 35.4" / 4.7" |
| Tailstock Quill Diameter / Center | 4.3" / MT #5 |
| Machine Dimensions | 178" x 103" x 92" |
| Machine Weight | 21,340 lbs. |
