1997 Mazak HTC400
No longer available
1997 Mazak HTC400
$13,950 (USD)
Location:Oklahoma
Description
2 Pallet Changer System
Rotary Table with 15 Degree Indexing

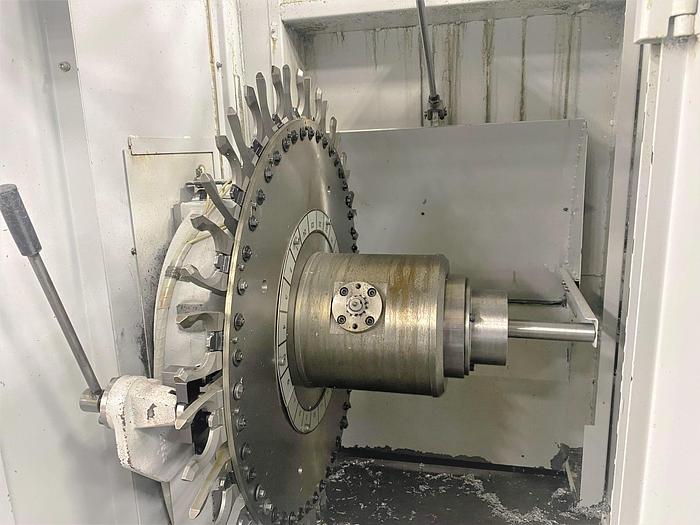

24 Position Tool Changer

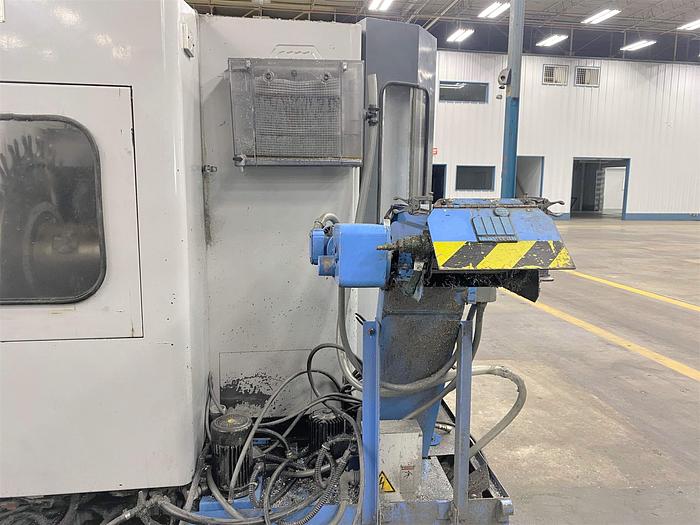

Chip Conveyor
Automatic Tool Length Measurement
Coolant System with Tank & Pump
RS-232C Interface
Background Tool Path Check
Wired 230V Electrics
Manufactured new in 1/1997
Includes (24) CAT 40 Tool Holders
Specifications
| Manufacturer | Mazak |
| Model | HTC400 |
| Year | 1997 |
| Condition | Used |
| Stock Number | 118041 |
| Machine Control | Mazatrol Mplus |
| Pallet Size / Number of Pallets | 15.7"x15.7" / 2 pallet changer |
| Maximum Table Load | 660 LBS |
| Table Indexing | 15 Degrees |
| X-axis travel | 22.05" |
| Y-Axis Travel | 20.08" |
| Z-Axis Travel | 20.08" |
| Distance Spindle Nose to Table Top | 5.9"-25.98" |
| Maximum Tool Diameter / Length / Weight | 4.52" / 14.96" / 17.6 lbs |
| Spindle Speed | 10,000 RPM |
| Spindle Taper | CAT 40 |
| Spindle Motor | 15 HP |
| Spindle Torque | 51.3 ft. lbs |
| Rapid traverse rates | 1181 IPM |
| Tool Magazine Capacity | 24 Station ATC |
| Machine Dimensions LxWxH | 140"x89"x90" |
| Machine Weight | 14,080 lbs. |
