2005 Mazak Nexus QTN 250
No longer available
2005 Mazak Nexus QTN 250
$39,500 (USD)
Wisconsin
Description

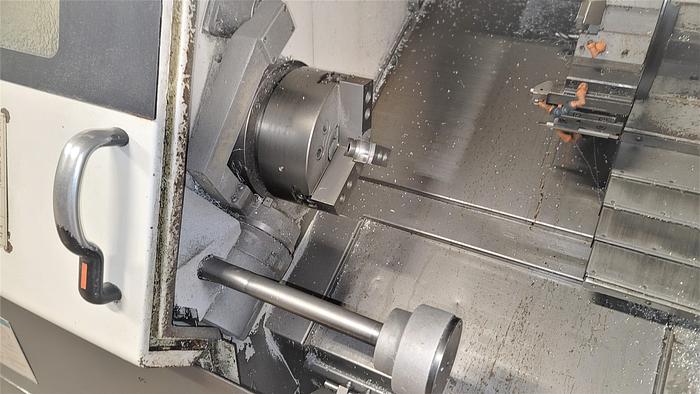

10" 3 Jaw Hydraulic Chuck

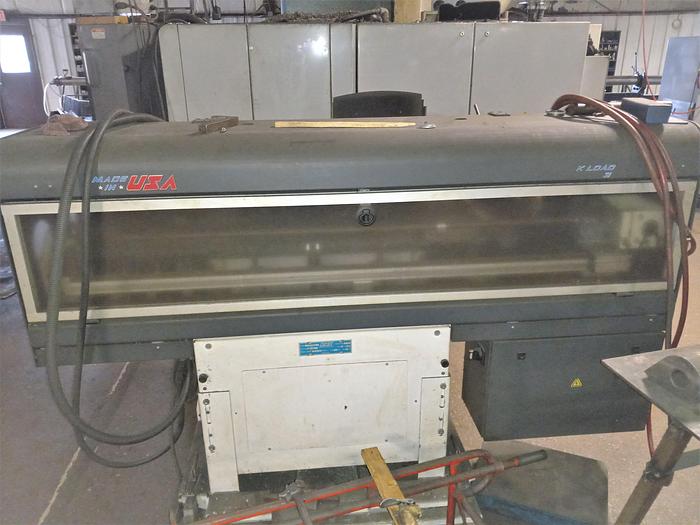

LNS Quick Load Magazine Type Barfeed
Chip Conveyor
Parts Catcher
Automatic Tool Eye

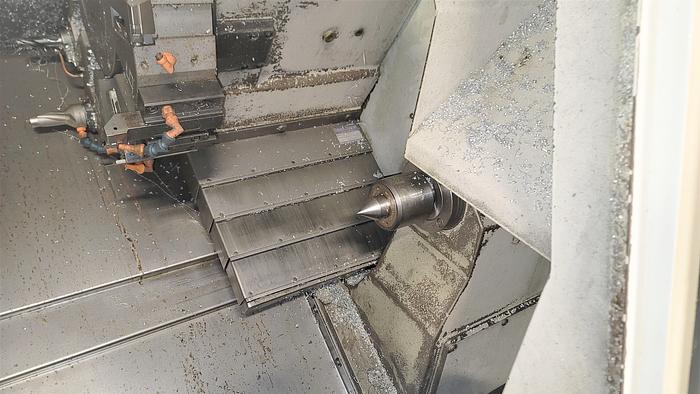

Programmable Tailstock
IC Memory Card Interface
PCM CIA Interface (2 slots)
3.5" Floppy Disk Interface
RS232 Port Interface
Hydraulic Pressure Interlock
Chuck Open/Close Confirmation
Door Interlock
Tool Path Solid Model Multi-Tap Transformer Coolant Tank with Pump All Available Manuals
All Available Tooling
Wired at 208V Electrics
*Currently has a software issue
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 250 |
| Year | 2005 |
| Condition | Used |
| Stock Number | 118040 |

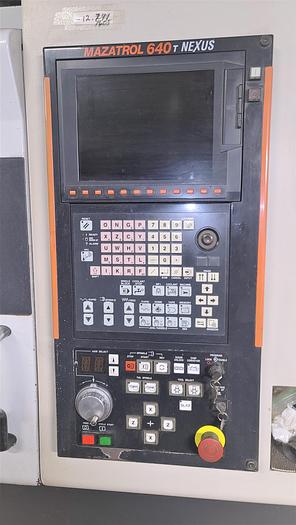

| Control | Mazatrol Fusion 640T Nexus |
| Chuck Size | 10" 3-Jaw Hydraulic |
| Maximum Swing | 24" |
| Maximum Cutting Diameter | 14" |
| Maximum Machining Length | 18.7" |
| X-Axis Travel | 7.5" |
| Z-Axis Travel | 20.25" |
| Spindle Nose / Bore / Bar Capacity | A2-8" / 3.46" / 3.0" |
| Spindle Speeds | 4,000 RPM |
| Spindle Motor | 35 HP |

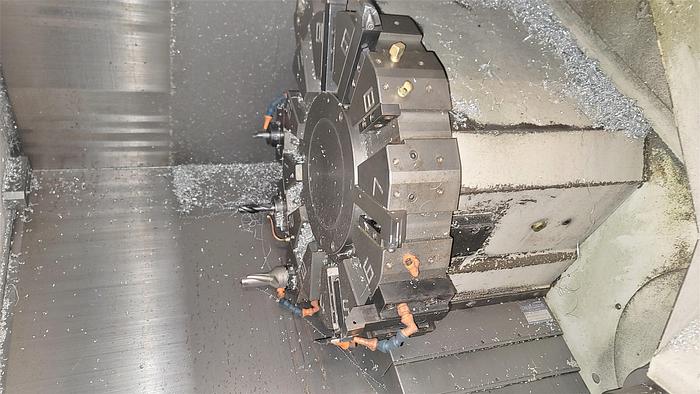

| Number of Turret Positions | 12 Position Drum |
| Rapid Traverse Rates X/Z | 1181 / 1299 IPM |
| Tailstock Body Travel / Center | 20.625" / MT#5 |
| Machine Dimensions LxWxH | 102" x 80" x 76" |
| Machine Weight | 10,400 lbs. |
