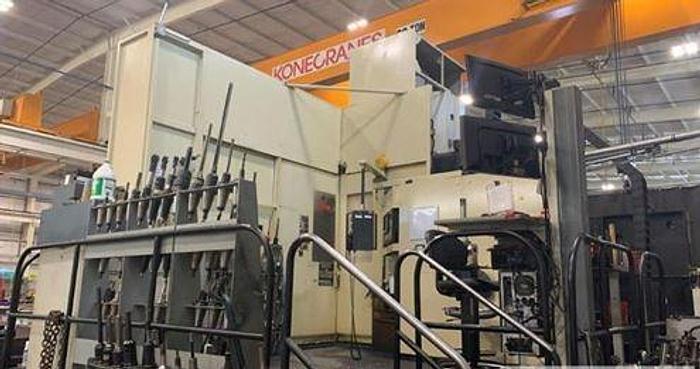

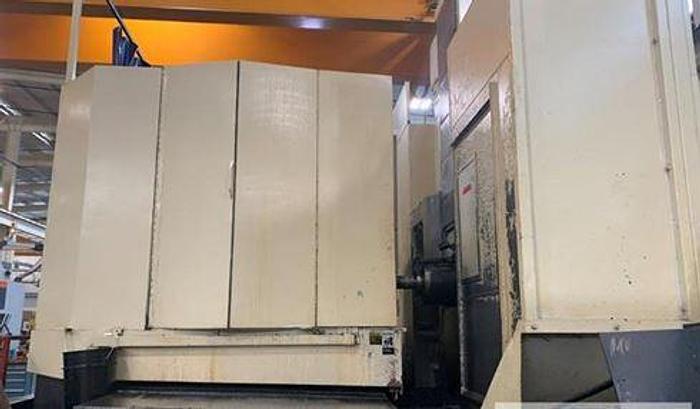

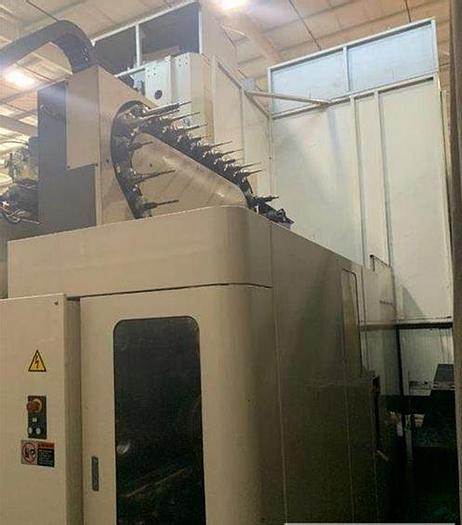

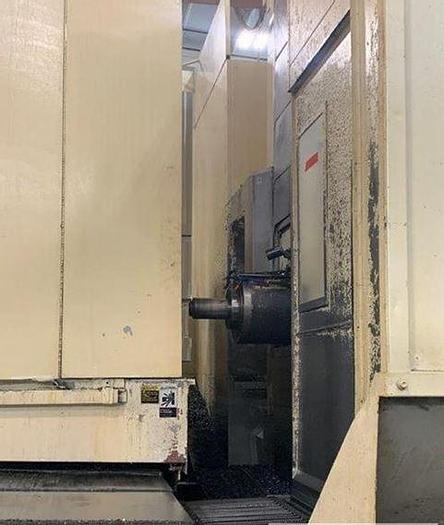

2009 Toshiba BTH-130.R24
No longer available
2009 Toshiba BTH-130.R24
Location:Tennessee
Description
78.74" x 94.48" Full B-Axis Rotary Table
Thru the Spindle coolant
Chip Conveyor
Specifications
| Manufacturer | Toshiba |
| Model | BTH-130.R24 |
| Year | 2009 |
| Condition | Used |
| Stock Number | 118039 |

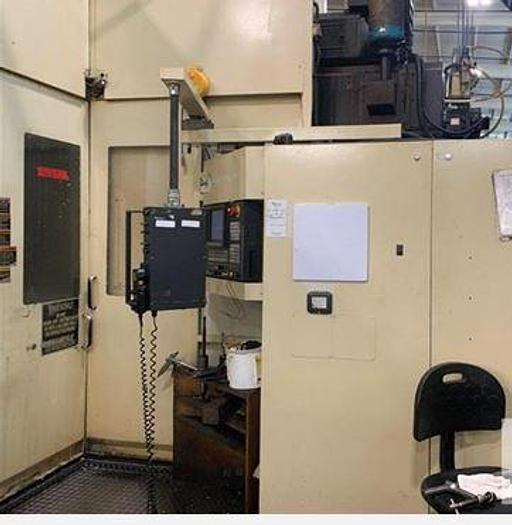

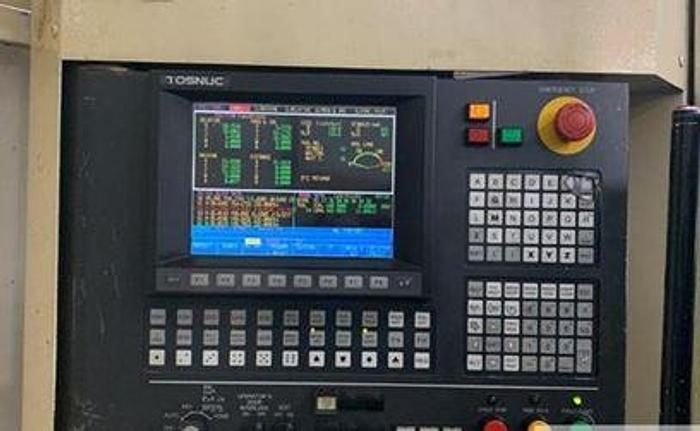

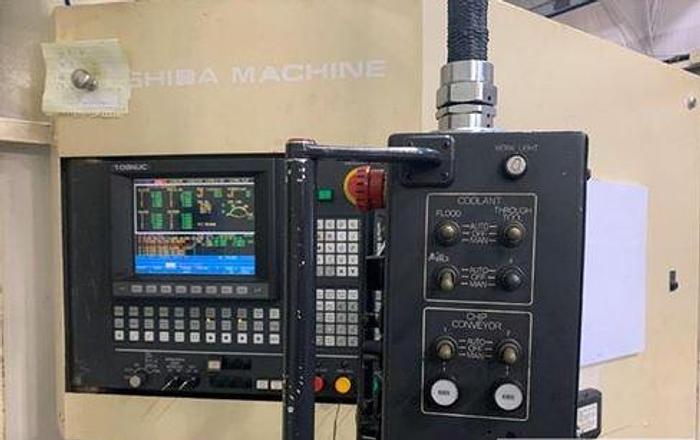

| Machine Control | Tosnuc 999 |
| Table size | 78.74"x94.48" |
| Maximum Table Load | 44,000 lbs |
| Table Indexing | .001 Degrees |
| X-Axis Travel | 118.11" |
| Y-Axis Travel | 90.55" |
| Z-Axis Travel | 27.55" (Spindle Travel) |
| W-Axis Travel | 59.05" (Saddle Travel) |

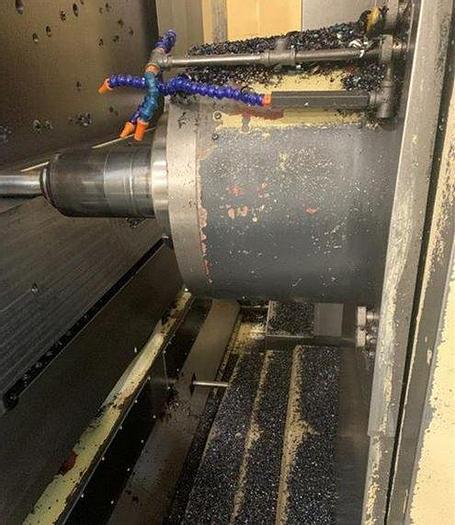

| Spindle Diameter | 5.12" |
| Spindle Taper | #50 |
| Spindle Speeds | 5-2,500 rpm |
| Spindle nose to table top | 35.4" to 95.4" |

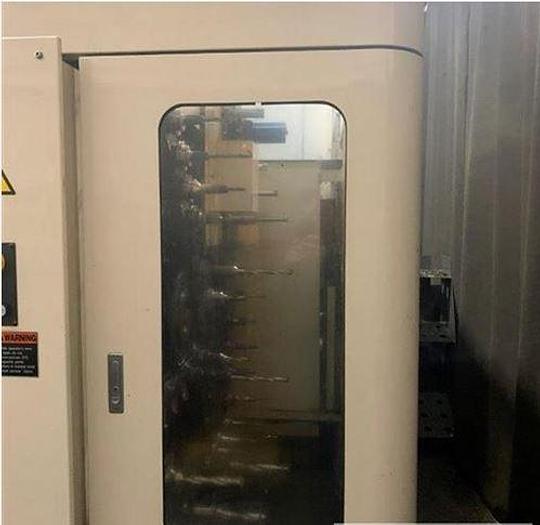

| Tool Magazine Capacity | 60 atc |
| Cutting Feedrates | .04 to 275.59 IPM |
| Rapid Traverse Rates | 551.18 IPM |
| Approximate Floor Space | 285"x273" |
| Approximate Height | 199" |
| Approximate Weight | 99,000 lbs |
