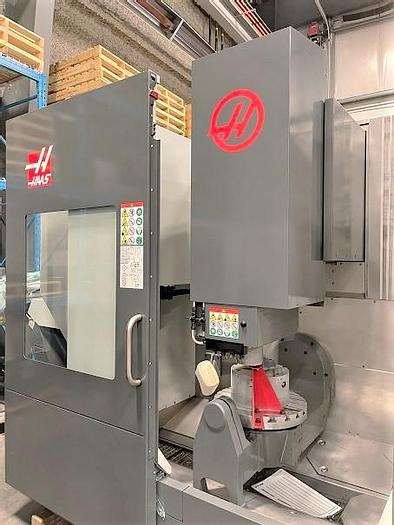

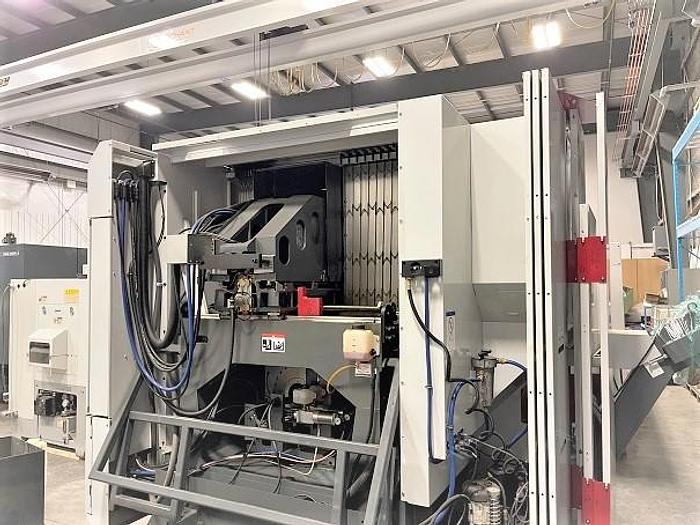

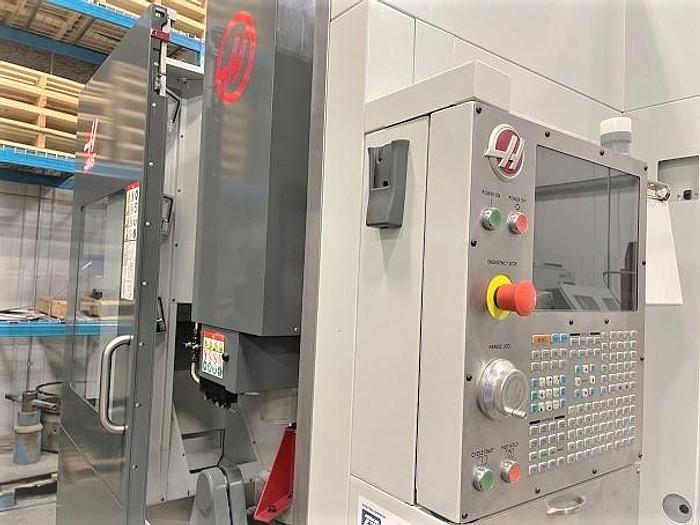

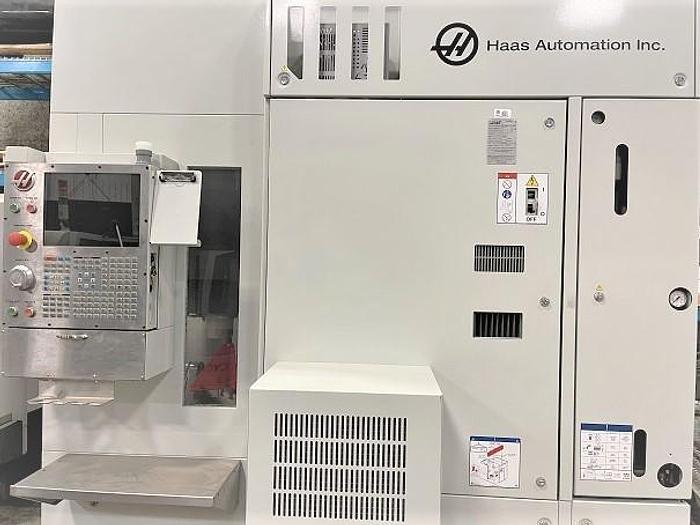

2017 Haas UMC-750SS
No longer available
2017 Haas UMC-750SS
$179,500 (USD)
Location:Alberta, Canada
Description

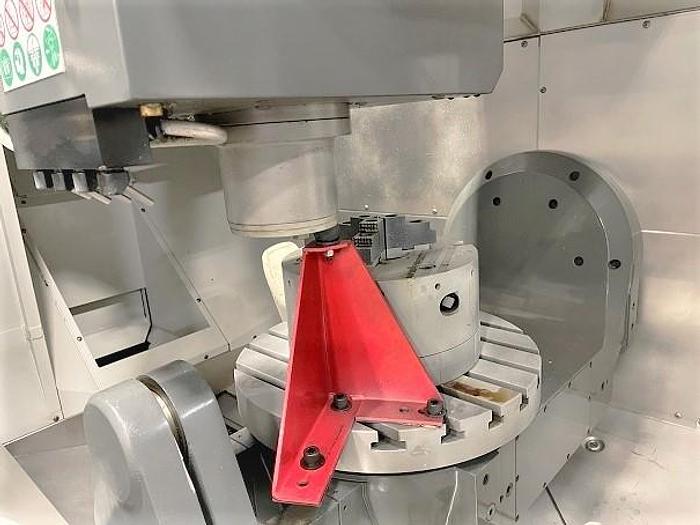

Trunnion Style 5th Axis Table
Coolant Through the Spindle - 300 PSI
WIPS Wireless Probing System

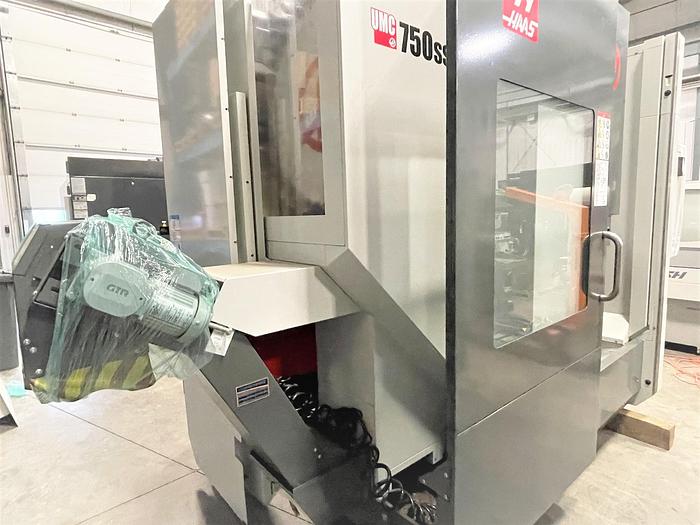

Chip Conveyor

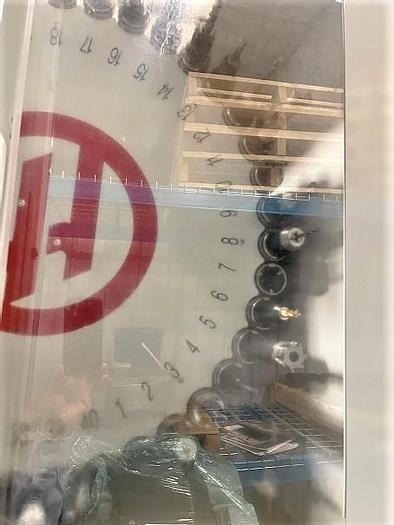

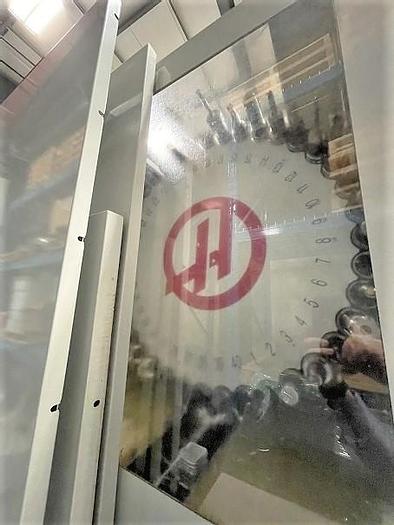

40 Station Tool Changer
High Speed Machining
Coordinate Rotation & Scaling
Spindle Orientation
User Definable Macros
Rigid Tapping
32 GB Programming Memory
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump
All Available Manuals
****Includes Rohm Quick Change Chuck
****Lots of Tooling goes with it as well
Specifications
| Manufacturer | Haas |
| Model | UMC-750SS |
| Year | 2017 |
| Condition | Used |
| Stock Number | 118035 |
| Table size | 19.7" Diameter |
| Table load capacity | 660 lbs |
| X axis travel | 30" |
| Y axis travel | 20" |
| Z axis travel | 20" |
| B axis rotate of trunnion | -35 Degrees to 110 Degrees |
| C axis table rotation | .001 Degree Positioning |
| Spindle taper | CAT #40 |
| Spindle speed | 15,000 RPM |
| Spindle motor | 30 HP |
| Distance Spindle Nose to Table Top | 4" - 24" |
| Tool magazine | 40 + 1 Position Toolchanger |
| Maximum Tool Diameter / Length / Weight | 5" / 12" / 12 lbs. |
| Rapid traverse rates | 1200 IPM |
| Maximum feed rates | 650 IPM |
| Machine dimensions | 157" x 94" x 101" |
| Machine weight | 19,100 lbs |
