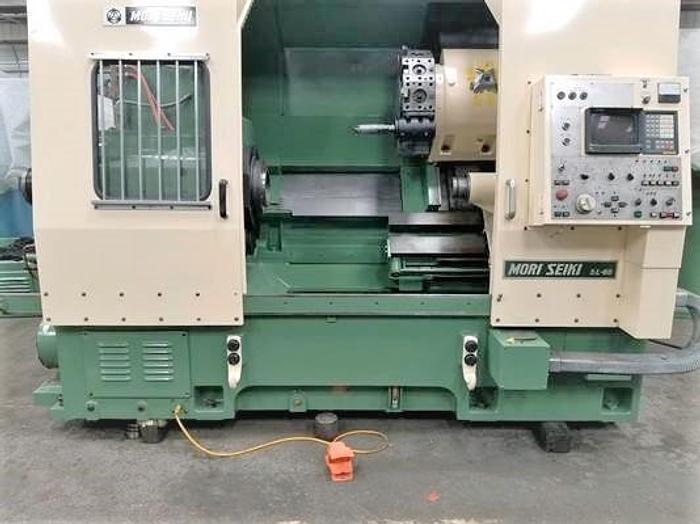

1989 Mori Seiki SL65B
No longer available
1989 Mori Seiki SL65B
$54,500 (USD)
Location:Texas
Description
Option of either a 15" or 18" 3 Jaw Hydraulic Chuck
Tailstock

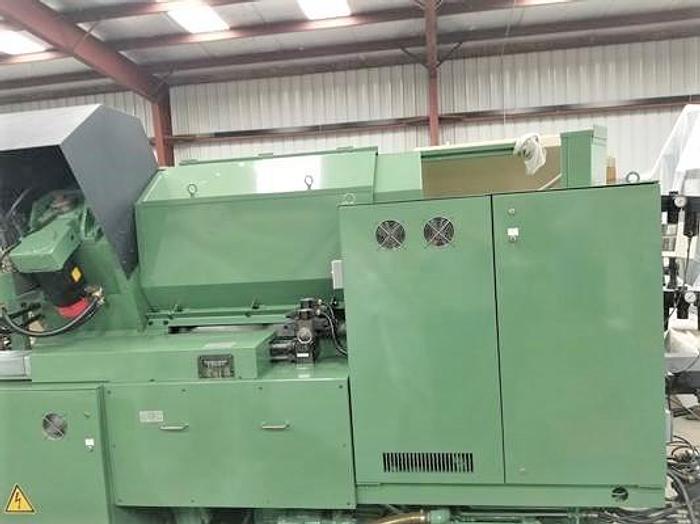

Chip Conveyor
6.3" Spindle Bore
Slant Bed Design with Boxed Ways
RS 232 Port Interface
Wired 220V Electrics
140 Amp Full Load / 62 KvA
All Available Manuals
All Available Tooling
Specifications
| Manufacturer | Mori Seiki |
| Model | SL65B |
| Year | 1989 |
| Condition | Used |
| Stock Number | 118033 |

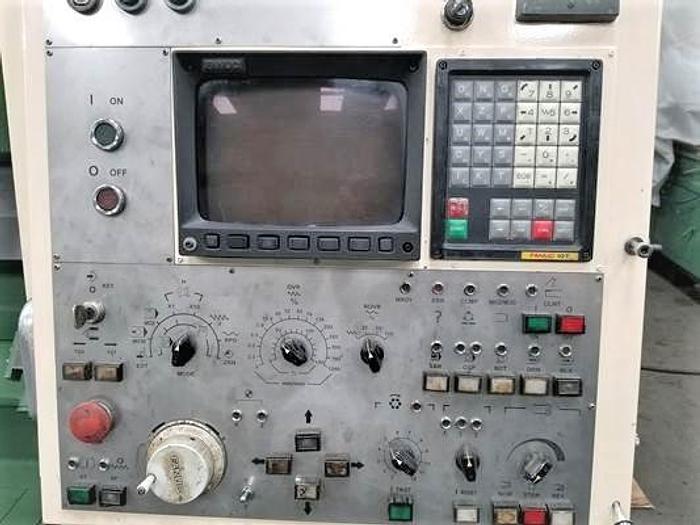

| Machine Control | Fanuc 10T Control |
| Chuck size | 15" or 18" Hydraulic Chukc |
| Swing over bed | 35" |
| Swing over cross slide | 22" |
| Maximum machining diameter | 32.3" |
| Center distance | 35.4" |
| X-axis travel | 17.1" |
| Z-axis travel | 33.9" |
| Spindle Nose / Spindle Bore | A2-15" / 6.3" |
| Spindle speed | 1,010 RPM |
| Spindle motor | 50 HP |
| Turret type - vdi type | 12 Station Turret |
| Tailstock travel | 26.8" |
| Tailstock quill diameter | 4.3" |
| Rapid Traverse Rates X/Z | 197 IPM / 315 IPM |
| Machine dimensions | 190" x 80" x 98" |
| Machine weight | 20,100 lbs. |
