2016 Mitsubishi MV2400R Advance Plus
No longer available
2016 Mitsubishi MV2400R Advance Plus
$99,500 (USD)
Location:Michigan
Description
5 Axis Capability
"R" Upgrades Include 4-Sided, 1 Piece Hardened Table
FM Fine Machining
Linear Motion on all Axis' X, Y, U & V (no ballscrews)
Linear Drives
Advance Plus 3
Auto Threading
10 Second Auto Threading
Submerged Cutting

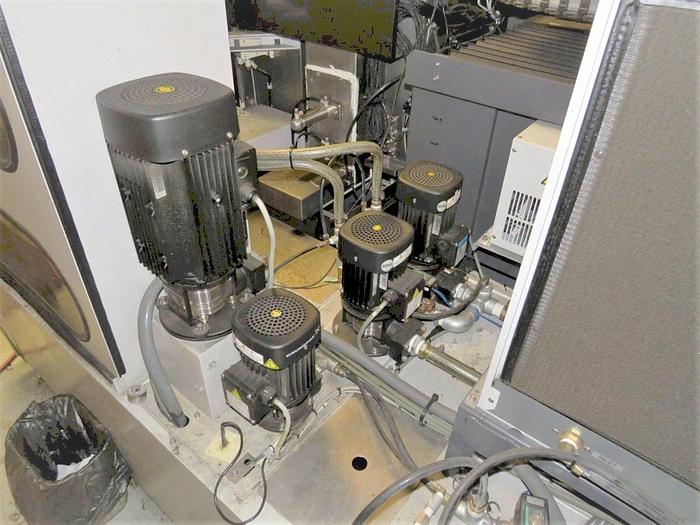

Dielectric Chiller Unit
Linear Glass Scales

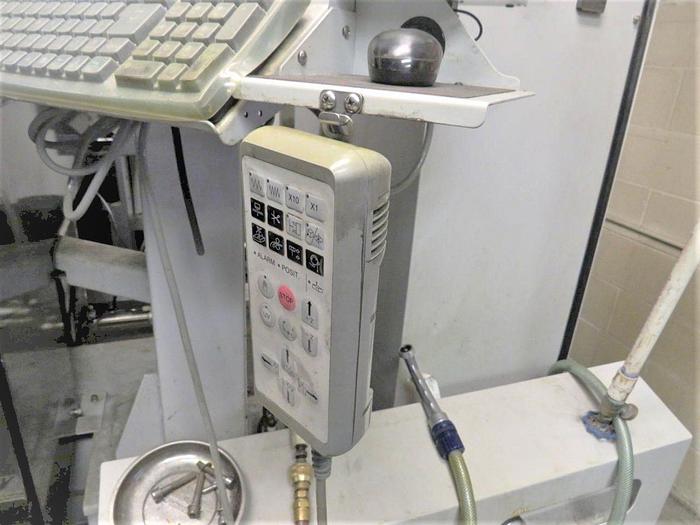

Remote Jog Handle

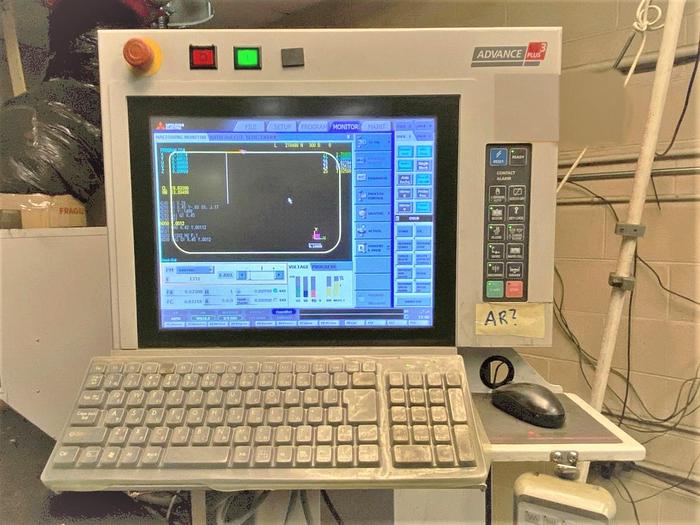

15" Touch Screen LCD Display
Mitsubishi V350-V Anti Electrolosis Power Supply
USB Port Interface
Ethernet Interface
RS 232 Port Interface
FTP Interface
All Available Manuals
Specifications
| Manufacturer | Mitsubishi |
| Model | MV2400R Advance Plus |
| Year | 2016 |
| Condition | Used |
| Stock Number | 118031 |
| Control | Mitsubishi M700 Control |
| Maximum Weight on Table | 3,307 lbs. |
| Maximum Workpiece Dimensions | 41" x 32" x 12" |
| Table Size | 33" x 22" |
| X-Axis Travel | 23.6" |
| Y-Axis Travel | 15.7" |
| Z-Axis Travel | 12.2" |
| U / V Axis Travel | +/- 2.9" |
| Wire Diameter | .004" - .012" (.010" Guides) |
| Machine Dimensions | 106" x 120" x 85" |
| Machine Weight | 7,800 lbs. |
