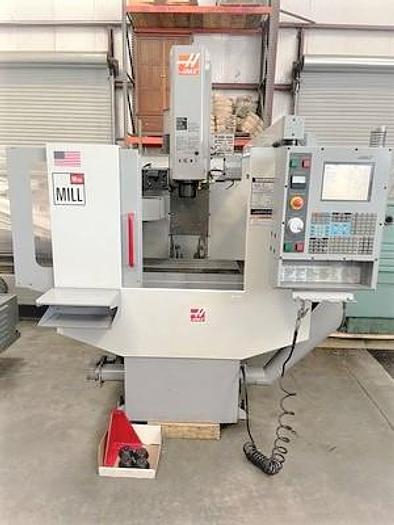

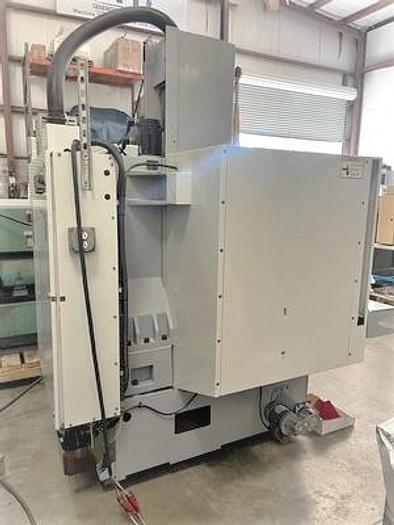

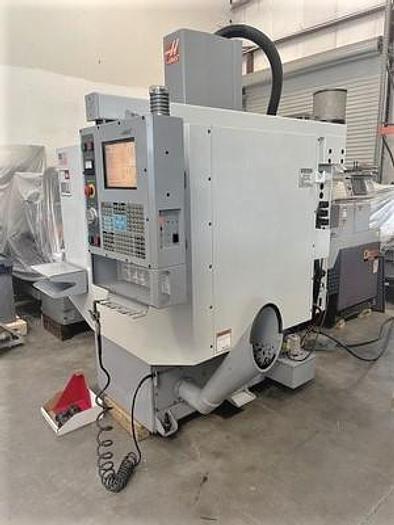

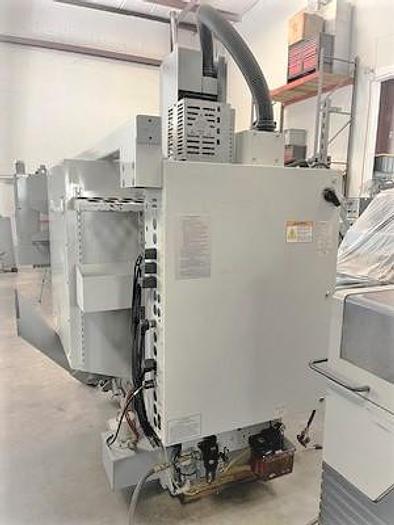

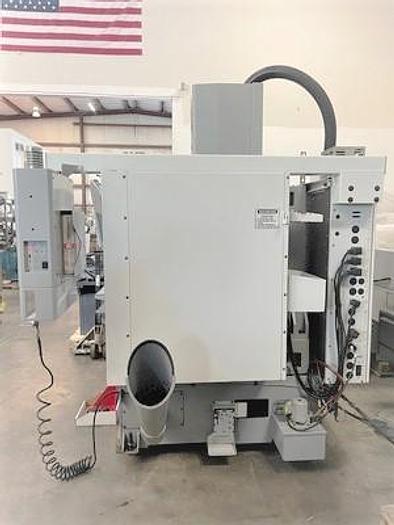

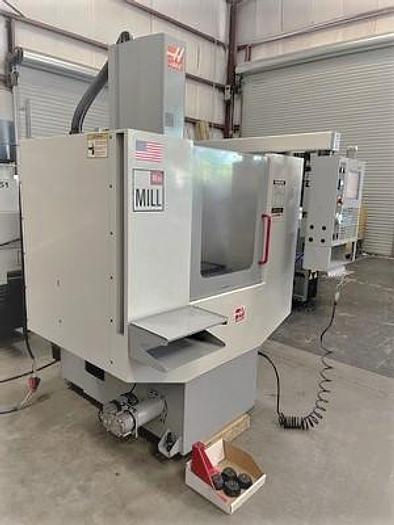

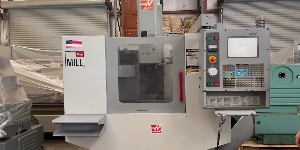

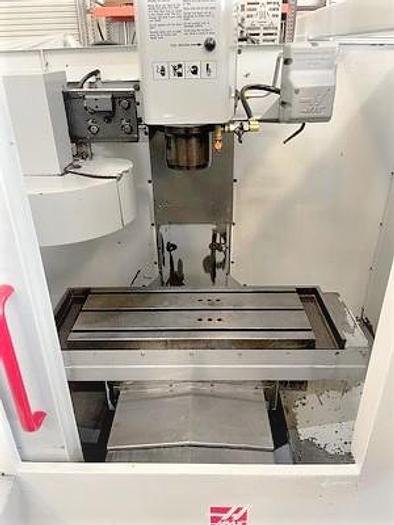

2005 Haas Mini Mill

No longer available

2005 Haas Mini Mill

$27,500 (USD)



Auger Style Chip Conveyor

Programmable Coolant Nozzle

Rigid Tapping

Coordinate Rotation & Scaling

User Definable Macros

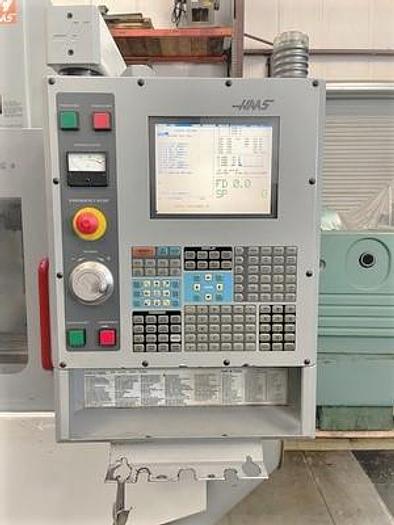

Visual Quick Code Programming

Air Blow Gun

Coolant Tank w/Pump

Direct Belt Drive

USB Port Interface

RS 232 Port Interface

Leveling Pads

Machine Manual

Wired 230V / 3 Phase Power

Motion Hours 10,243

Spindle Run Hours 10,683


ModelMini Mill
Stock Number118025

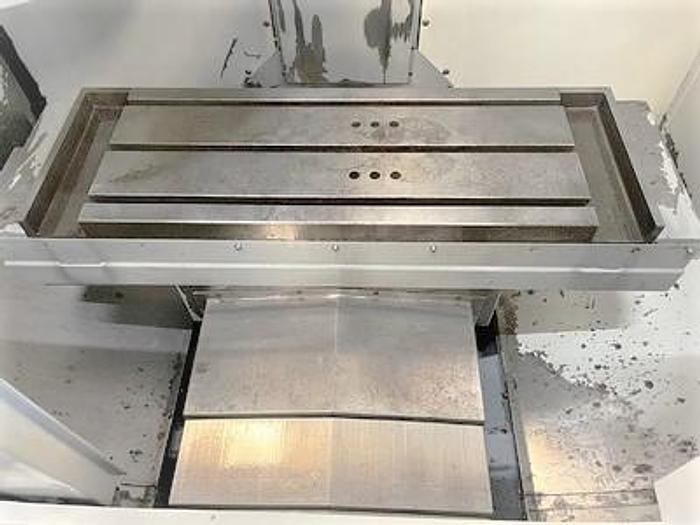

Table Size36" x 12"
Maximum Table Load500 lbs
X-axis travel16"
Y-Axis Travel12"
Z-Axis Travel10"

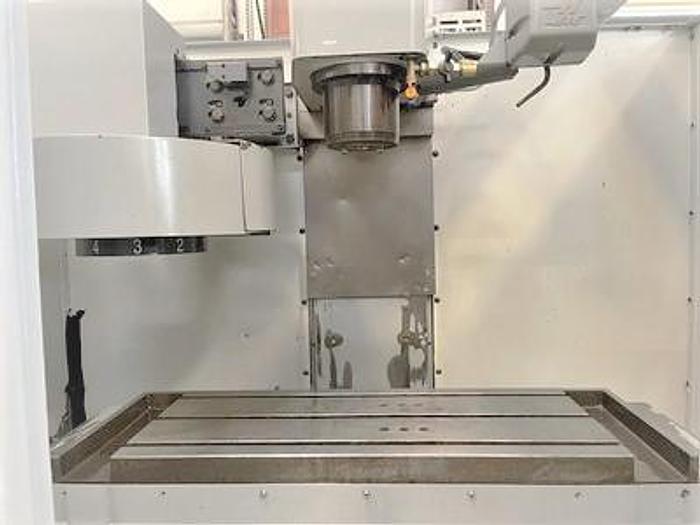

Spindle TaperCAT #40
Spindle Speed6,000 RPM
Spindle Motor7.5 HP
Distance Spindle Nose to Table Top4" - 14"
Tool Magazine Capacity10 Position ATC
Tool Change Time Tool to Tool2.5 Seconds
Maximum Tool Diameter / Length / Weight3.5" / Na / Na
Rapid Traverse Rates600 IPM
Electrical Requirements230V 3 Phase
Machine Dimensions LxWxH90" x 64" x 100"
Machine Weight4,200 lbs
