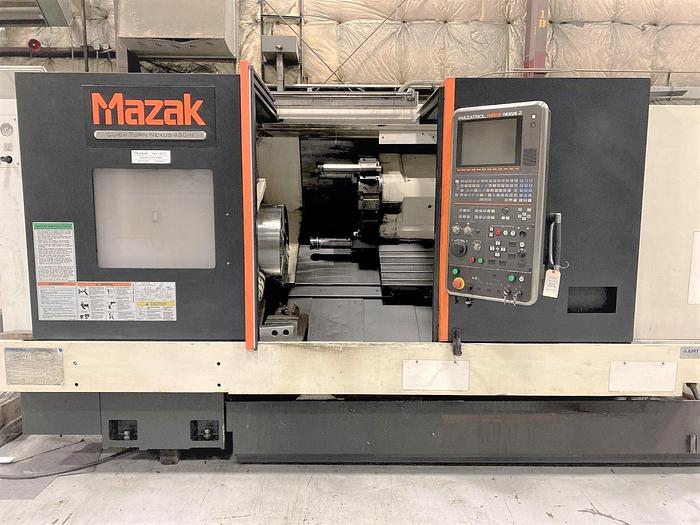

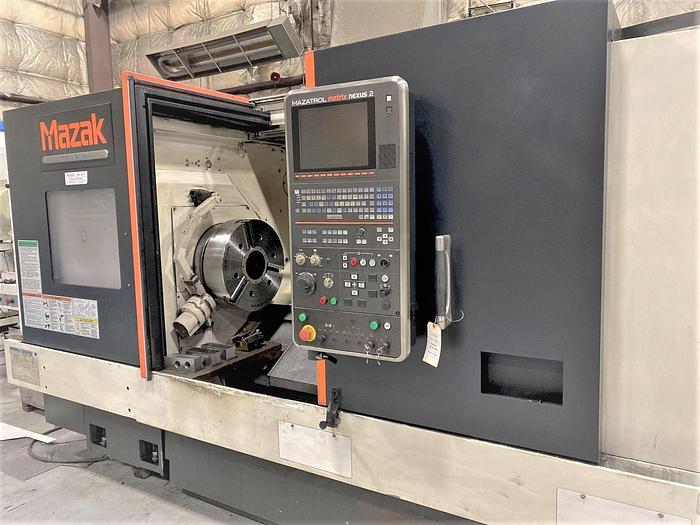

2014 Mazak Nexus QTN 450-II/1000
No longer available
2014 Mazak Nexus QTN 450-II/1000
$136,000 (USD)
Location:Michigan
Description

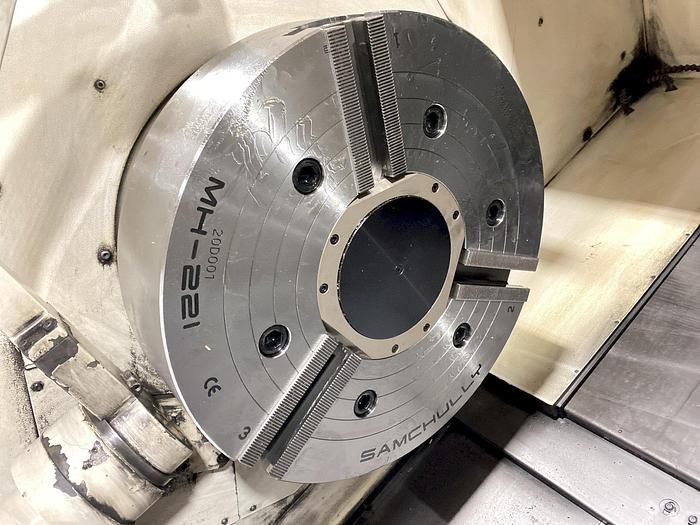

21" 3 Jaw Samchully MH-221 Hydraulic Chuck
Side Exit Chip Conveyor Automatic Tool Eye Programmable Tailstock

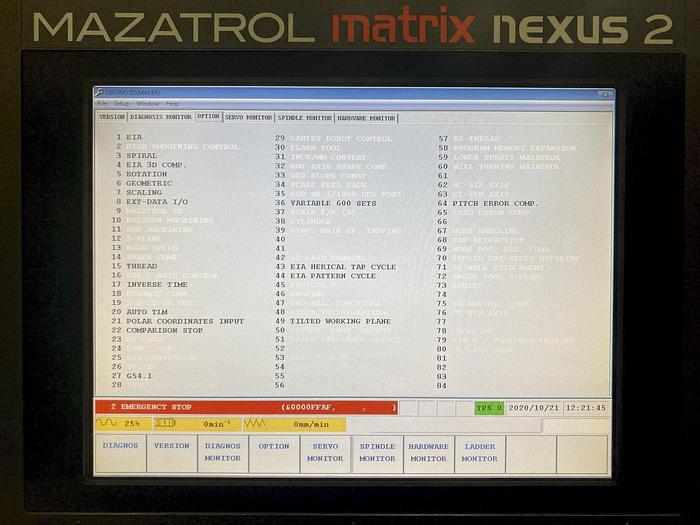

EIA/ISO Input Function
EIA 3D Compensation
EIA Helical Tap Cycle
EIA Pattern Cycle
Pitch Error Compensation
Coordinate Rotation & Scaling
Tilted Work Plane 12.1" Color LCD USB Interface (2 Ports) LAN Port Interface
RS 232 Port Interface User Macro Multi-Tap Transformer Tool Path Storage
Threading Windows XP Operation System All Available Manuals All Available Tooling

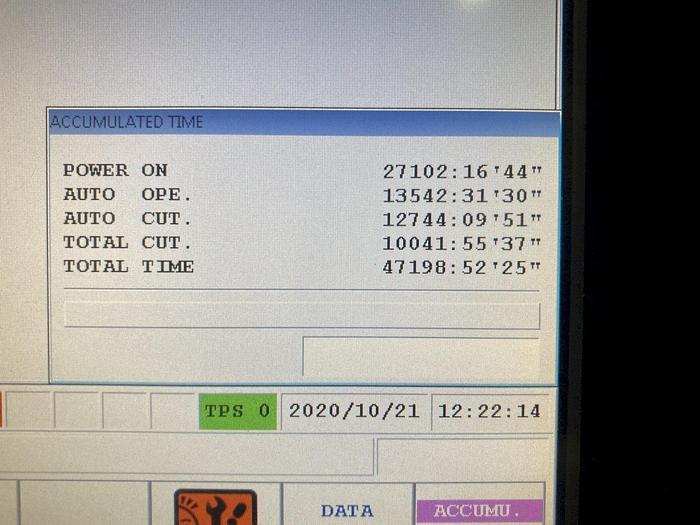

10,041 Total Cutting Hours
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 450-II/1000 |
| Year | 2014 |
| Condition | Used |
| Stock Number | 118024 |

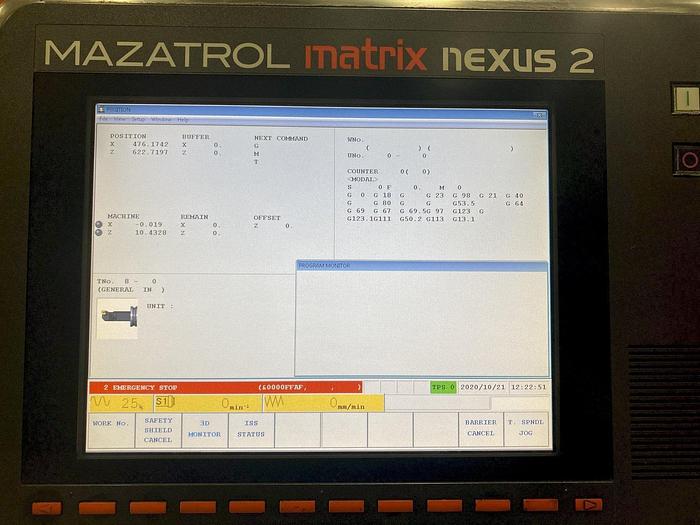

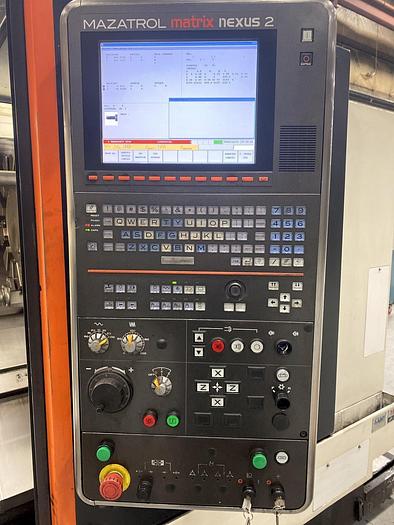

| Control | Mazatrol Matrix Nexus 2 |
| Chuck Size | 21" 3 Jaw Hydraulic Chuck |
| Maximum Swing | 33.268" |
| Maximum Turning Diameter | 22.835" |
| Maximum Turning Length | 40.3" |
| Maximum Bar Capacity | 6.5" |
| X-Axis Travel | 12.13" |
| Z-Axis Travel | 42.13" |
| Spindle Nose / Spindle Bore | A2-15" / 7.1" |
| Spindle Speeds | 2,000 RPM - Geared |
| Spindle Motor | 50 HP |

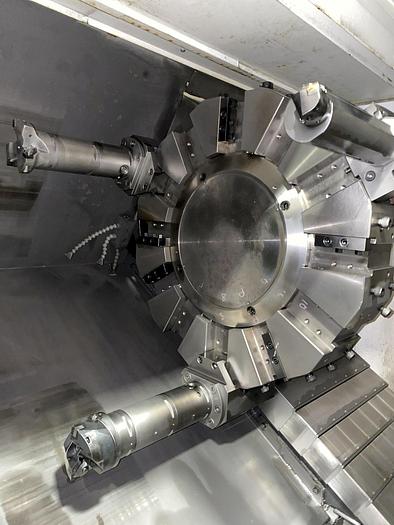

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates | 1181 IPM |
| Tailstock Body Travel / Center | 40.375" / MT #5 |
| Machine Dimensions | 126"x90"x80" |
| Machine Weight | 21,283 lbs. |
