1999 Okuma Crown 762S BB
No longer available

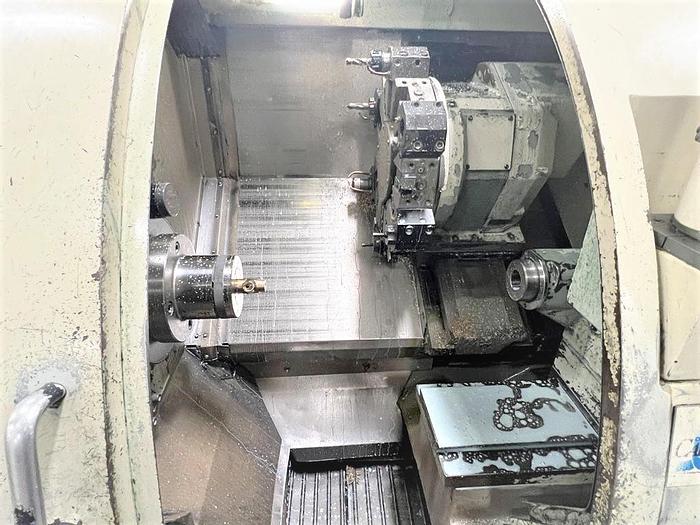

1999 Okuma Crown 762S BB
$17,950 (USD)
Location:Illinois
Description

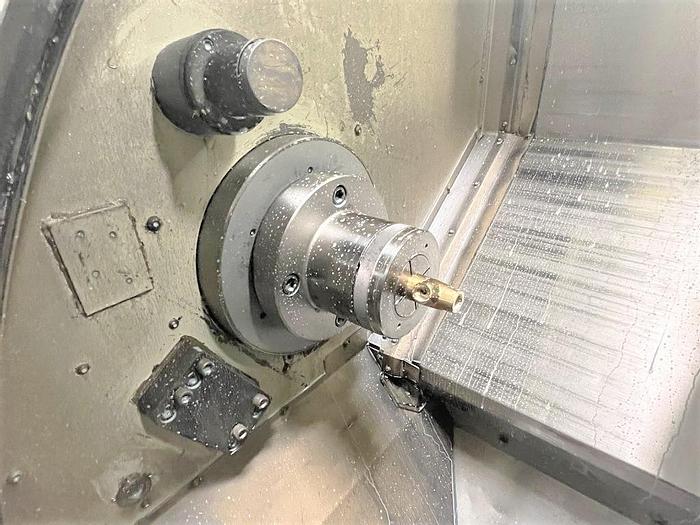

Collet Chuck

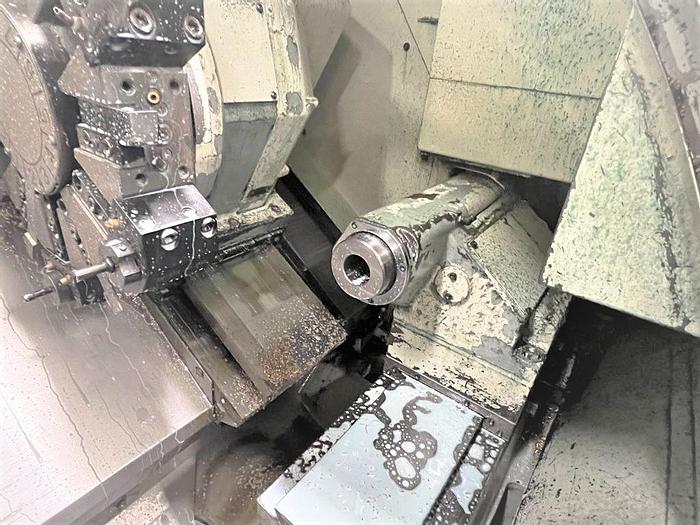

Tailstock

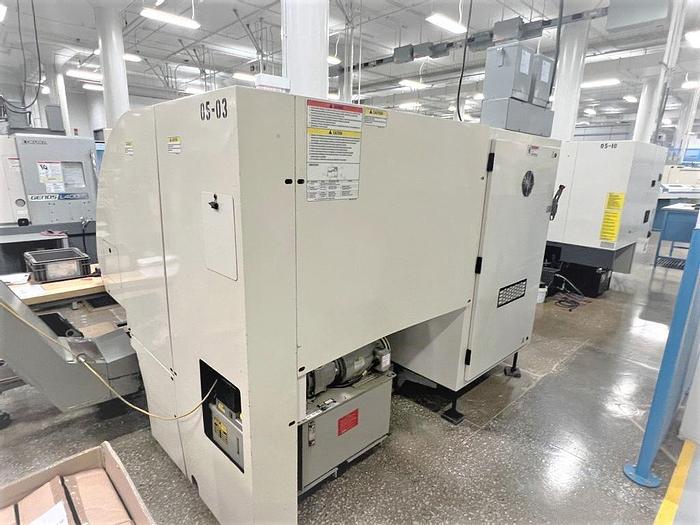

Chip Conveyor
Inch/Metric Switchable
Heavy Duty Slant Bed Construction
All Available Manuals
All Available Tool Holders
Wired 220V Electrics
Specifications
| Manufacturer | Okuma |
| Model | Crown 762S BB |
| Year | 1999 |
| Condition | Used |
| Stock Number | 118018 |
| Machine Control | Okuma OSP-700L |
| Chuck Size | Collet Chuck |
| Maximum Swing over Bed | 21.65" |
| Maximum Swing Over Cross Slide | 15.75" |
| Maximum Turning Diameter | 10.63" |
| Distance Between Centers | 22.29" |
| Maximum Turning Length | 19.68" |
| X-Axis Travel | 7.28" |
| Z-Axis Travel | 20.47" |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-8" / 3.15" / 2.7" |
| Spindle Speed | 65 - 3,500 RPM |
| Spindle Motor | 20 HP |

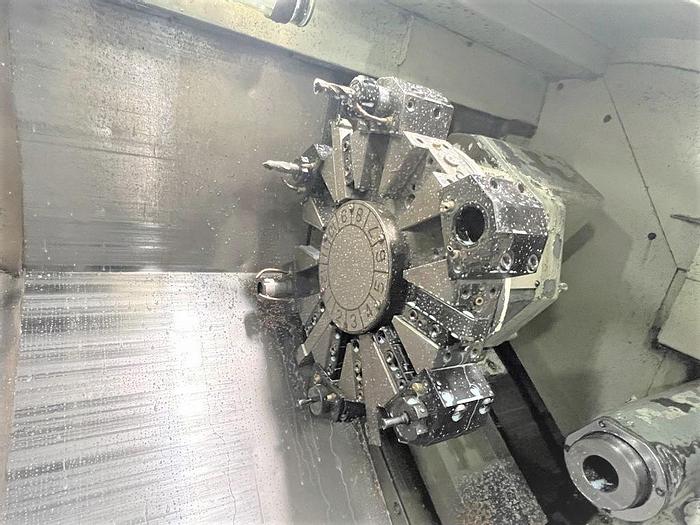

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X/Z | 590 IPM / 787 IPM |
| Machine Dimensions LxWxH | 104"x74"x72" |
| Machine Weight | 10,000 lbs |
