2012 Mazak Nexus QTN 400-II/2000

No longer available
2012 Mazak Nexus QTN 400-II/2000
$129,500 (USD)
Illinois
Description

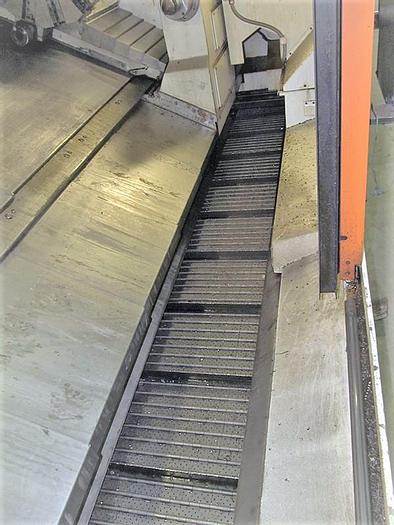

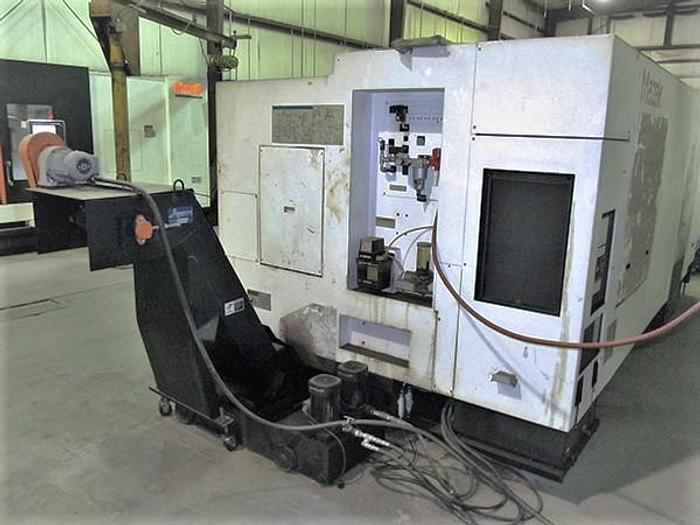

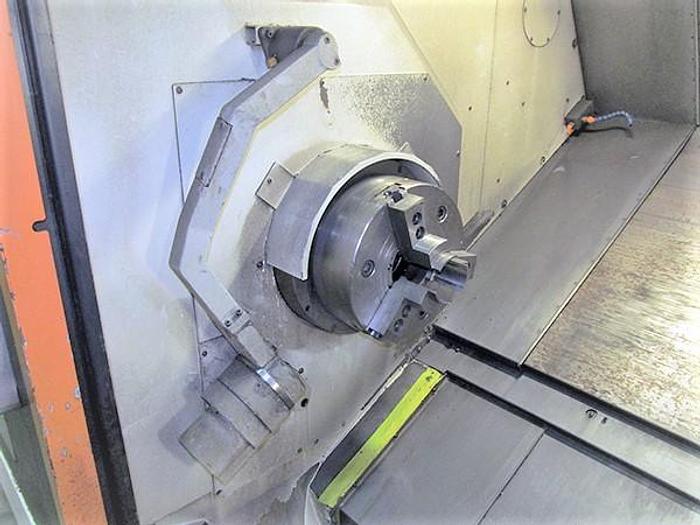

12" Kitagawa BB212 3 Jaw Hydraulic Chuck Side Exit Chip Conveyor Automatic Tool Eye Programmable Tailstock 12.1" Color LCD USB Interface (2 Port)
LAN Port Interface
RS 232 Port Interface User Macro Coolant System with Tank & Pump Multitap Transformer Tool Path Storage Windows XP Operation System All Available Manuals All Available Tooling

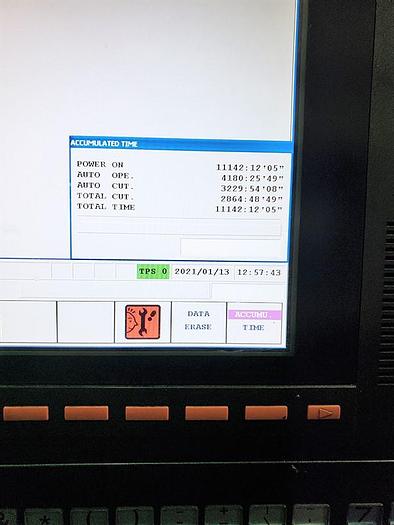

Total Cut Hours 2,864
Specifications
Manufacturer | Mazak |
Model | Nexus QTN 400-II/2000 |
Year | 2012 |
Condition | Used |
Stock Number | 118008 |

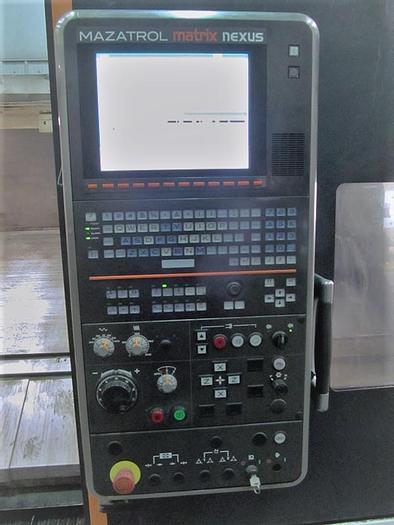

Control | Mazatrol Matrix Nexus |
Chuck Size | 12" Hydraulic Chuck |
Maximum Swing | 33.268" |
Maximum Turning Diameter | 22.835" |
Maximum Turning Length | 79.09" |
Maximum Bar Capacity | 4.5" |
X-Axis Travel | 13.3" |
Z-Axis Travel | 83.46" |
Spindle Nose / Spindle Bore | A2-11" / 5.2" |
Spindle Speeds | 2,500 RPM |
Spindle Motor | 50 HP |

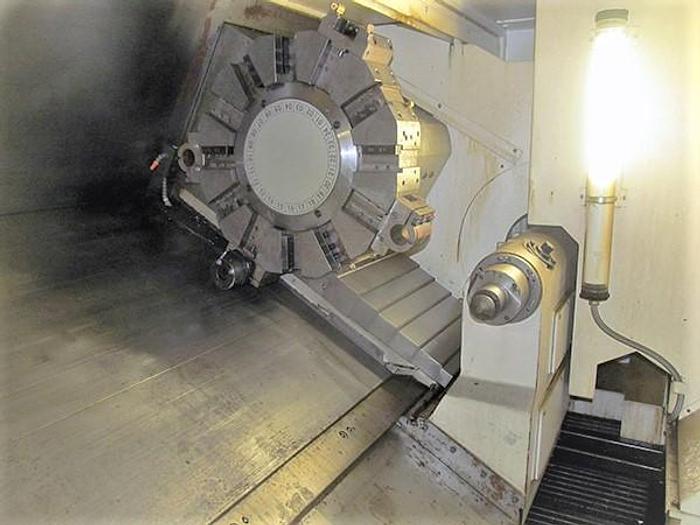

Number of Turret Positions | 12 Position Turret |
Rapid Traverse Rates | 1181 IPM |
Tailstock Body Travel / Center | 80.375" / MT #5 |
Machine Dimensions | 198"x90"x80" |
Machine Weight | 24,283 lbs. |
