2007 Mazak Quick Turn 450-II/1100
No longer available
2007 Mazak Quick Turn 450-II/1100
$139,000 (USD)
Location:Illinois
Description
18" 3 Jaw Air Chuck
High Pressure Coolant
Automatic Tool Eye
Programmable Tailstock
Chip Conveyor

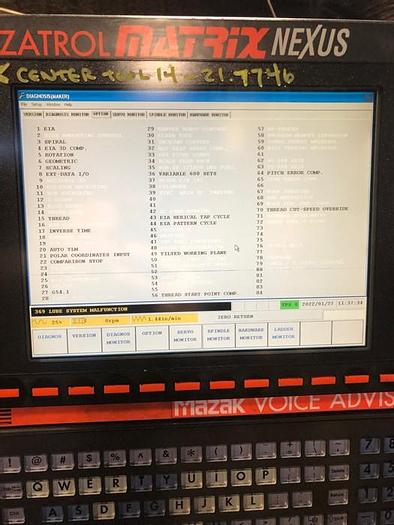

EIA/ISO Input Function
EIA Helical Tapping
EIA 3D Compensation
EIA Pattern Cycle
Pitch Error Compensation
Thread Cut-Speed Override
Thread Point Compensation
Threading
Coordinate Rotation & Scaling
Spiral Interpolation
Geometric Function
Polar Coordinates Input
Hydraulic Pressure Interlock
External Data Input/Output
Comparison Stop
Variable 600 Sets
Inverse Time Function
Tilted Work Plane
USB Port Interface (2 slots)
RS 232 Port Interface
LAN Card Interface
All Available Manuals
All Available Tooling
Specifications
| Manufacturer | Mazak |
| Model | Quick Turn 450-II/1100 |
| Year | 2007 |
| Condition | Used |
| Stock Number | 118002 |

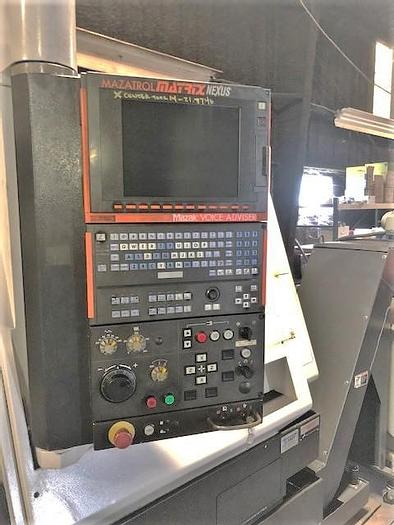

| Machine Control | Mazatrol Matrix Nexus |

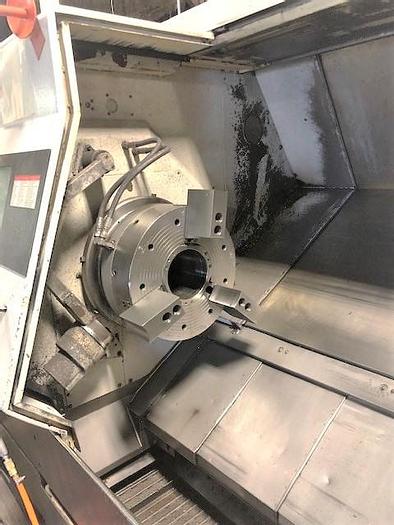

| Chuck Size | 18" 3-Jaw Air Chuck |
| Maximum Swing | 33.26" |
| Maximum Cutting Diameter | 22.83" |
| Maximum Turning Length | 43.2" |
| Distance Between Centers | 43.55" |
| X-Axis Travel | 13.38" |
| Z-Axis Travel | 43.2" |
| C Axis Spindle Rotation | .001 Degree |
| Spindle Nose / Bore / Bar Capacity | A2-15 / 7.23" / 6.5" |
| Spindle Motor | 50 HP |
| Spindle Torque | 1217 ft/lbs. |
| Spindle Speeds | 2,000 rpm |
| Rotary Tool Speed / Rotary Motor | 6,000 rpm / 10 HP |
| Rapid Traverse Rates | 1181 IPM |
| Tailstock Quill Diameter / Center | 3.94" / #5 MT |

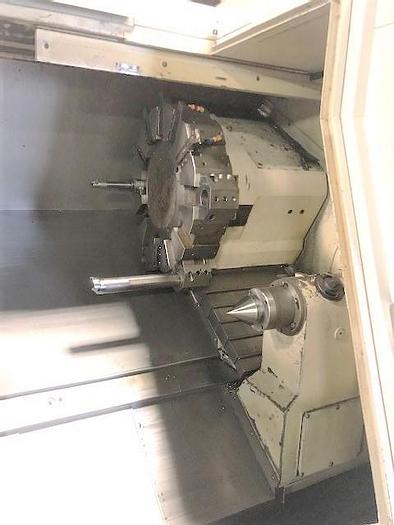

| Number of Turret Positions | 12 Sided / 24 Positions |
| Machine Dimensions LxWxH | 144"x90"x80" |
| Machine Weight | 22,266 lbs |
