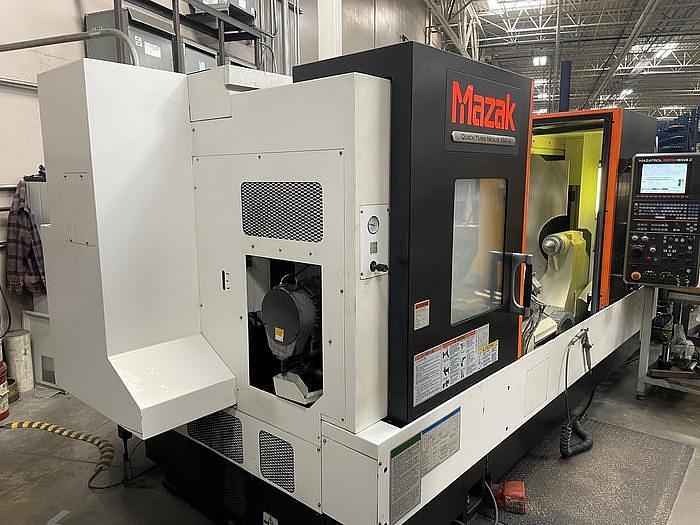

2016 Mazak Nexus QTN 350-II/1500
No longer available
2016 Mazak Nexus QTN 350-II/1500
$149,500 (USD)
Wisconsin
Description
12" Diameter 3-Jaw Hydraulic Chuck
Automatic Tool Eye
Chip Conveyor
60" Centers
SMW SLU-X-3.1 Drag and Drop Auto Base Steady Rest
213 PSI High Power Coolant
Programmable Tailstock
12.1" Color LCD Monitor
USB Port Interface (2 Ports)
LAN Port Interface
User Macros
Windows Based Operating System
MultiTap Transformer
Coolant Tank with Pump
All Available Manuals

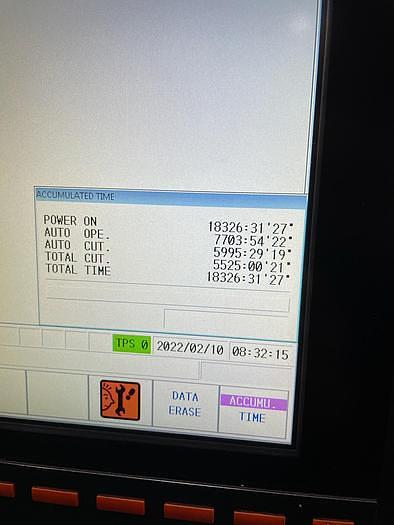

7,703 Auto Operation Hours
5,525 Total Cutting Hours
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 350-II/1500 |
| Year | 2016 |
| Condition | Used |
| Stock Number | 118001 |
| Machine Control | Mazatrol Matrix Nexus II |
| Chuck Size | 15" 3-Jaw Hydraulic |
| Maximum Swing | 26.77" |
| Maximum machining diameter | 16.54" |
| Maximum Cutting Length | 60" |
| X-Axis Travel | 8.85" |
| Z-Axis Travel | 63.38" |
| Spindle Nose / Bore / Bar Capacity | A2-11" / 4.4" / 4" |
| Spindle Speed | 3,300 RPM |
| Spindle Motor | 40 HP / 30 HP |

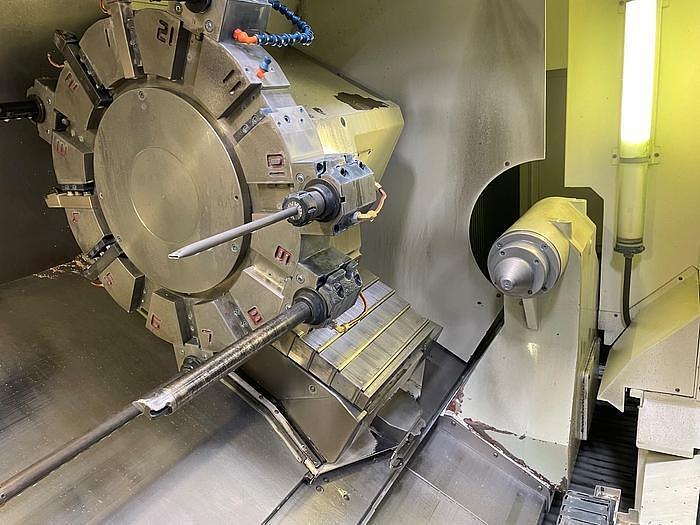

| Number of Turret Positions | 12 Posistion Turret |
| Rapid Traverse Rates X/Z | 1,181 IPM / 984 IPM |
| Tailstock Center | #5 MT |
| Machine Dimensions LxWxH | 160"x80"x79" |
| Machine Weight | 17,600 lbs |
