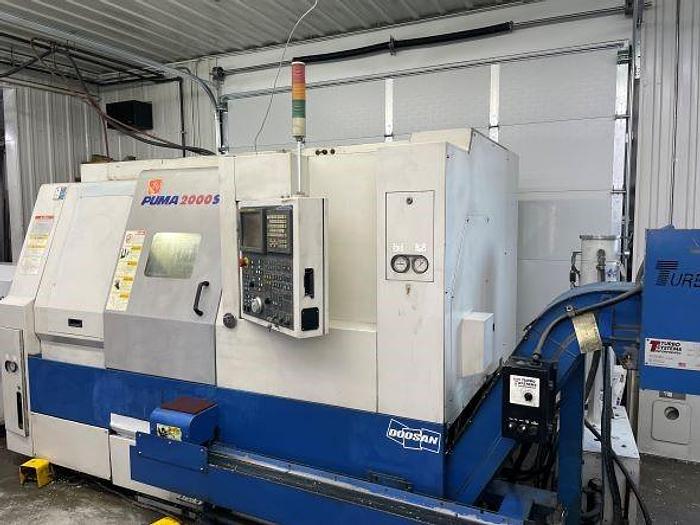

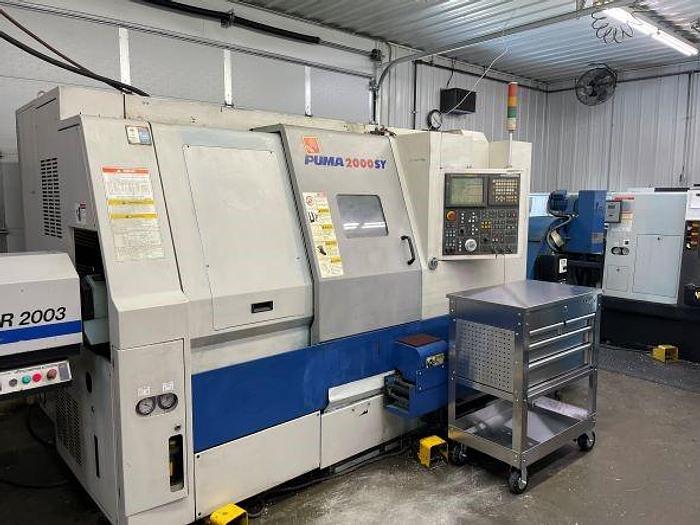

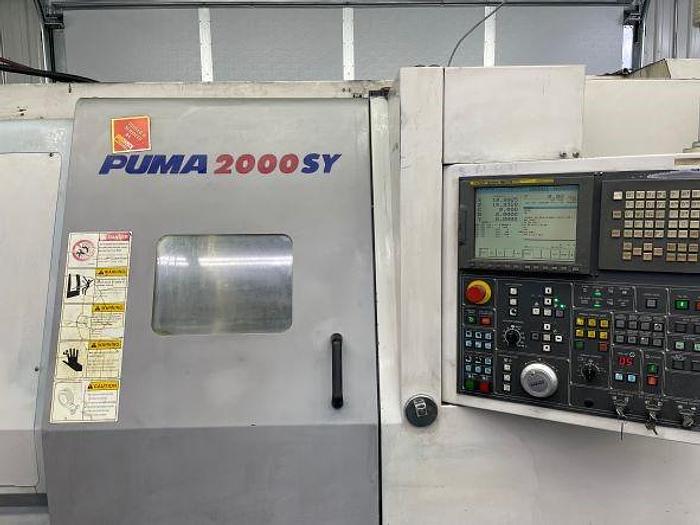

2007 Doosan/Daewoo Puma 2000SY
No longer available
2007 Doosan/Daewoo Puma 2000SY
Location:Illinois
Description
Chip Conveyor
Tool Eye
Parts Catcher
Parts Conveyor
Live Tooling
Y-Axis
Boxed Way Construction

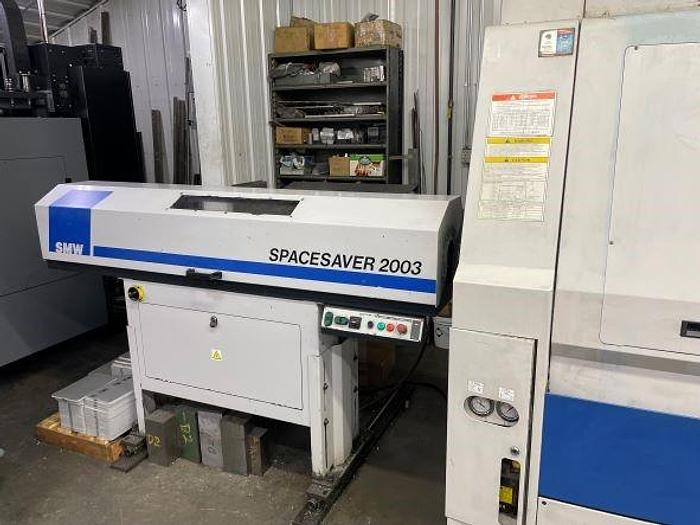

SMW Space Saver Barfeed

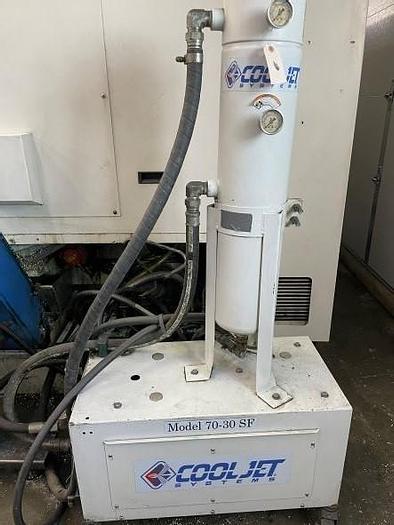

Cooljet Pressure Coolant Pump
All Available Manuals
**Collet Chucks in pictures do no go with the machine**
Specifications
| Manufacturer | Doosan/Daewoo |
| Model | Puma 2000SY |
| Year | 2007 |
| Condition | Used |
| Stock Number | 118000 |

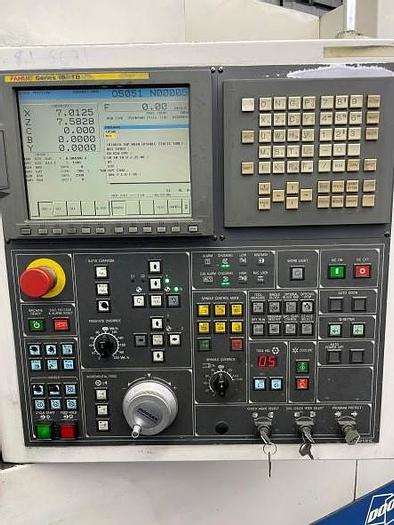

| Machine Control | Fanuc 18iTB |
| Chuck Sizes Main / Subspindle | 8" 3-Jaw / 6" 3-Jaw |
| Maximum Swing | 23.6" |
| Maximum Cutting Diameter | 13" |
| X-Axis Travel | 9.84" |
| Y-Axis Travel | 3.94" |
| Z-Axis Travel | 22.8" |
| Distance Between Spindles | 33.8" |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-6 / 3" / 2.6" |
| Spindle Speed | 6,000 RPM |
| Spindle Motor | 20 HP |
| Subspindle Nose / Bore / Bar Capacity | A2-5" / 1.77" / 1.5" |
| Subspindle Speed | 6,000 RPM |
| Subspindle Motor | 10 HP |
| Milling Spindle Speed | 5,000 RPM |
| Milling Spindle Motor | 5 HP |
| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates (X, Y, Z) | 788 IPM / 296 IPM / 945 IPM |
| Machine Dimensions LxWxH | 123"x77"x84" |
| Machine Weight | 11,000 lbs |
