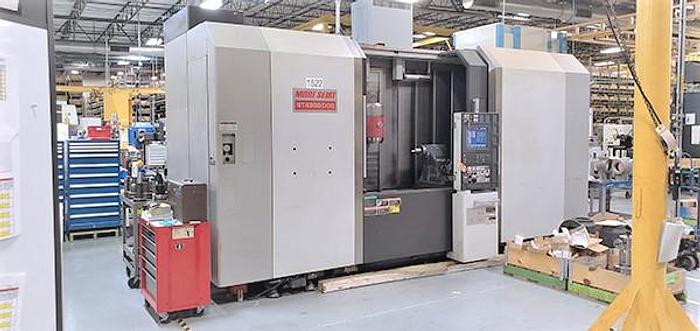

2008 Mori Seiki NT-4300 DCG-1500
2008 Mori Seiki NT-4300 DCG-1500
$164,500 (USD)
Illinois
Description
Full C Axis Spindle Rotation Live Milling/Drilling Capability Y Axis Capability B Axis Pendulum Style Head 12" 3 Jaw Hydraulic Chuck
Tailstock Chip Conveyor 100 Position Tool Changer
Tool Presetter
Cooljet Systems High Pressure Coolant
Rigid Tapping
Bell Shaped Acceleration/Deceleration after cutting feed
1st Spindle Output Switching Function
Controllable Axis Compensation
Simultaneous Axis Expansion
Helical Interpolation
Control Axis Number
Cylindrical Interpolation
Inch/Metric Selection
Nano Smoothing for 5 Axis Machining
Tool Geometry /Wear Offset
Work Coordinate System
3rd/4th Reference Return
Custom Macro B
High Speed Skip Function
Multiple Repetitive Cycle II
Pitch Error Compensation
Spindle Synchronous Control
Tool Offset for Milling and Turning Function
Y Axis Offset
Unexpected Disturbance Function
Thread Cutting Retract
Fixed Cycle
External Deceleration
Spindle Orientation
Straightness Compensation
Polar Coordinate Interpolation Complete Coolant System w/ Tank & Pumps
Card Interface RS 232 Port Interface
USB Port Interface
*Machine has a new B Axis milling spindle with no use since installation
*New Rotary Union
Specifications
Manufacturer | Mori Seiki |
Model | NT-4300 DCG-1500 |
Year | 2008 |
Condition | Used |
Stock Number | 117998 |
Control | Mori Seiki MSX-701II Control |
Maximum Swing | 28.74" |
Maximum Turning Diameter | 25.9" |
Maximum Turning Length | 58.98" |
Maximum Distance Between Centers | 69.2" |
Maximum Bar Capacity | 3.54" |
X-Axis Travel | 29.53" |
Y-Axis Travel | 8.27" |
Z-Axis Travel | 61.02" |
B-Axis Tilt Movement | +/- 120 Degrees in .0001 Degree Movement |
C-Axis Rotation | .001 Degree |
Spindle Nose / Spindle Bore | A2-8" / 4.13" |
Spindle Speed | 3,000 RPM |
Spindle Motor | 40 HP |
Milling Spindle Taper | Capto C6 |
Milling Spindle Speed / Milling Spindle Motor | 12,000 RPM / 24.7 HP |
Number of Tool Positions | 100 Station ATC |
Maximum Tool Diameter / Length / Weight | 5.5" / 15.7" / 22 lbs. |
Rapid Traverse Rates (X, Y, Z) | 1968 IPM / 1181 IPM / 1968 IPM |
Tailstock Body Travel / Tailstock Taper | 63.4" / MT #5 |
Tailstock Quill Diameter | 4.3" |
Machine Dimensions | 180" x 114" x 99" |
Machine Weight | 58,000 lbs. |
